Inspection-Report_TFSAFE_Full_ALQ26_SDP-1-N_113_05-06-26_1-2
CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-1-N_113_05-06-26_1-2
- Work Order
- TFS-ALQ26-2026-00004
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-1-N
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 05-JUN-2026
- Team
- 113
- Overall Rating
- Fair
- Location
- SDP-1-N is located on the north perimeter at rear of DFAC.
Summary of Findings
1 x 250A MCCB. 2 x 100A MCCB. 4 x 75A MCCB. All cabling, terminations and earthing arrangements inspected. No panel schedule. SDP panel door is damaged.

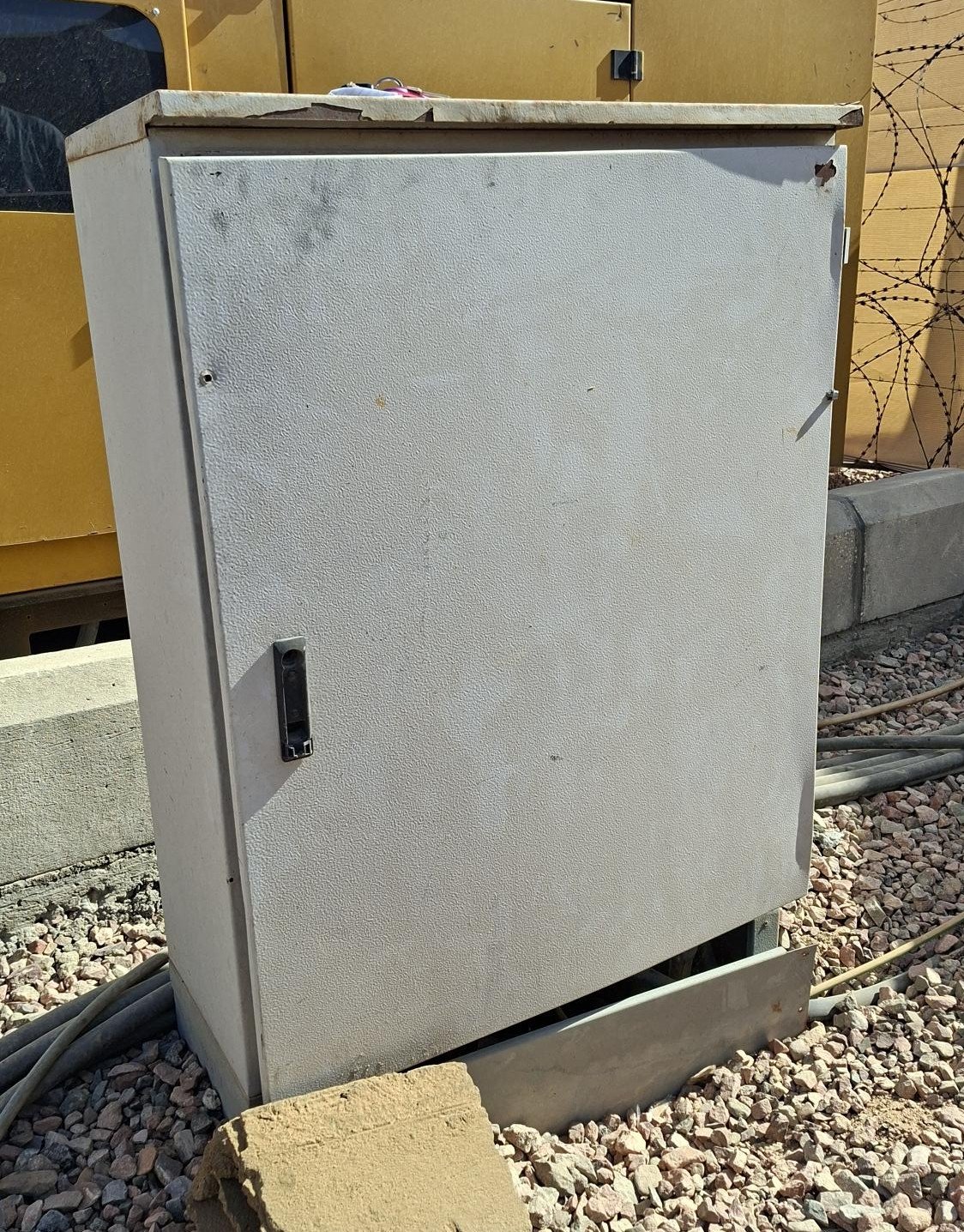

Building Picture
Deficiencies (2)
Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: Yes
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: CPC terminated.
SOR Issued To: Task Force SAFE

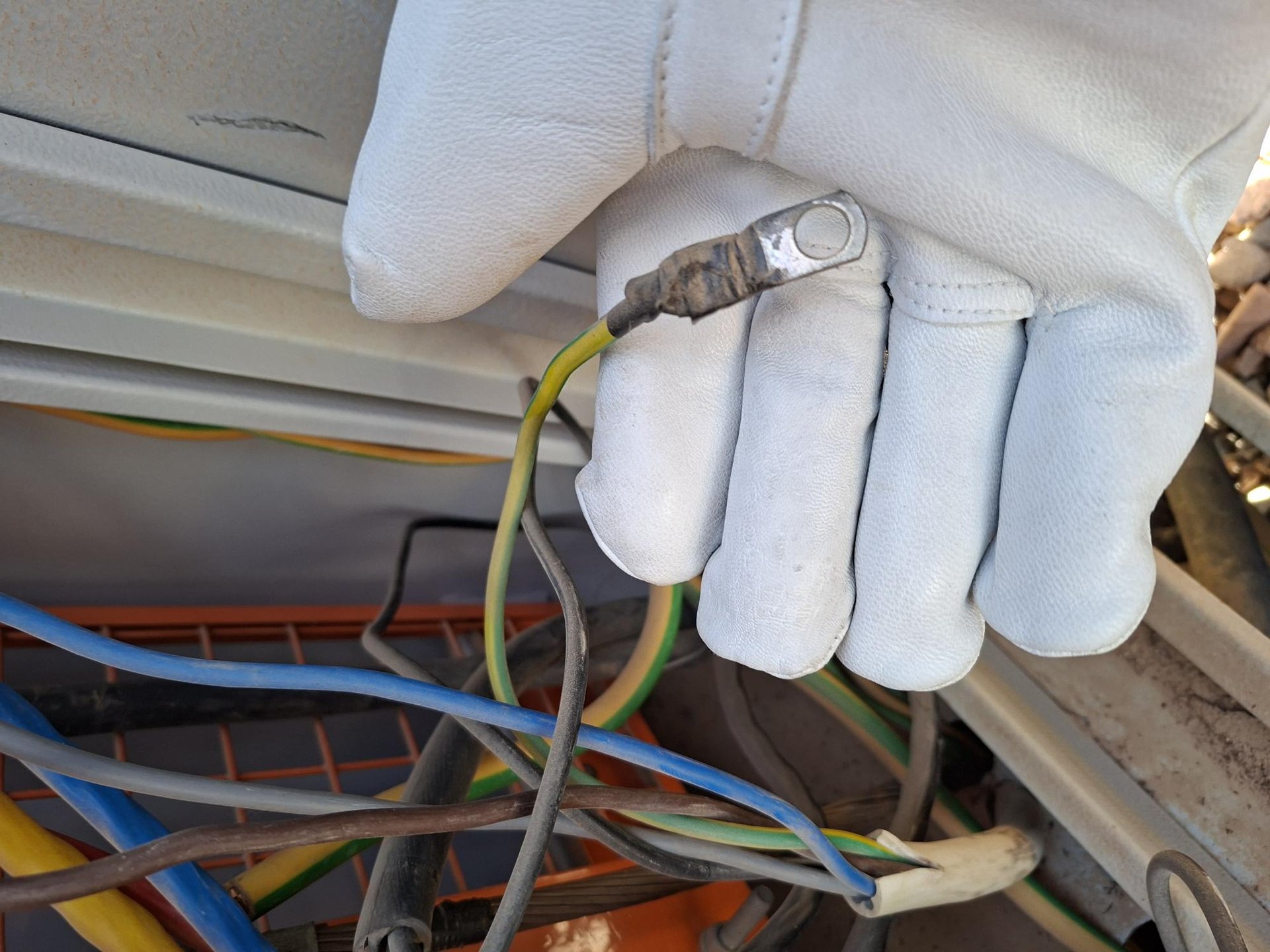

Description: CPC for coffee shop supply not terminated at SDP.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 3
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Oversized MCCB's. Circuit 2/TP and 4/TP, 16mm2 conductors fed from 75A MCCB. Circuit 4/TP. 6mm2 conductor fed from 75A MCCB.
Signatures & QC
Inspector 1: Giles Edwards
Inspector 2: Jon Sharp
QC: David Forbes (approved 05-JUN-2026)
Status History
2
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 05-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 05-JUN-2026 | Draft | Pending QC | Giles Vincent-Edwards |
