Inspection-Report_TFSAFE_Full_ALQ26_SDP-1-1-N_113_06-06-26_1-3
CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-1-1-N_113_06-06-26_1-3
- Work Order
- TFS-ALQ26-2026-00005
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-1-1-N
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 06-JUN-2026
- Team
- 113
- Overall Rating
- Fair
- Location
- SDP-1-1-N is located on the north perimeter behind the reefer units.
Summary of Findings
1 x 400A 3P MCCB. 3 x 40A 3P MCCB’s. 2 x 30A 3P MCCB’s. 1 x 60A 1P MCCB. 1 x 30A 1P MCCB. 4 x 20A 1P MCCB’s. 6 X 15A 1P MCCB’s. All cabling, terminations and earthing arrangements inspected. Panel schedule incorrect. Several cables are not crimped where terminated on neutral and earth bar.

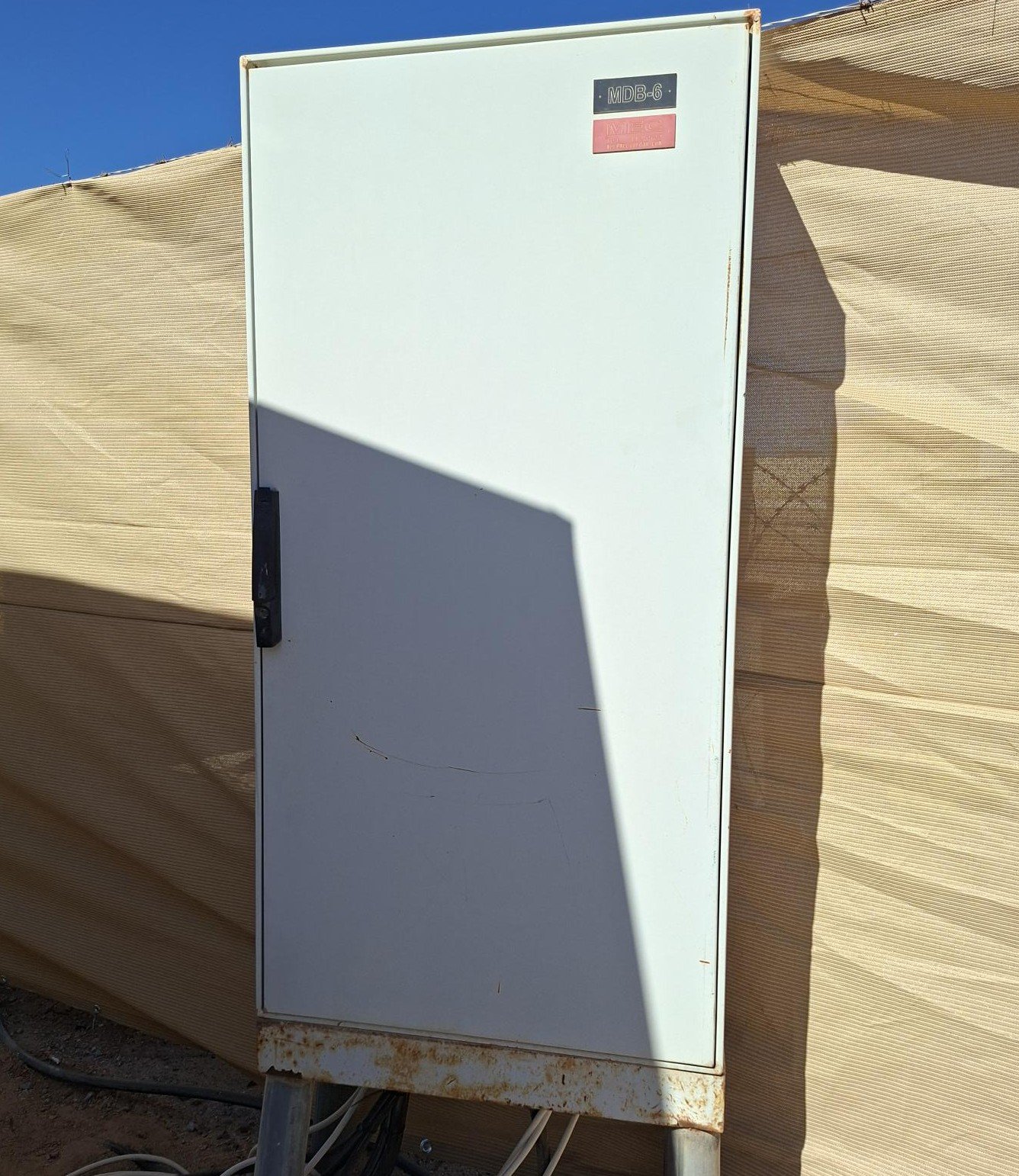

Building Picture
Deficiencies (3)
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: Task Force SAFE

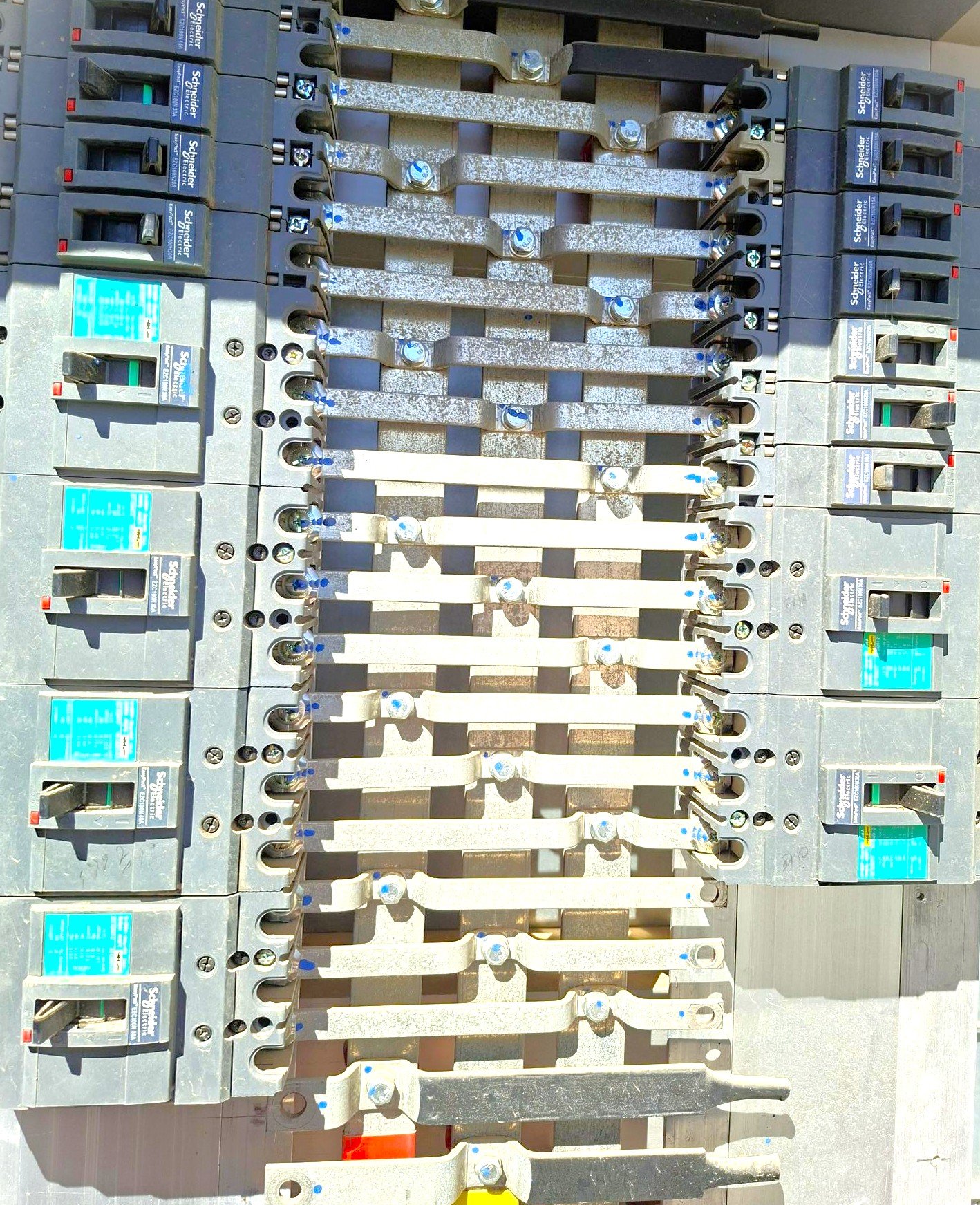

Description: SDP missing deadfront. Deadfront was located and installed.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider

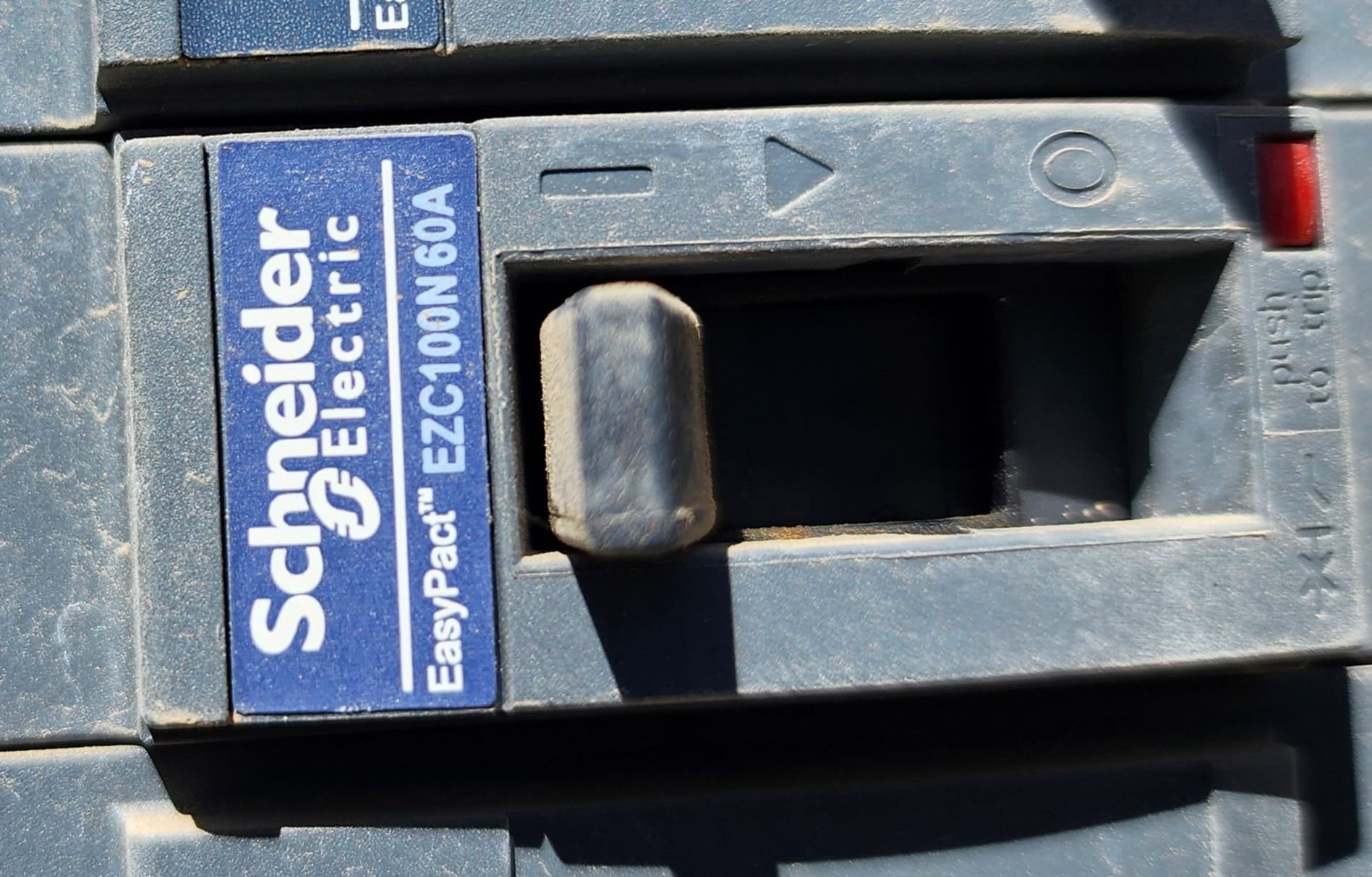

Description: Oversized. 10mm2 conductors fed from 60A 1P MCCB.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

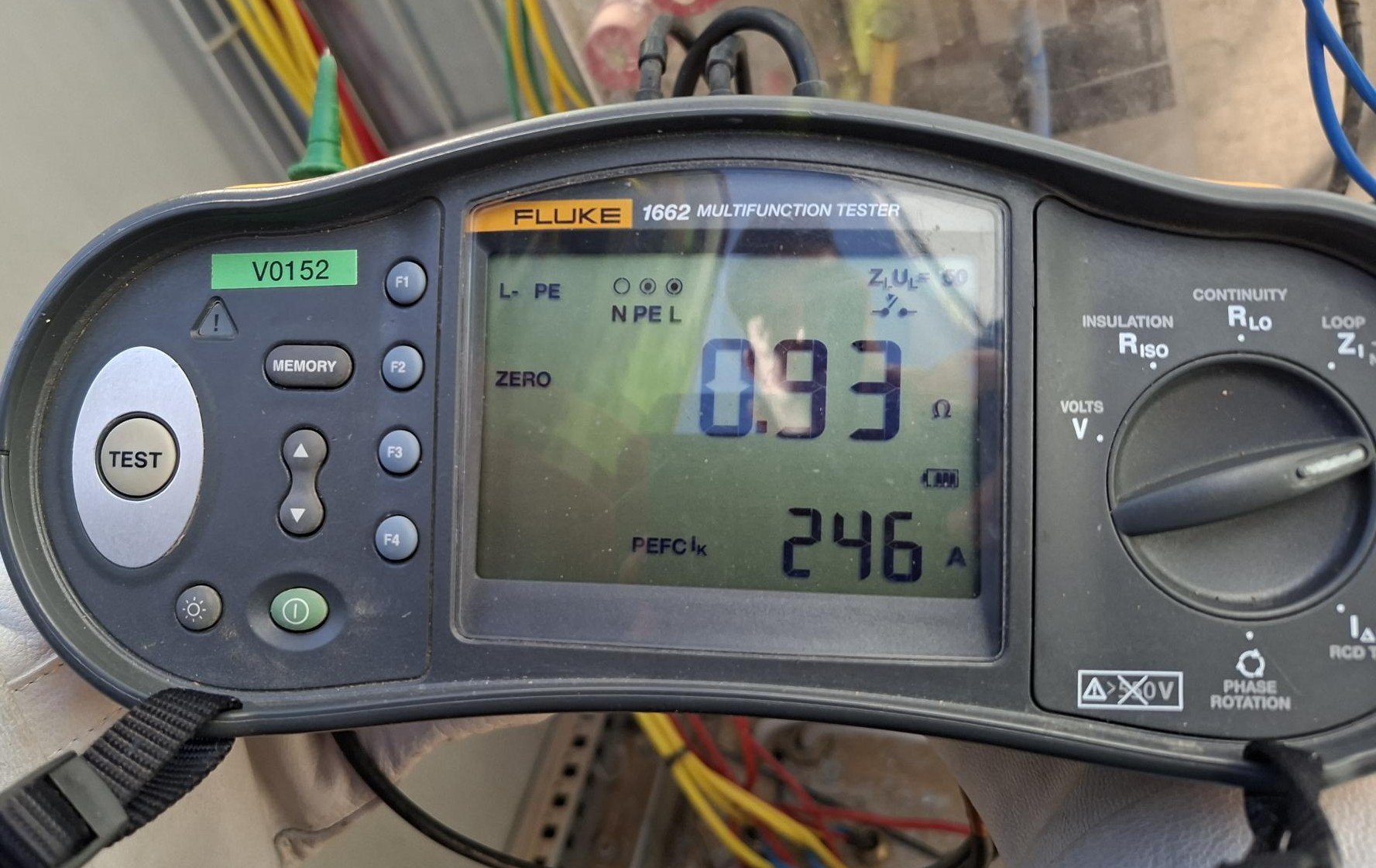

Description: Ze reading of 0.93 Ohms exceeds the maximum permitted tolerance of 0.8 Ohms.
Signatures & QC
Inspector 1: Giles Edwards
Inspector 2: Jon Sharp
QC: David Forbes (approved 08-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 08-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 08-JUN-2026 | QC Rejected | Pending QC | Giles Vincent-Edwards | |
| 08-JUN-2026 | Pending QC | QC Rejected | David Forbes | Deficiency 3; Category; Improper Use / Damaged used should be Grounding issues |
| 06-JUN-2026 | Draft | Pending QC | Giles Vincent-Edwards |
