Inspection-Report_TFSAFE_Full_ALQ26_SDP-1-2-E_113_08-06-26_1-9
CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-1-2-E_113_08-06-26_1-9
- Work Order
- TFS-ALQ26-2026-00006
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-1-2-E
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 08-JUN-2026
- Team
- 113
- Overall Rating
- Poor
- Location
- Located behind DFAC on the northeast perimeter.
Summary of Findings

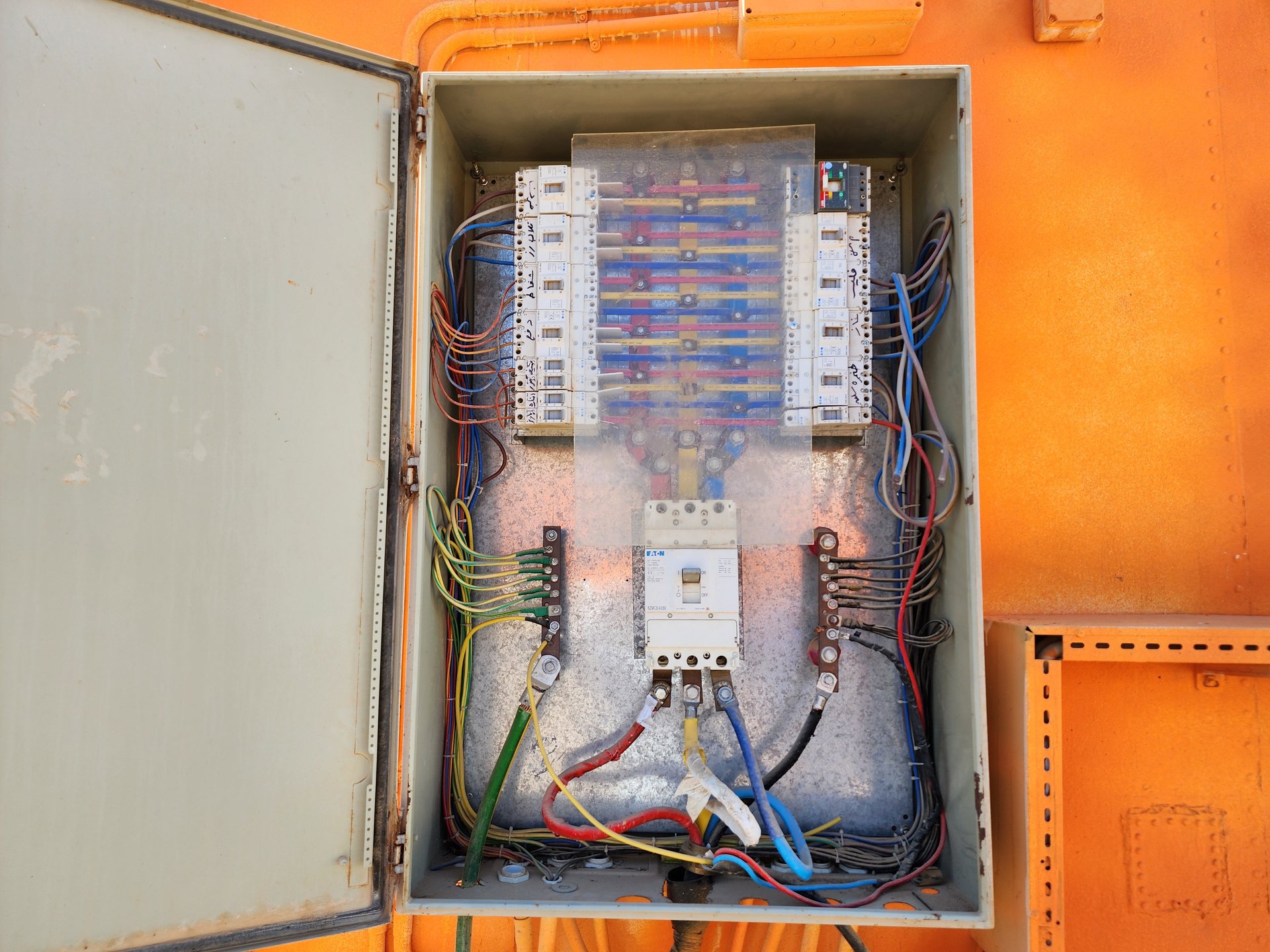

x 1 SDP. x 1 350A 3P MCCB. x 2 100A 3P MCCB’s. x 2 63A 3P MCCB’s. x 2 40A 3P MCCB’s. x 1 50A 1P MCCB. x 1 25A 3P MCCB. x 4 20A 1P MCCB’s. All cabling, terminations and earthing arrangements. Multiple outgoing circuits have not been crimped to MCCB's. Main earth is a 300mm2 single core conductor terminated to a ground rod, resulting in high Ze readings.

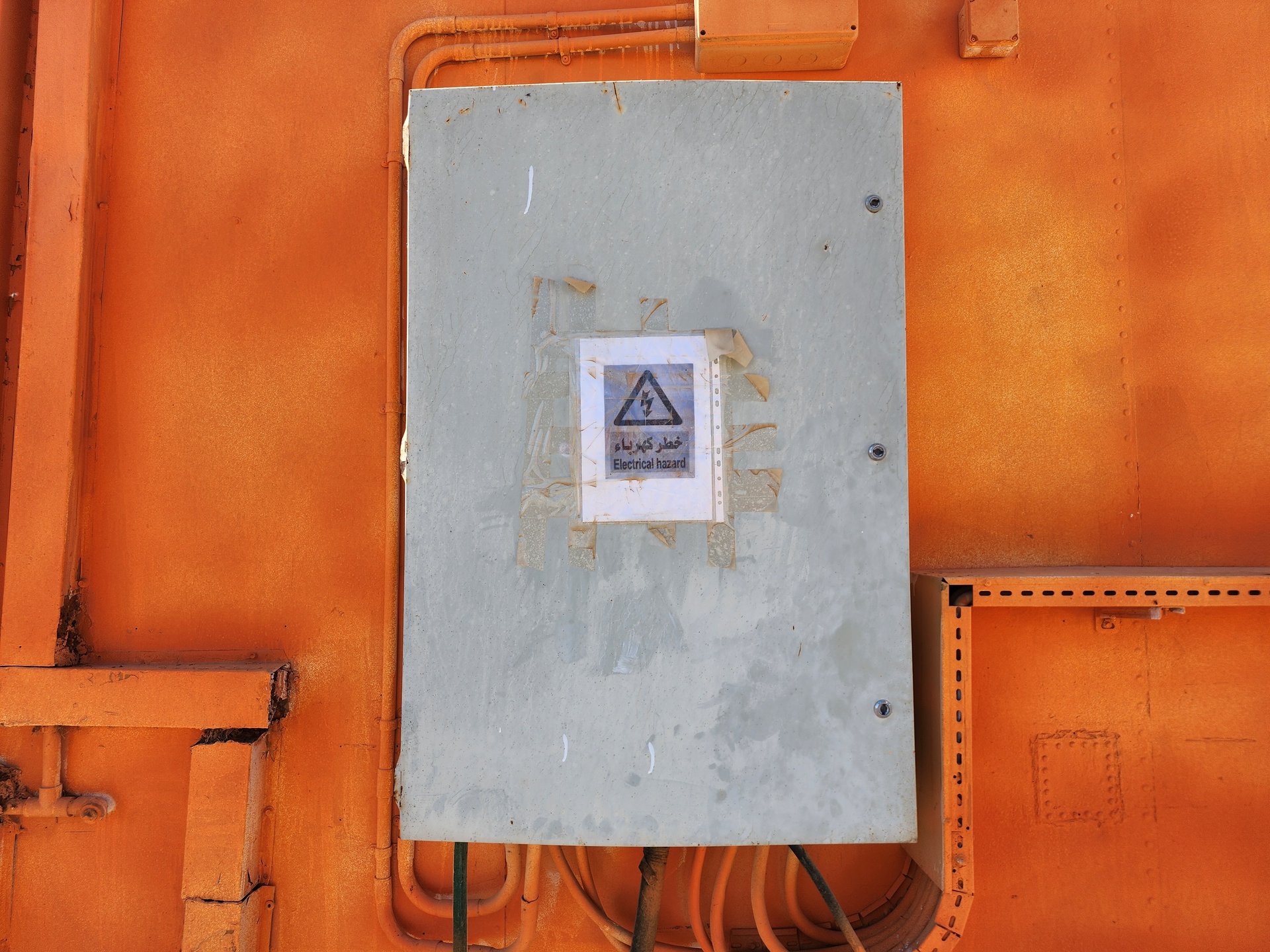

Building Picture
Deficiencies (9)
Location: Rear of kitchen.
Category: Unlisted Equipment
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: SDP is unlisted.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

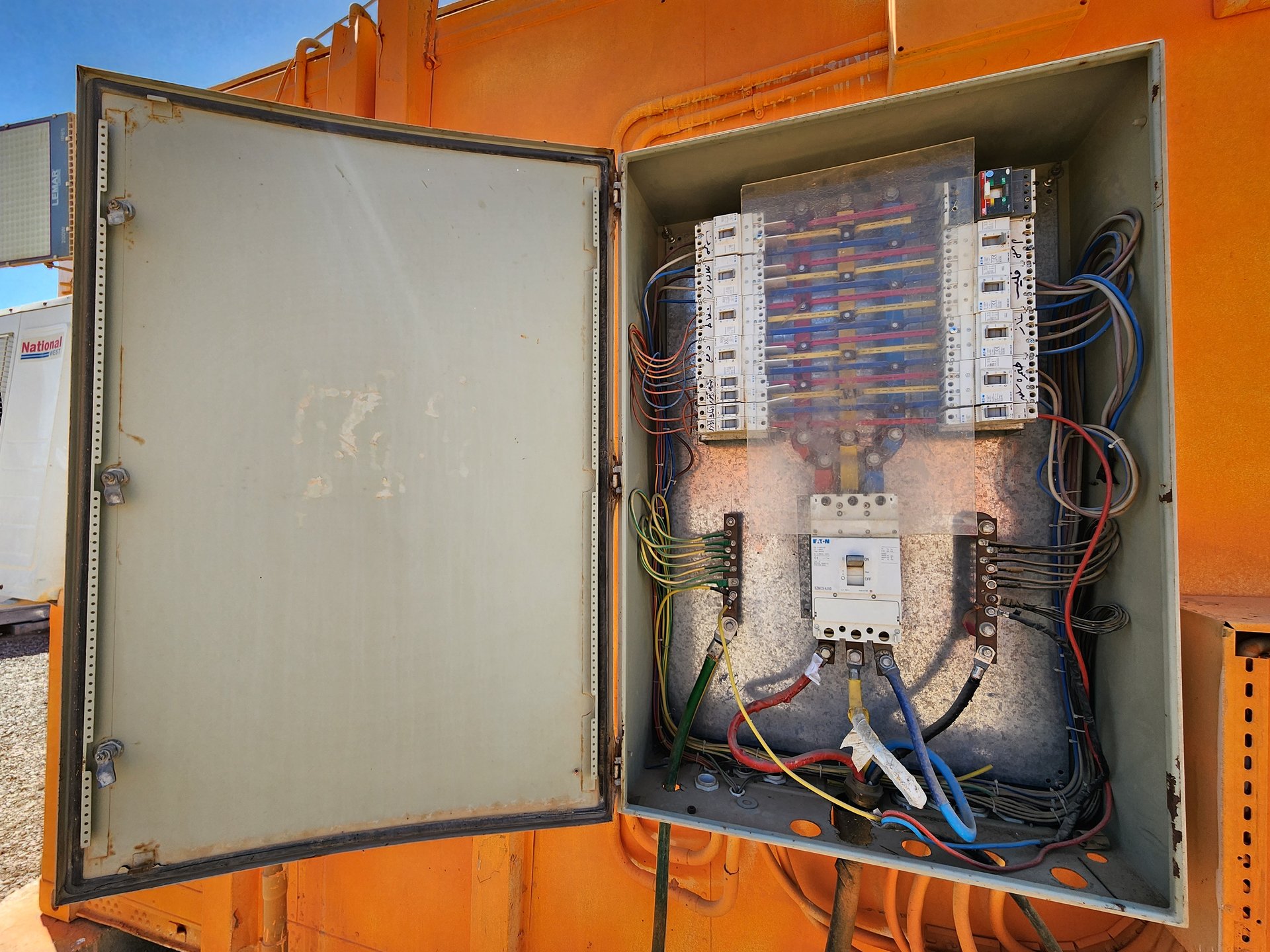

Description: The is no dead front within SDP. Door requires a key or a tool for access.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 5
Imminent Danger: No
Code Source: British Standard
Code Reference: 522: Selection and erection of wiring systems in relation to external influences
Action Taken: N/A
SOR Issued To: O&M Provider

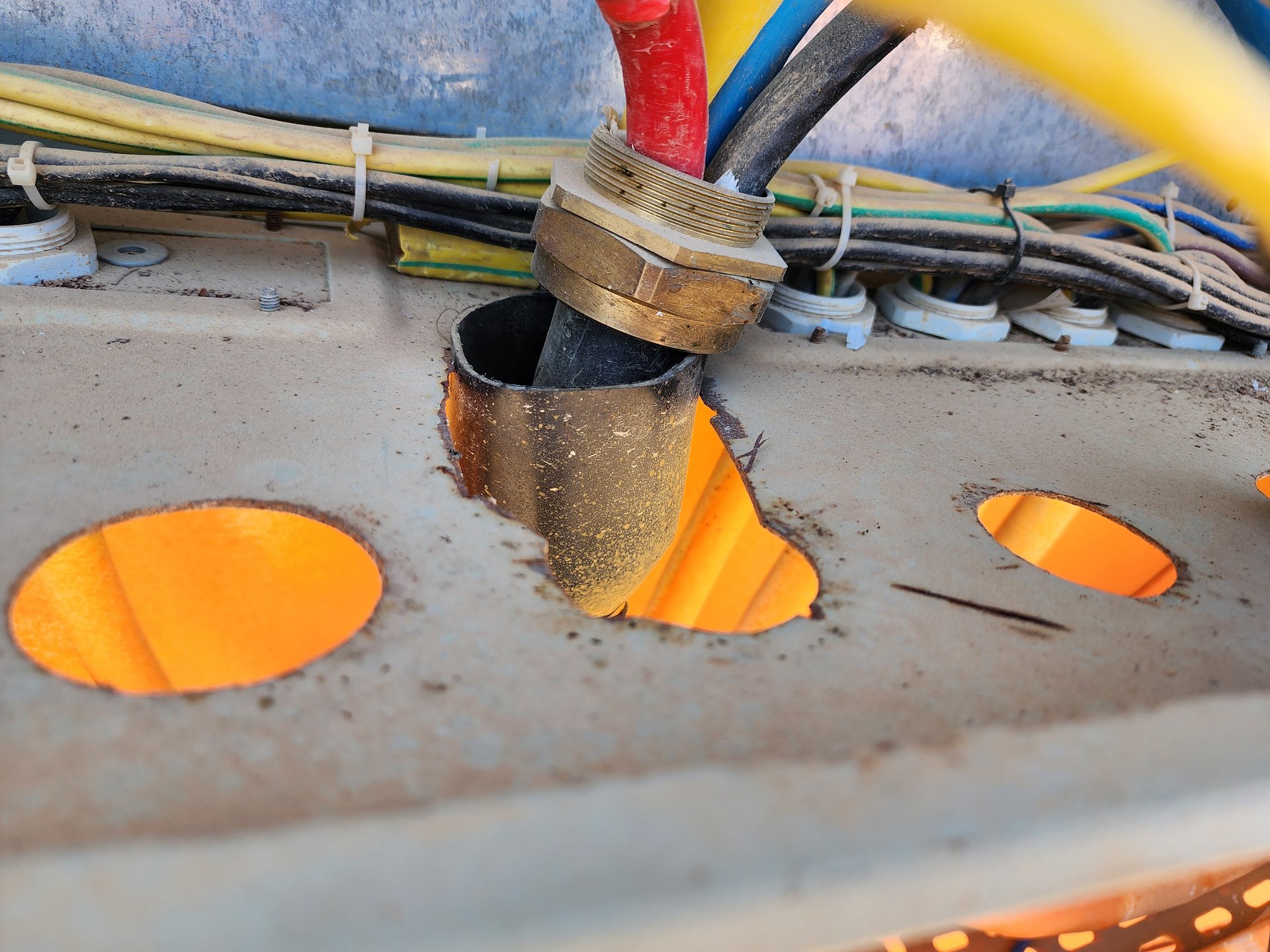

Description: Unused openings compromising integrity of IP rating.
Location: Within SDP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: O&M Provider

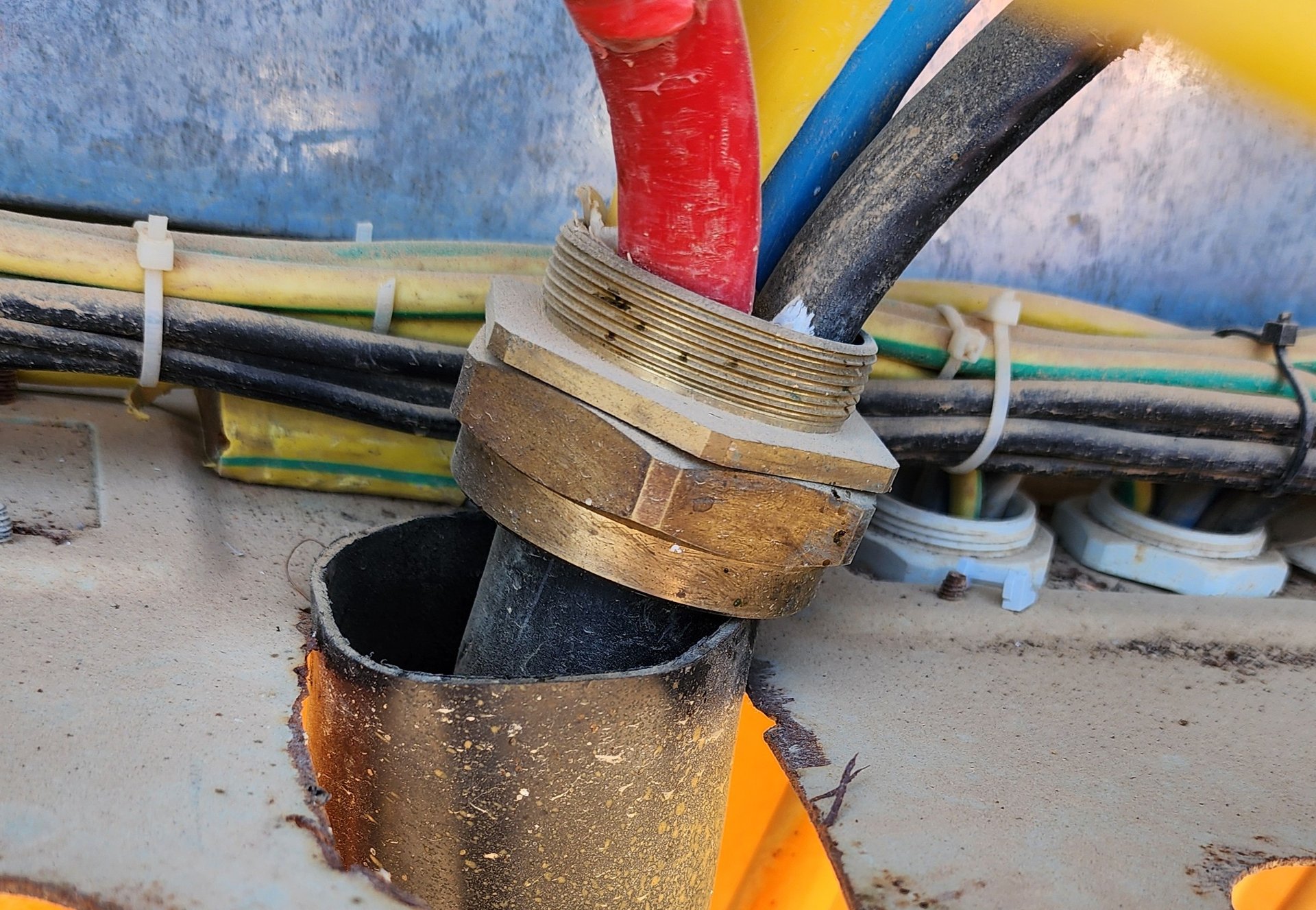

Description: SWA gland to main incoming supply cable is not fixed into position.
Location: Within SDP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: Task Force SAFE

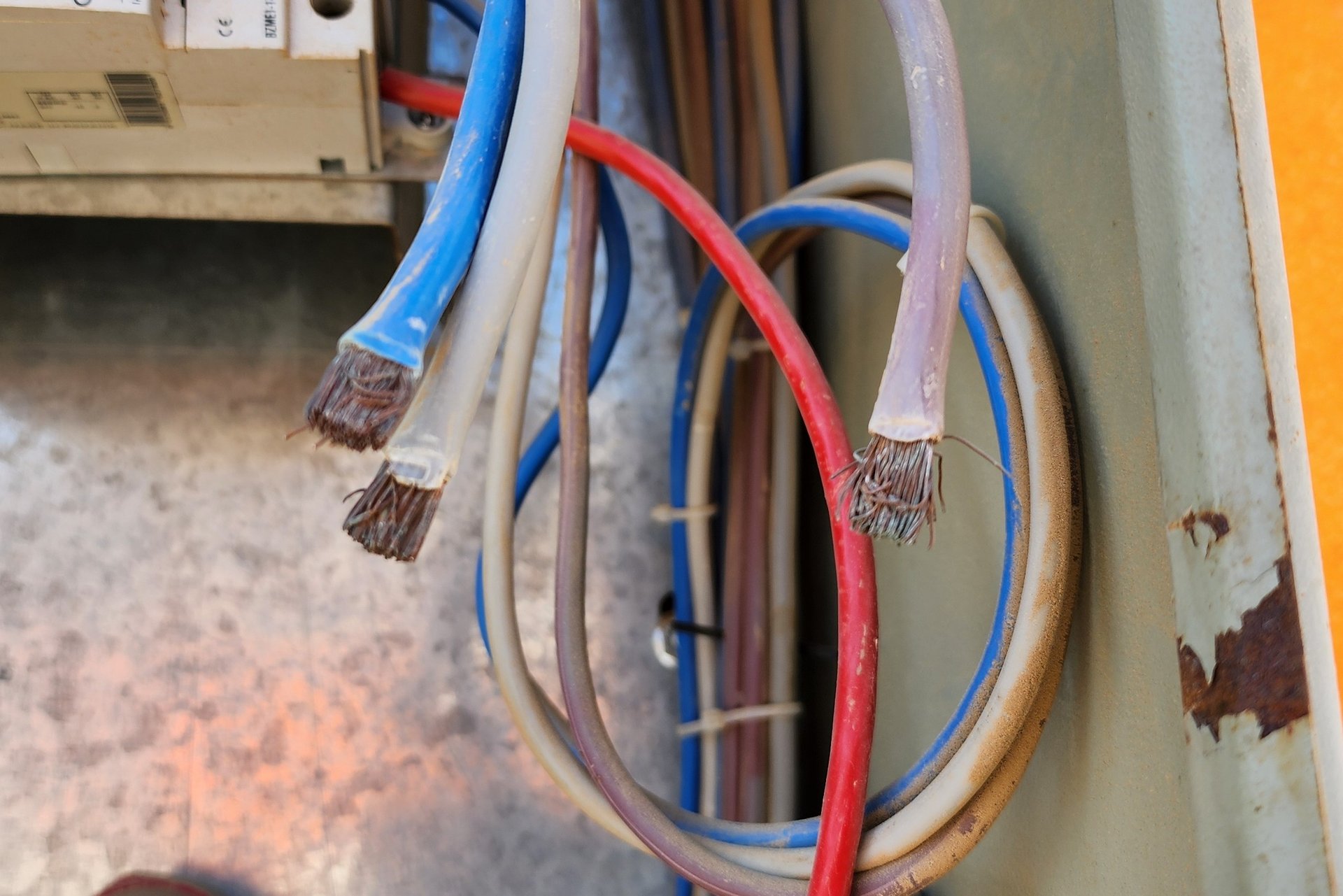

Description: Redundant outgoing circuit has bare ends left exposed. TF Safe made safe on the spot.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

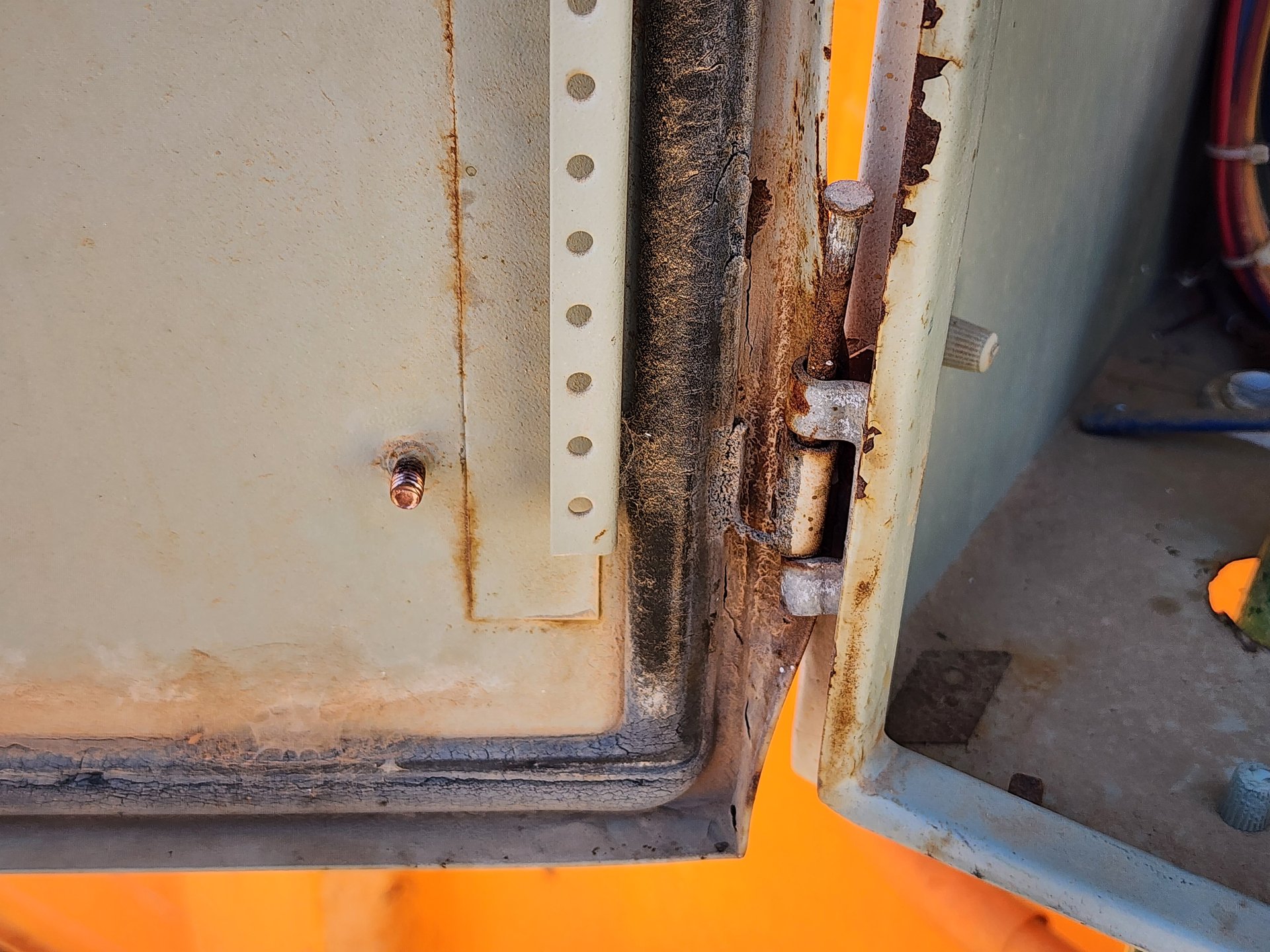

Description: No supplementary bond installed to door.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

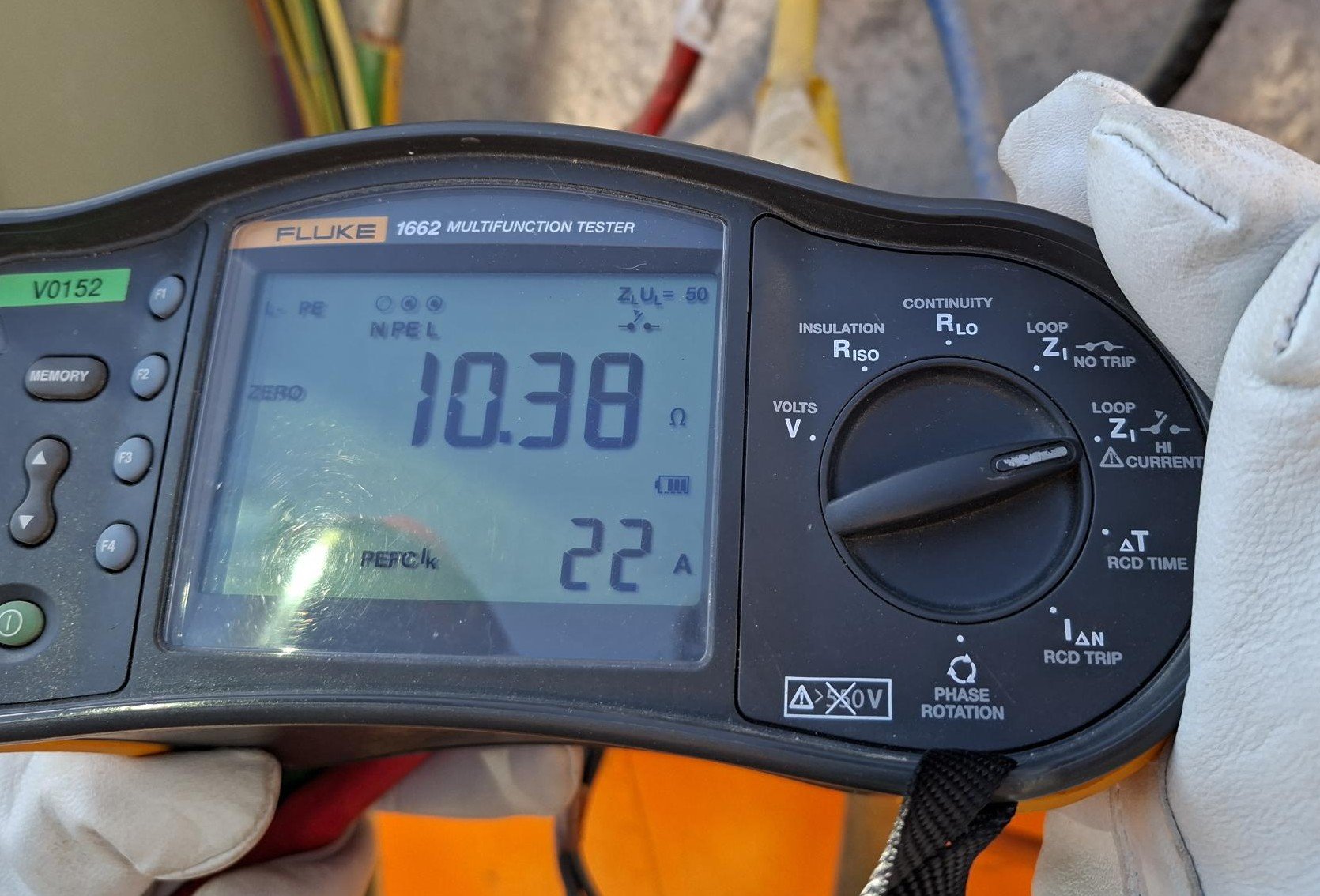

Description: Ze reading of 10.38 Ohms exceeds the maximum permitted tolerance of 0.8 Ohms.
Location: Below SDP.
Category: Grounding and Bonding
Equipment: GND
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

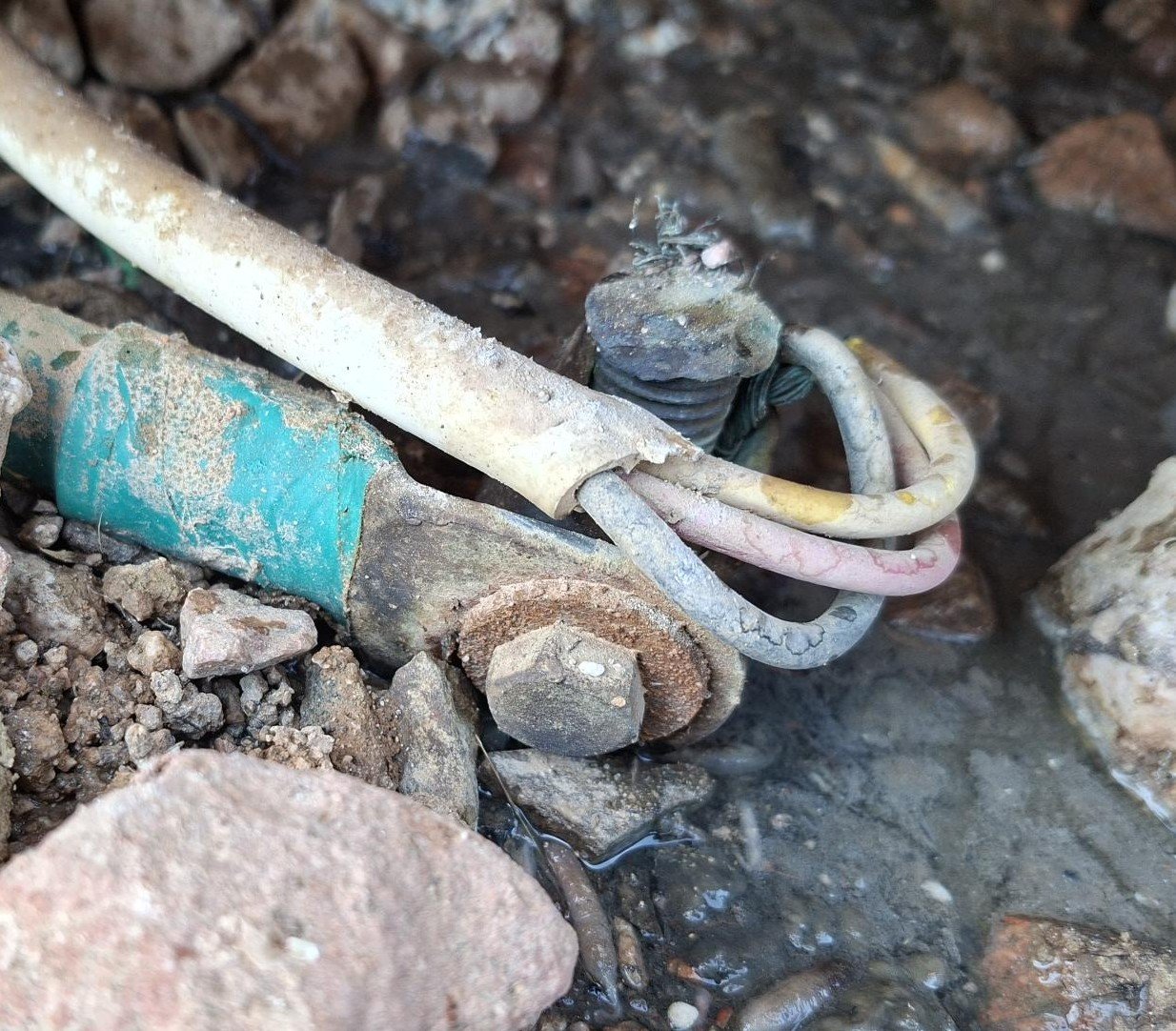

Description: CPC is terminated to ground electrode conductor.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 2
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider

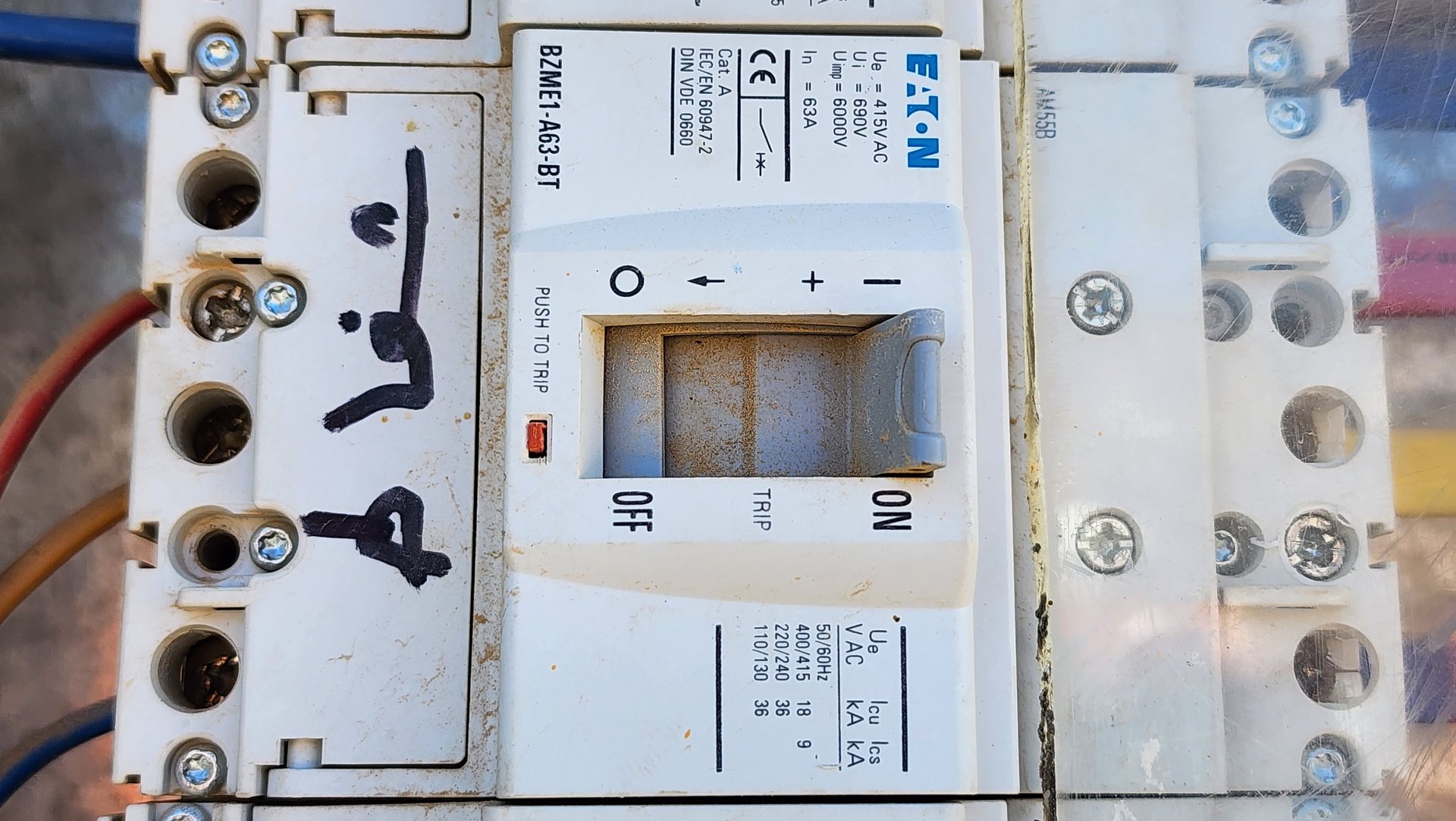

Description: Circuit 3/TP, 6mm2 conductors fed from 63A MCCB. Circuit 9/TP, 16mm2 conductors fed from 100A MCCB.
Signatures & QC
Inspector 1: Jon Sharp
Inspector 2: Giles Vincent-Edwards
QC: David Forbes (approved 10-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 10-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 10-JUN-2026 | QC Rejected | Pending QC | Jonathan Sharp | |
| 09-JUN-2026 | Pending QC | QC Rejected | David Forbes | Def 7; Category: Poor Workmanship needs changed to Grounding and Bounding issue |
| 08-JUN-2026 | Draft | Pending QC | - |
