Inspection-Report_TFSAFE_Full_ALQ26_SDP-2-E_113_09-06-26_1-8
CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-2-E_113_09-06-26_1-8
- Work Order
- TFS-ALQ26-2026-00007
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-2-E
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 09-JUN-2026
- Team
- 113
- Overall Rating
- Poor
- Location
- Located behind DFAC on the northeast perimeter.
Summary of Findings
x 1 SDP. x 1 400A 3P MCCB. x 1 100A 3P MCCB. x 8 60A 3P MCCB's. x 3 30A 1P MCCB's. All cabling, terminations and earthing arrangements. Some outgoing conductors have not been terminated using lugs. Ze readings are high at 0.62 Ohms but still within the maximum permitted tolerance of 0.8 Ohms for a TN-S system.

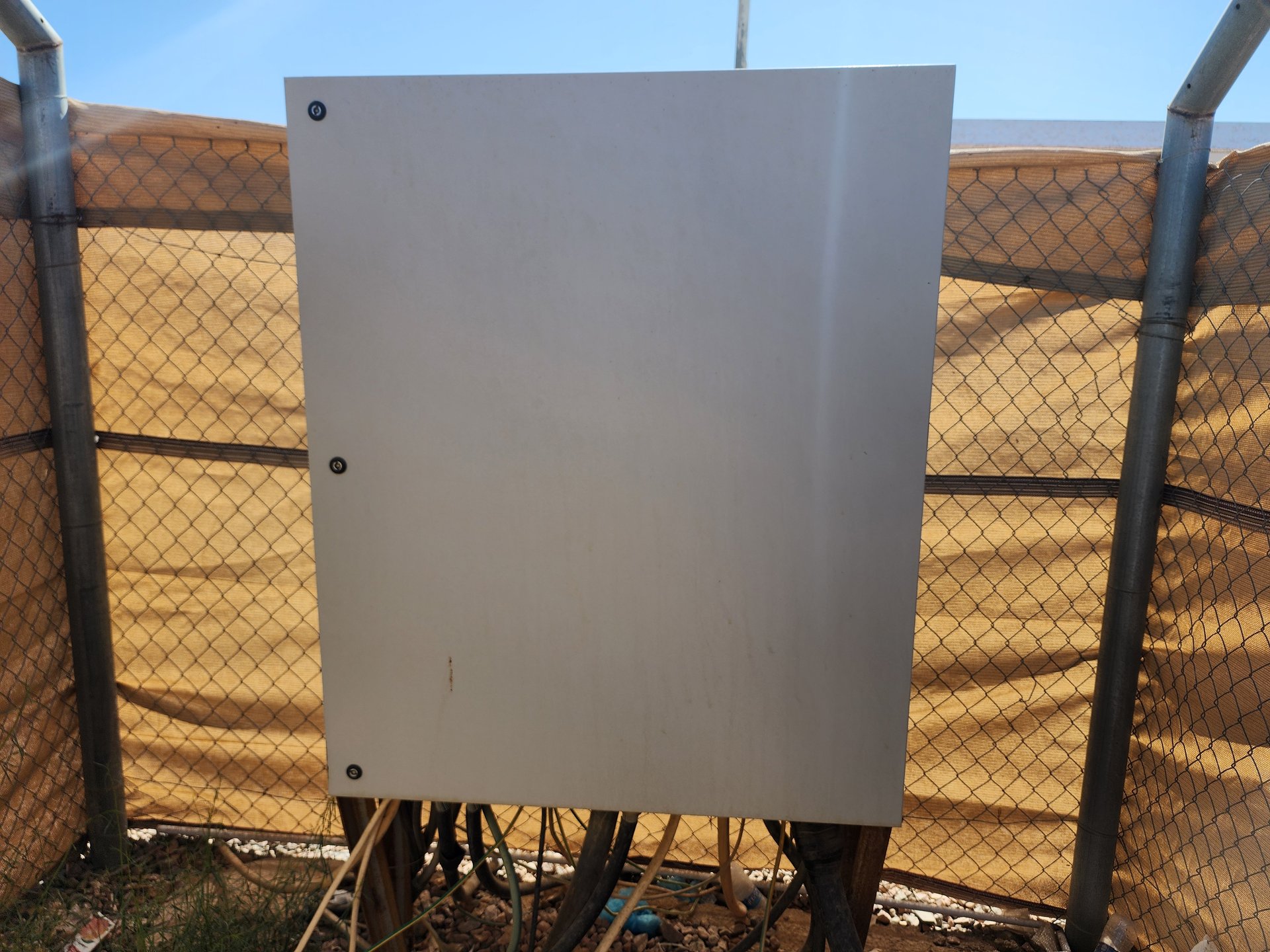

Building Picture
Deficiencies (8)

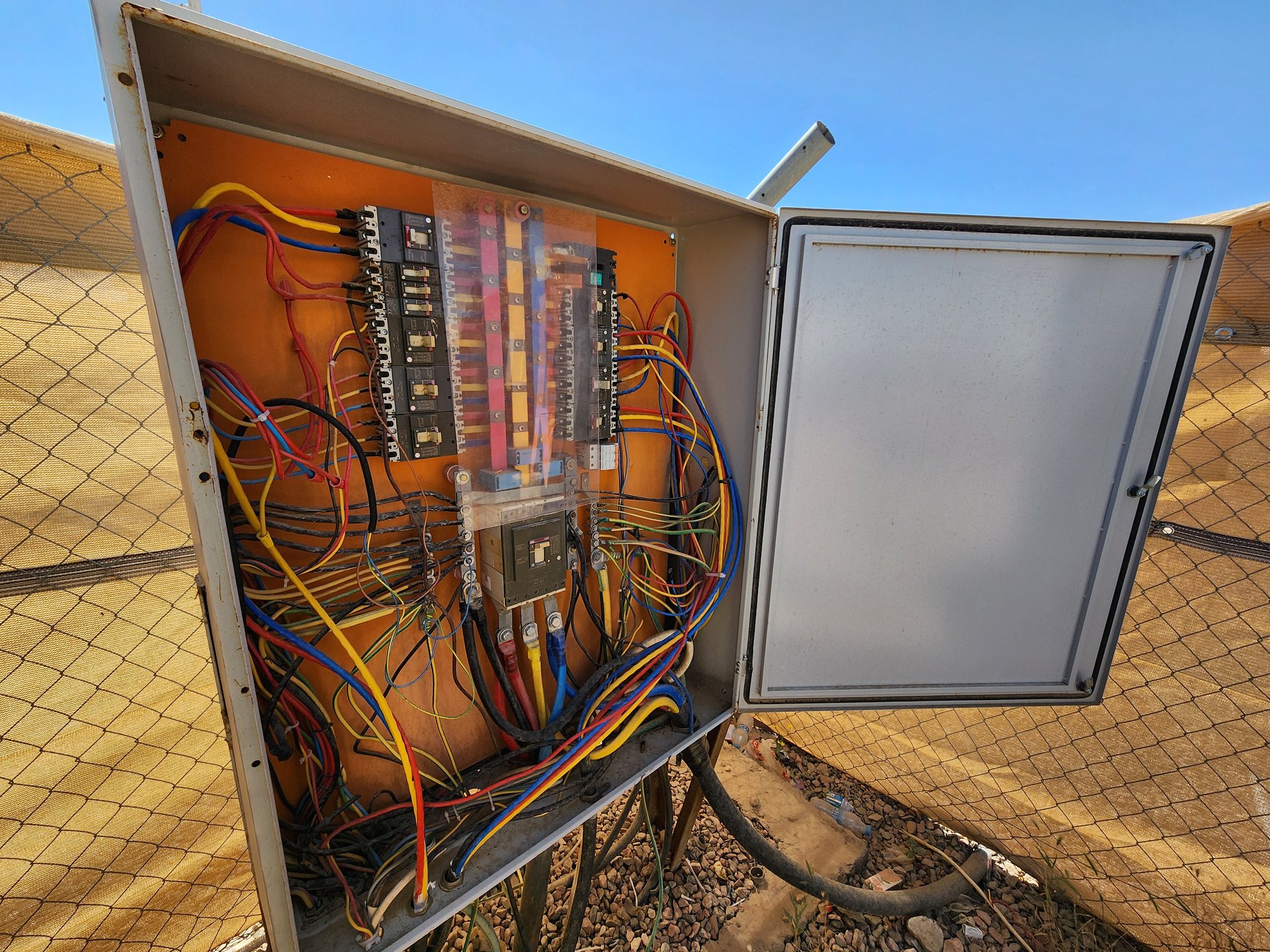

Location: Northeast perimeter behind kitchen.
Category: Unlisted Equipment
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: SDP-2-E is unlisted.

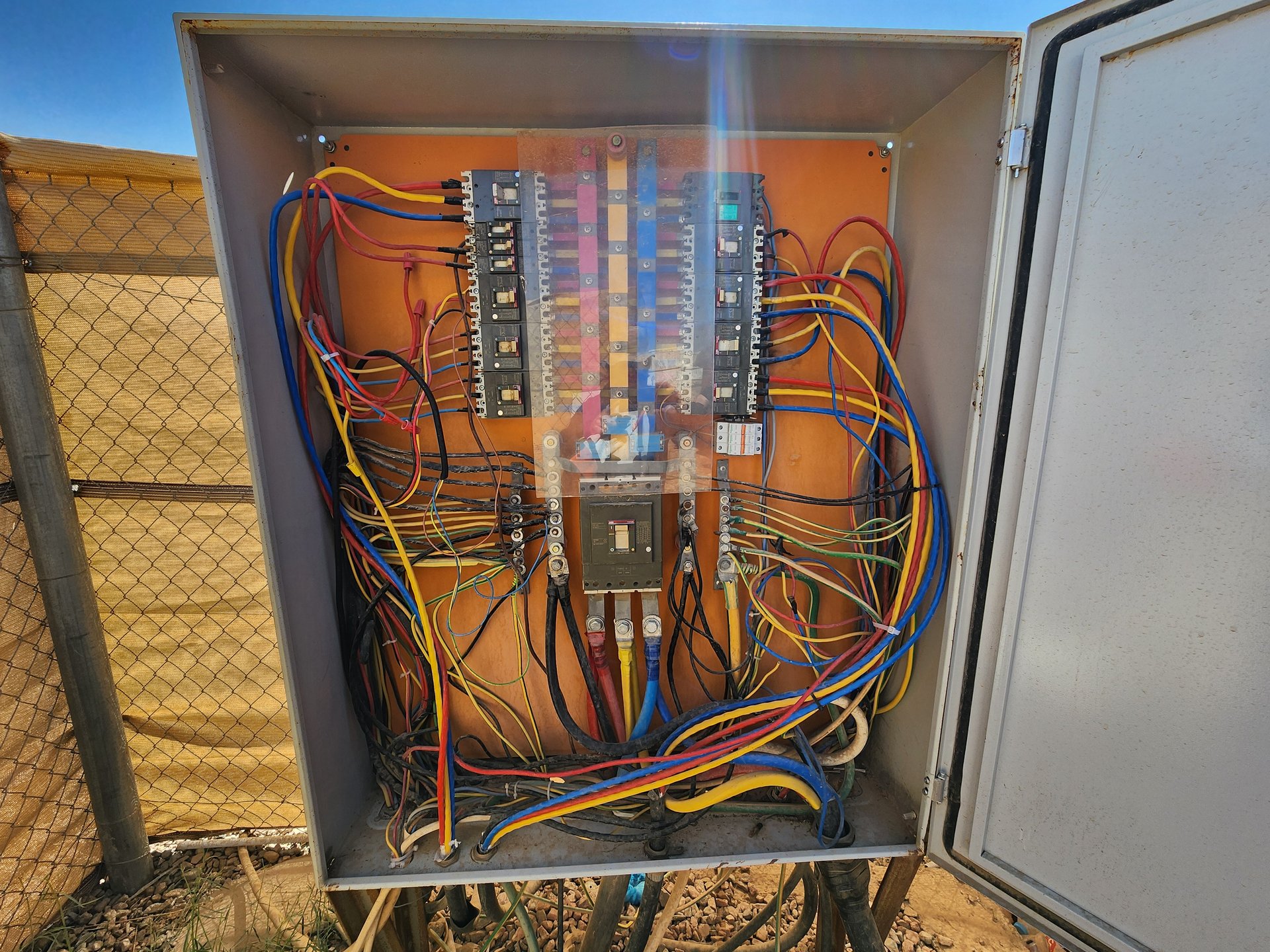

Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No dead front present within SDP. Access requires a key or a tool.

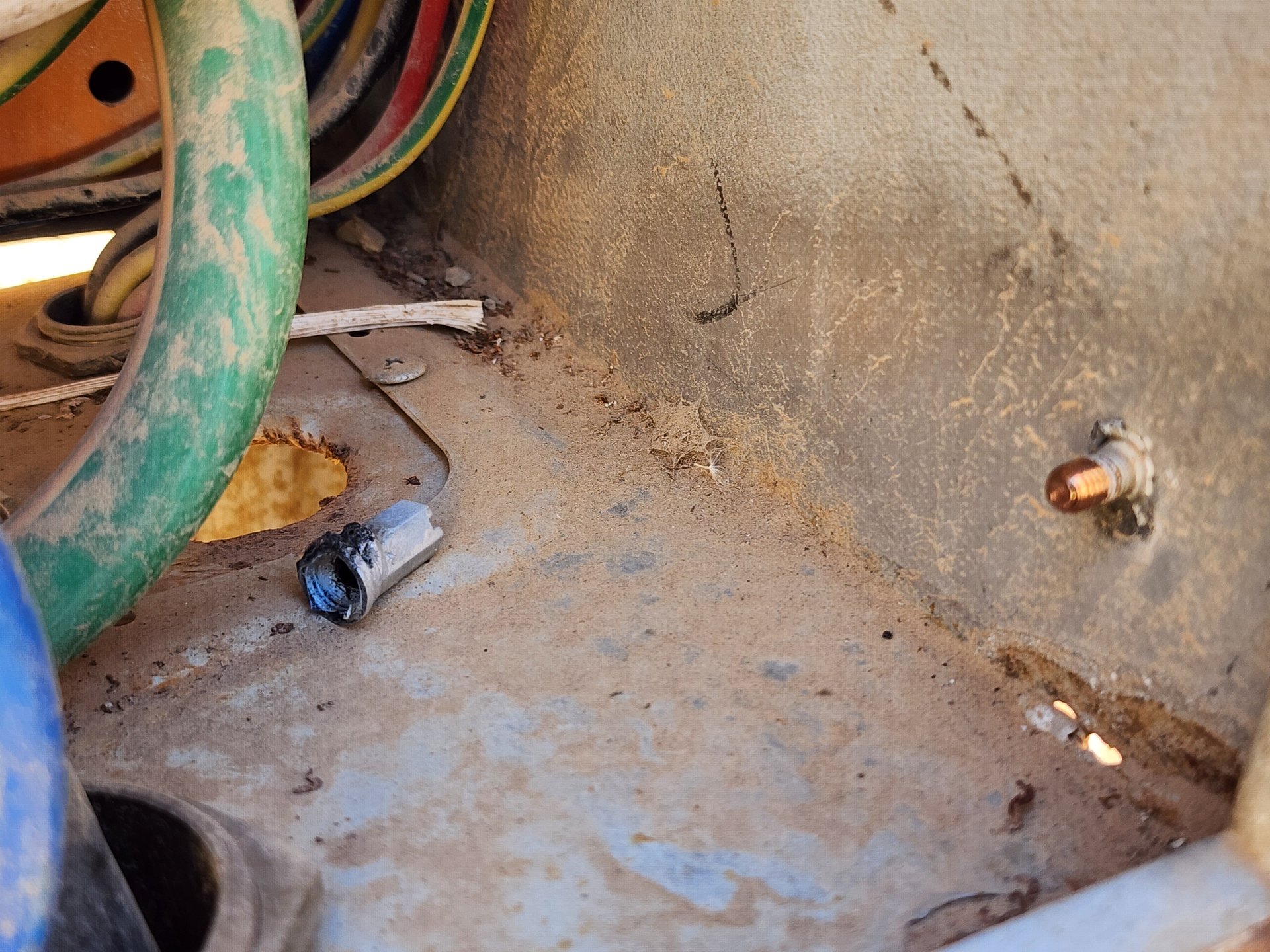

Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No supplementary bond present to enclosure.

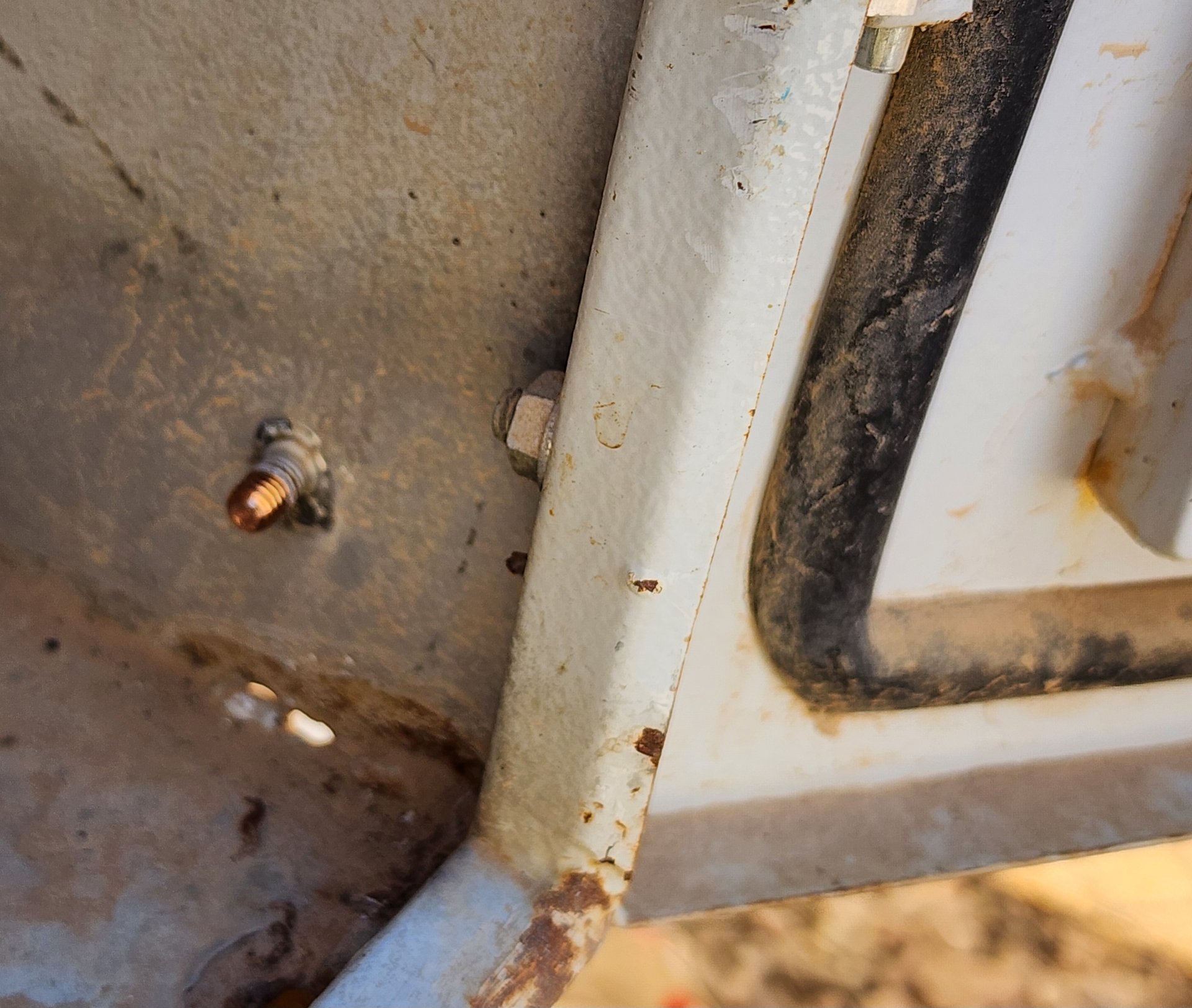

Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No supplementary bond present to door.
Location: Within SDP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: Task Force SAFE
Description: Redundant exposed live conductors have been left terminated to the outgoing side of overcurrent protective devices.

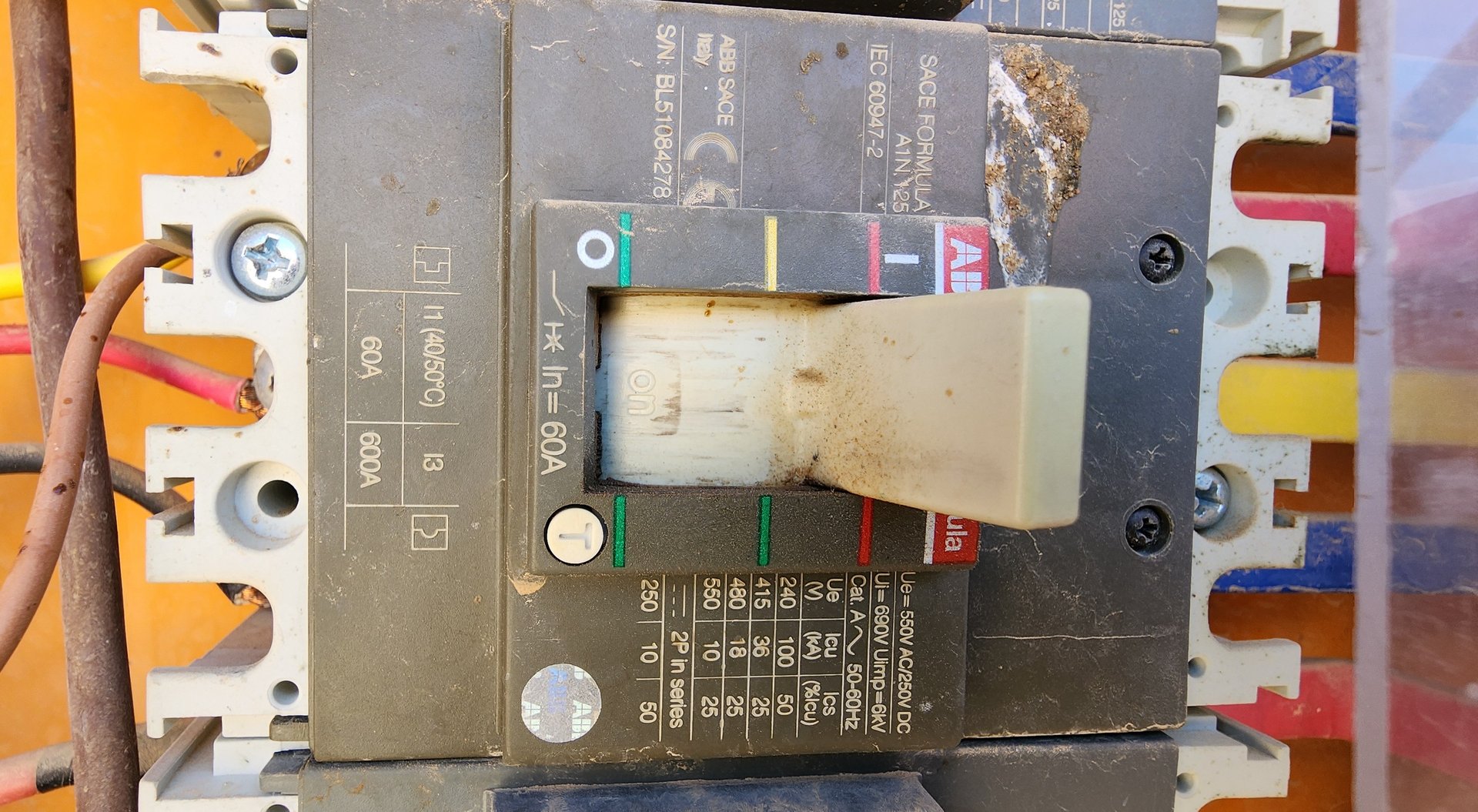

Location: Within SDP, circuit 3/TP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 2
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider
Description: 6mm2 and 2.5mm2 conductors fed from the same 60A MCCB.

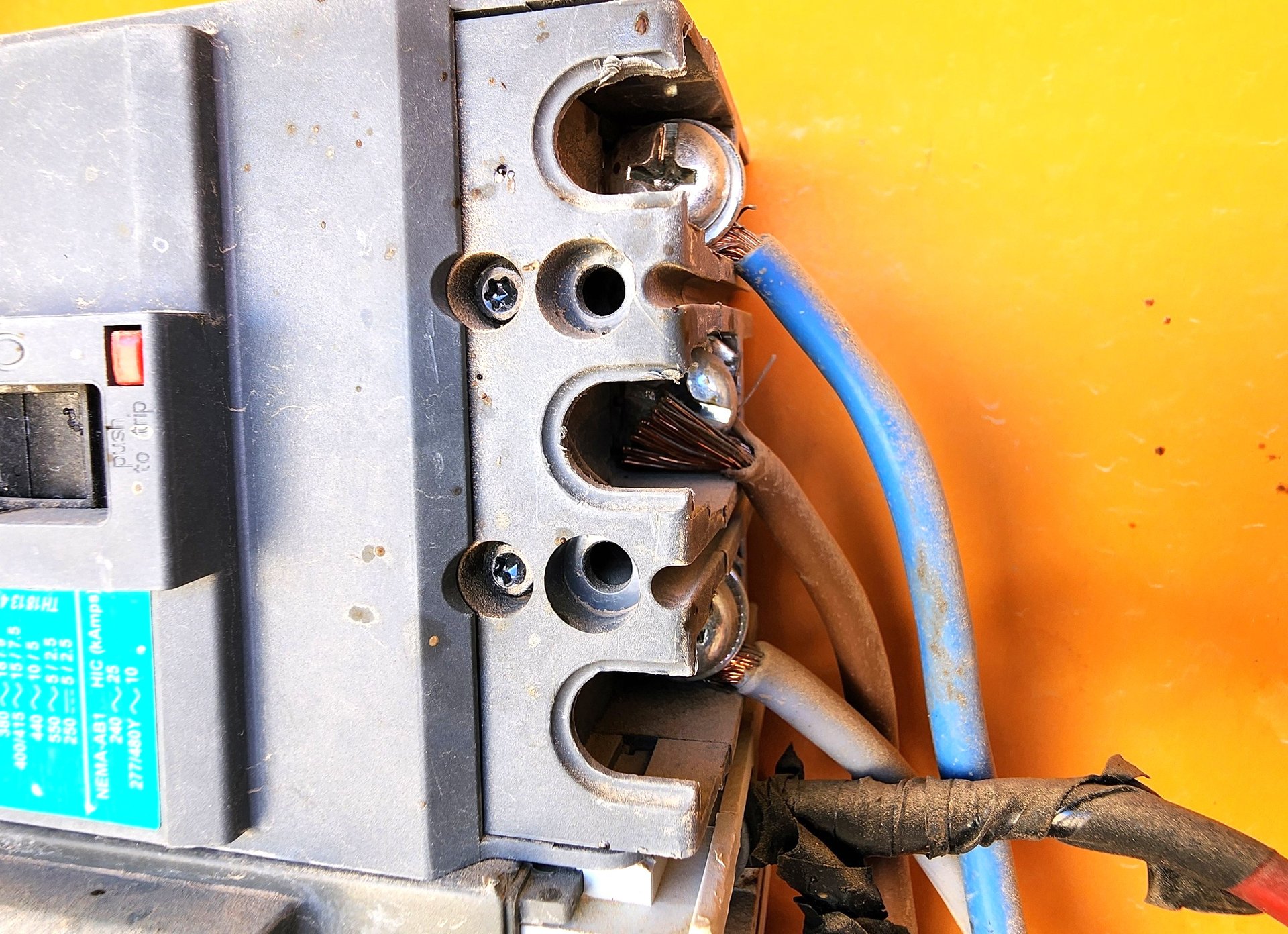

Location: Within SDP, circuit 6/TP.
Category: Improper Terminations
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 526: Electrical connections
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Outgoing conductor L2 is only 50% captured under terminal screw.

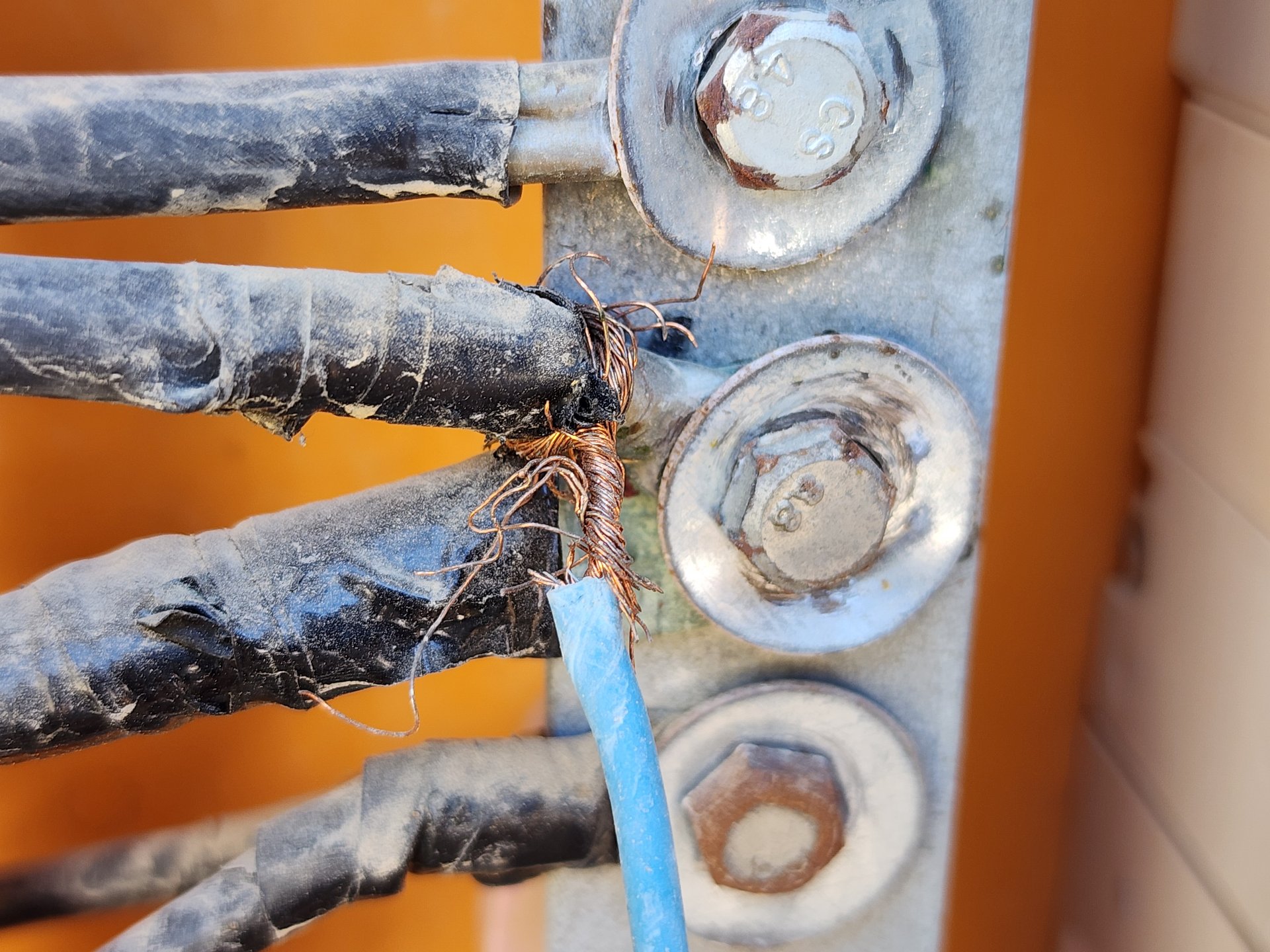

Location: Within SDP, circuit 3/TP, neutral conductor.
Category: Improper Terminations
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 526: Electrical connections
Action Taken: N/A
SOR Issued To: O&M Provider
Description: The neutral conductor has been wrapped around the neutral bar to form a connection.
Signatures & QC
Inspector 1: Jon Sharp
Inspector 2: Giles Vincent-Edwards
QC: David Forbes (approved 10-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 10-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 10-JUN-2026 | QC Rejected | Pending QC | Jonathan Sharp | |
| 09-JUN-2026 | Pending QC | QC Rejected | David Forbes | Def 6; Category; Poor workmanship used needs changed to improper use / damaged |
| 09-JUN-2026 | Draft | Pending QC | - |
