Inspection-Report_TFSAFE_Full_ALQ26_SDP-2-2-E_113_11-06-26_1-8
CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-2-2-E_113_11-06-26_1-8
- Work Order
- TFS-ALQ26-2026-00009
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-2-2-E
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 11-JUN-2026
- Team
- 113
- Overall Rating
- Poor
- Location
- Located opposite water tanks on the northeast perimeter, within LSS food prep area.
Summary of Findings
x 1 SDP. x 630A MCCB. x 6 63A 3P MCCB's. x 2 63A 1P MCCB's. x 1 60A 1P MCCB. All cabling, terminations and earthing arrangements. Multiple outgoing circuits have not been crimped to MCCB's. Earth path is by way of steel wire armouring. Ze readings are high but still within the maximum permitted tolerance of 0.8 Ohms.

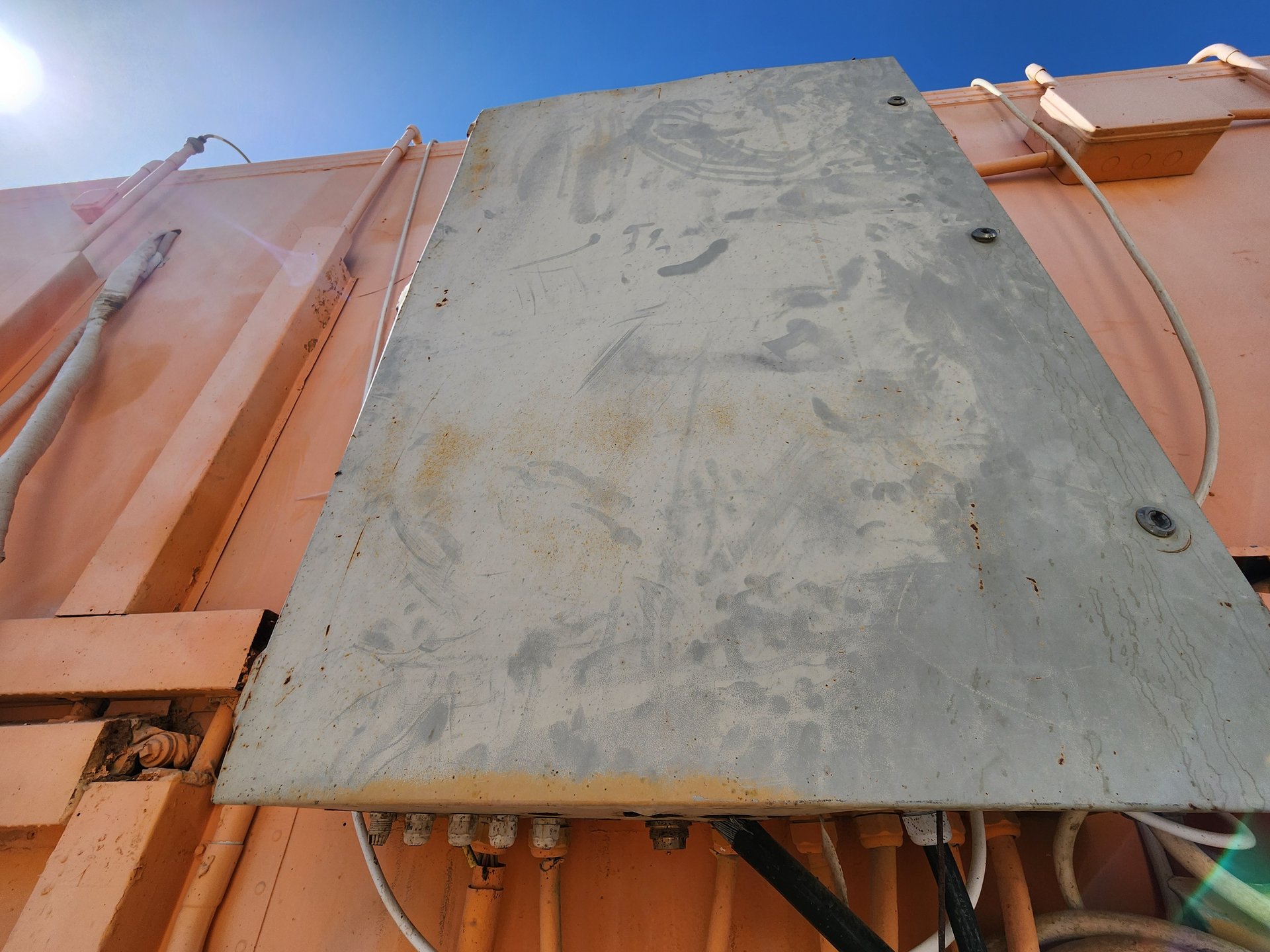

Building Picture
Deficiencies (8)

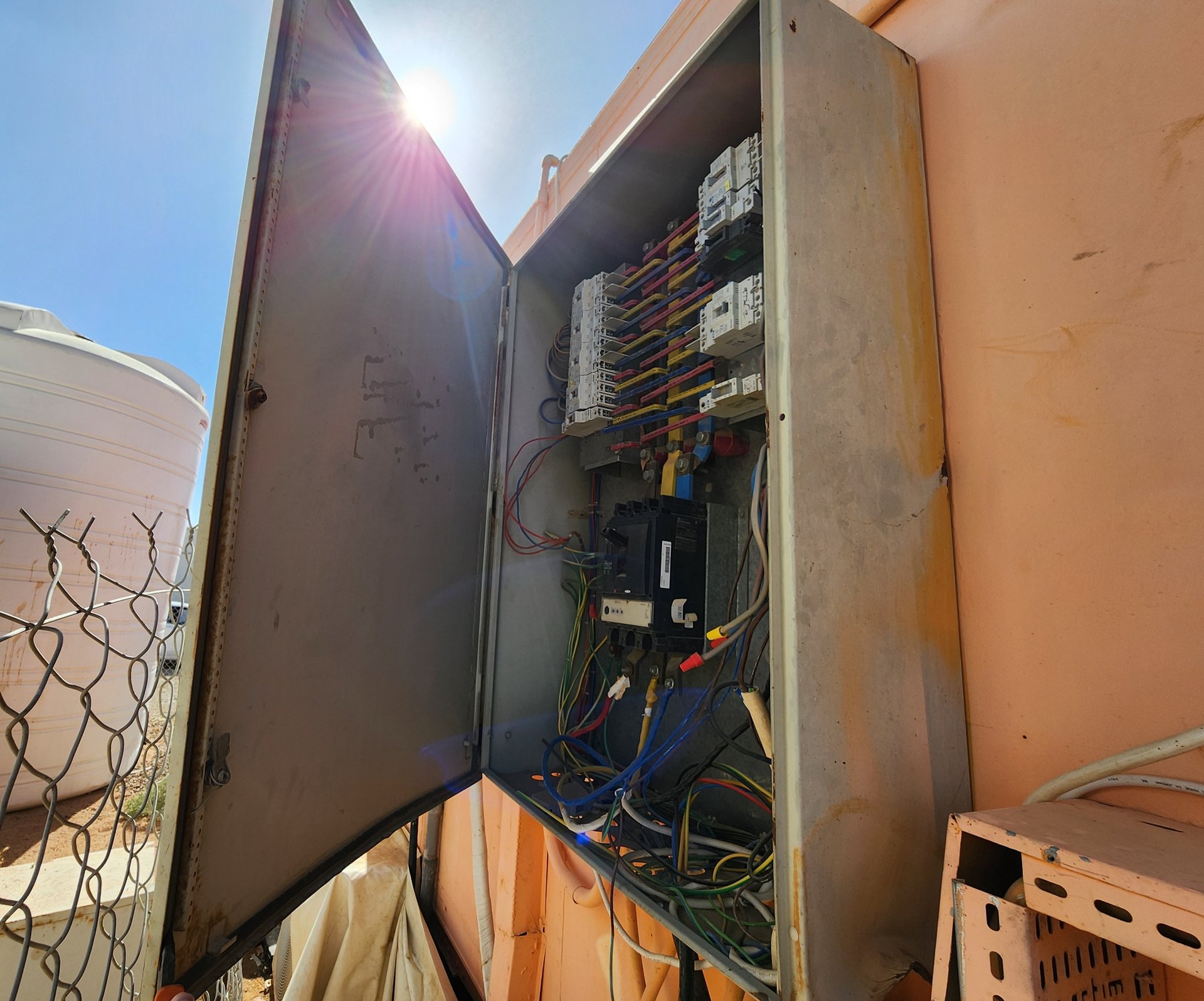

Location: Opposite water tanks, northeast perimeter.
Category: Unlisted Equipment
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: SDP-2-2-E is unlisted.

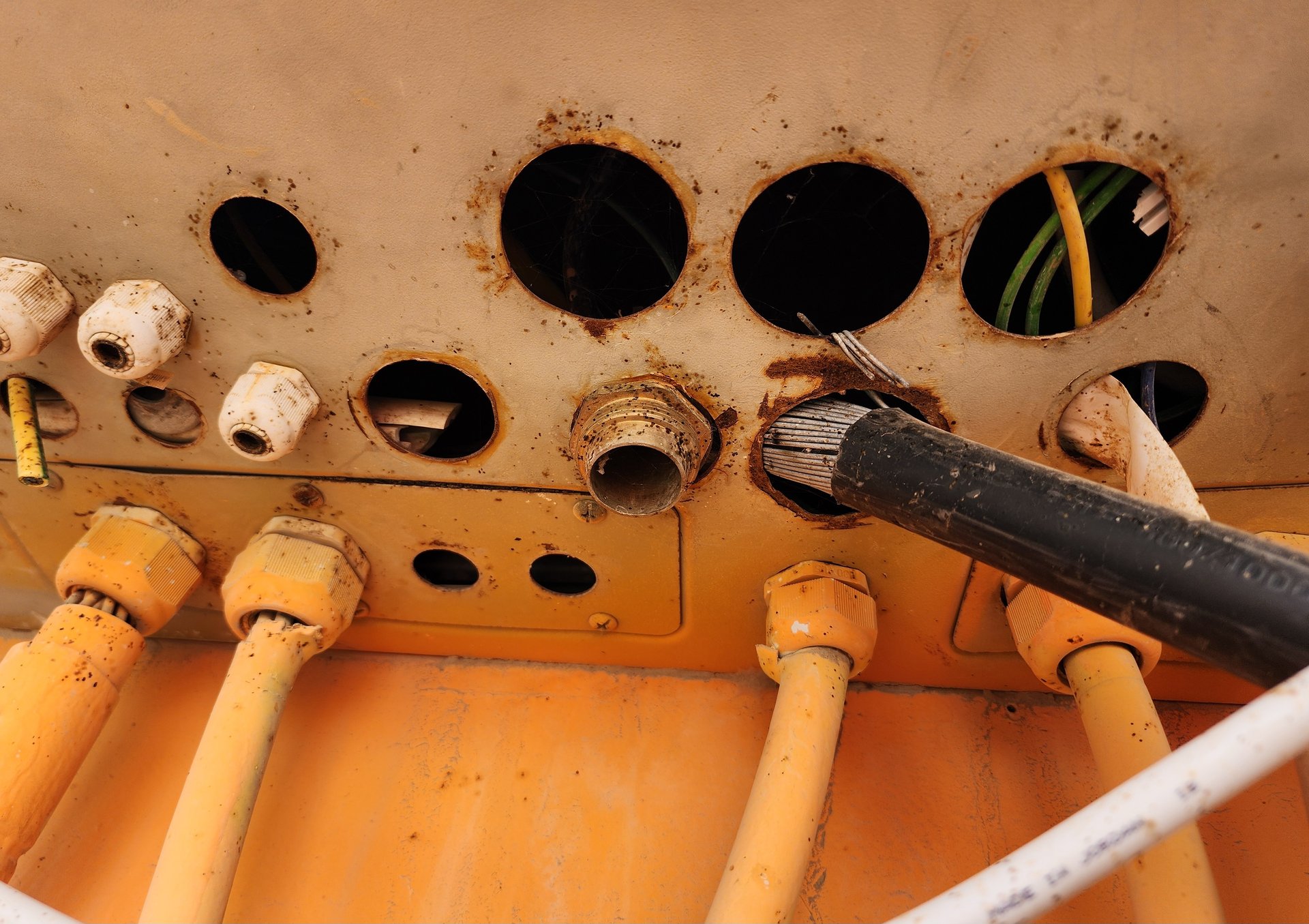

Location: Bottom of SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 10
Imminent Danger: No
Code Source: British Standard
Code Reference: 522: Selection and erection of wiring systems in relation to external influences
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Unused openings are compromising the integrity of IP rating.

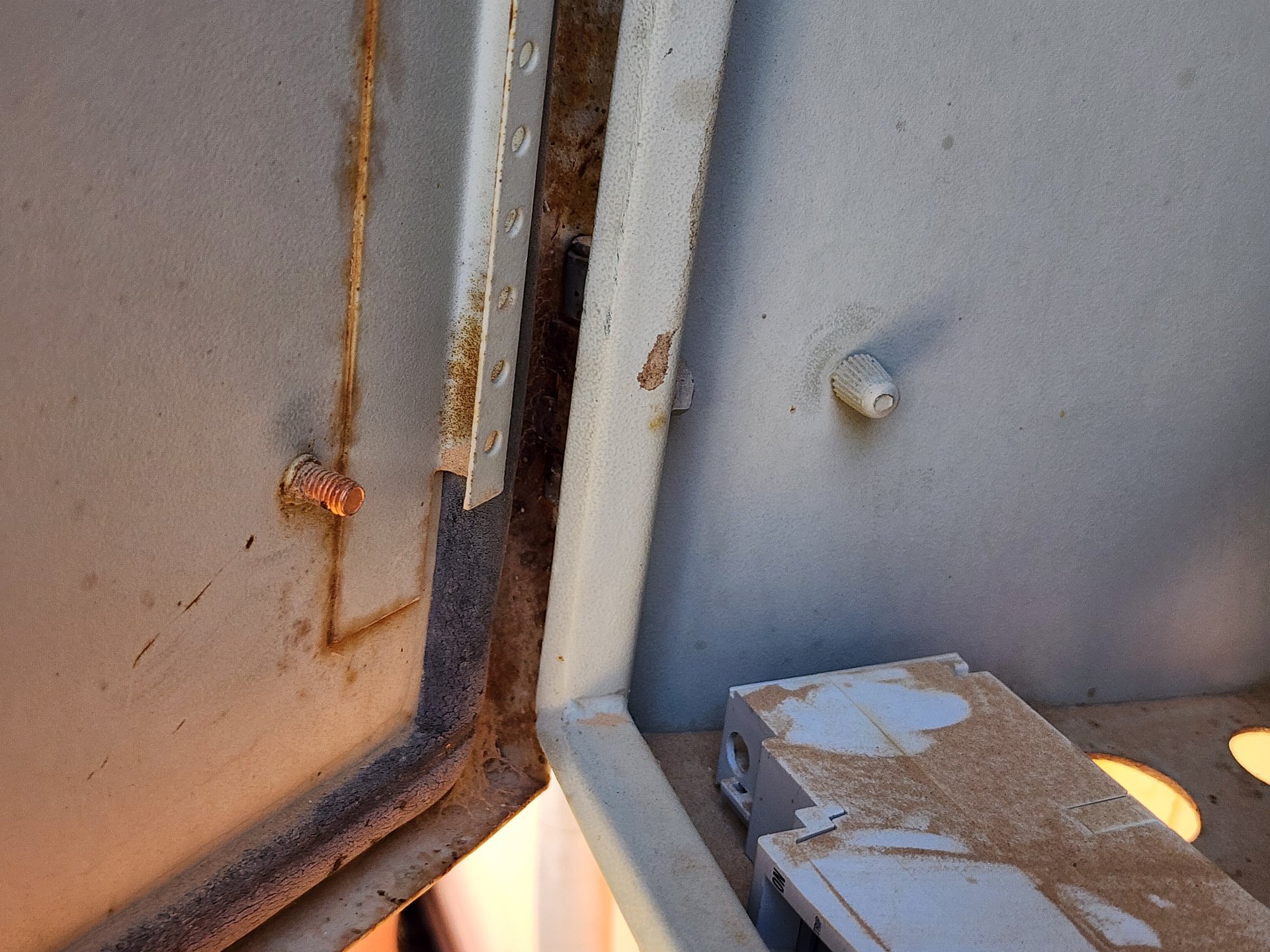

Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No supplementary bond present to door.

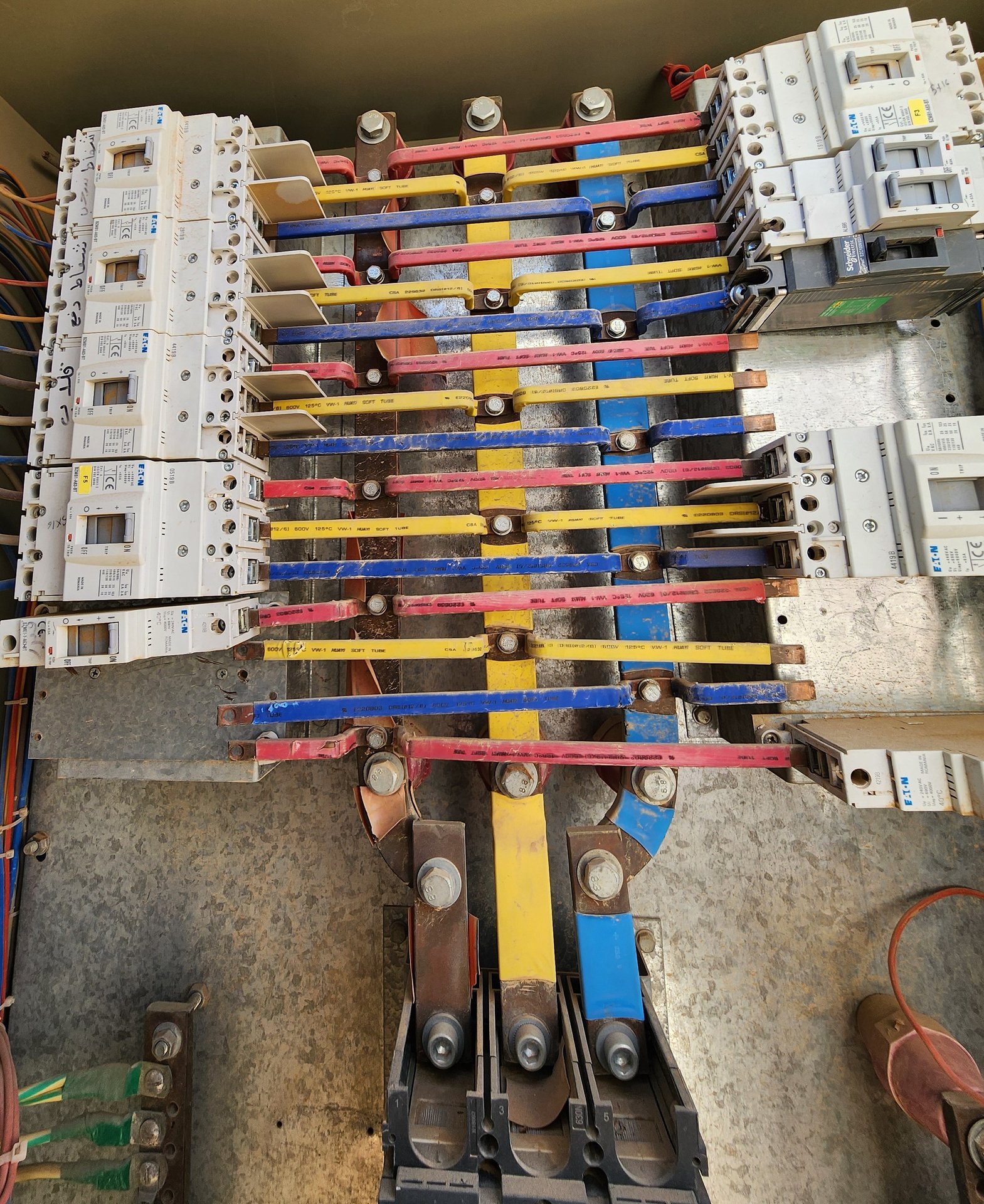

Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No dead front within SDP. Access requires the use of a key or a tool.

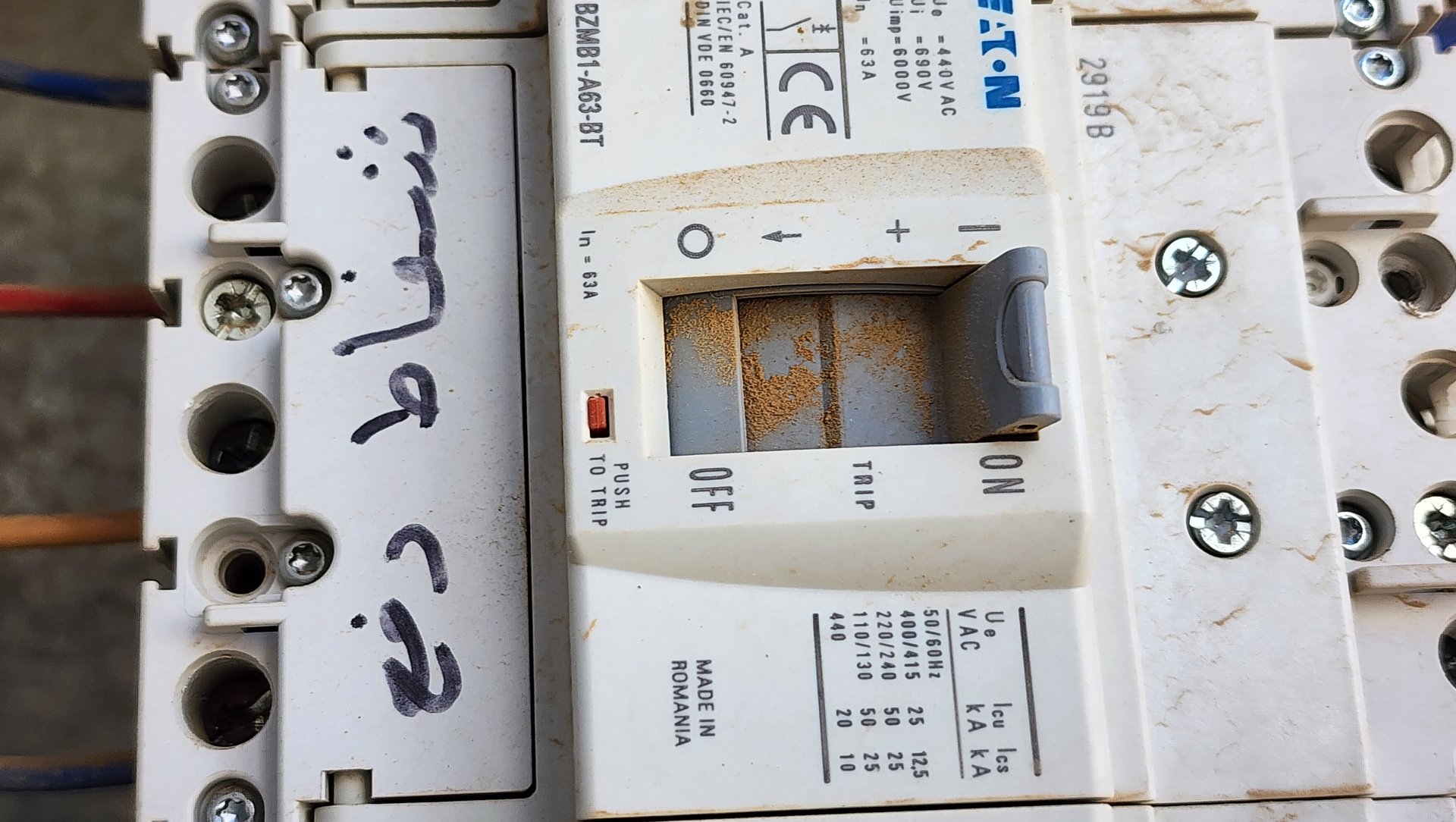

Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 8
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Circuit 1/TP and 2/TP - 4mm2 conductors fed from 63A MCCB's. Circuit 3/TP, 4/TP, 6/TP and 9/TP - 10mm2 conductors fed from 63A MCCB's. Circuit 5/L1 and 7/L2 - 2.5mm2 conductors fed from 63A MCCB's.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Main supply has not been glanded.

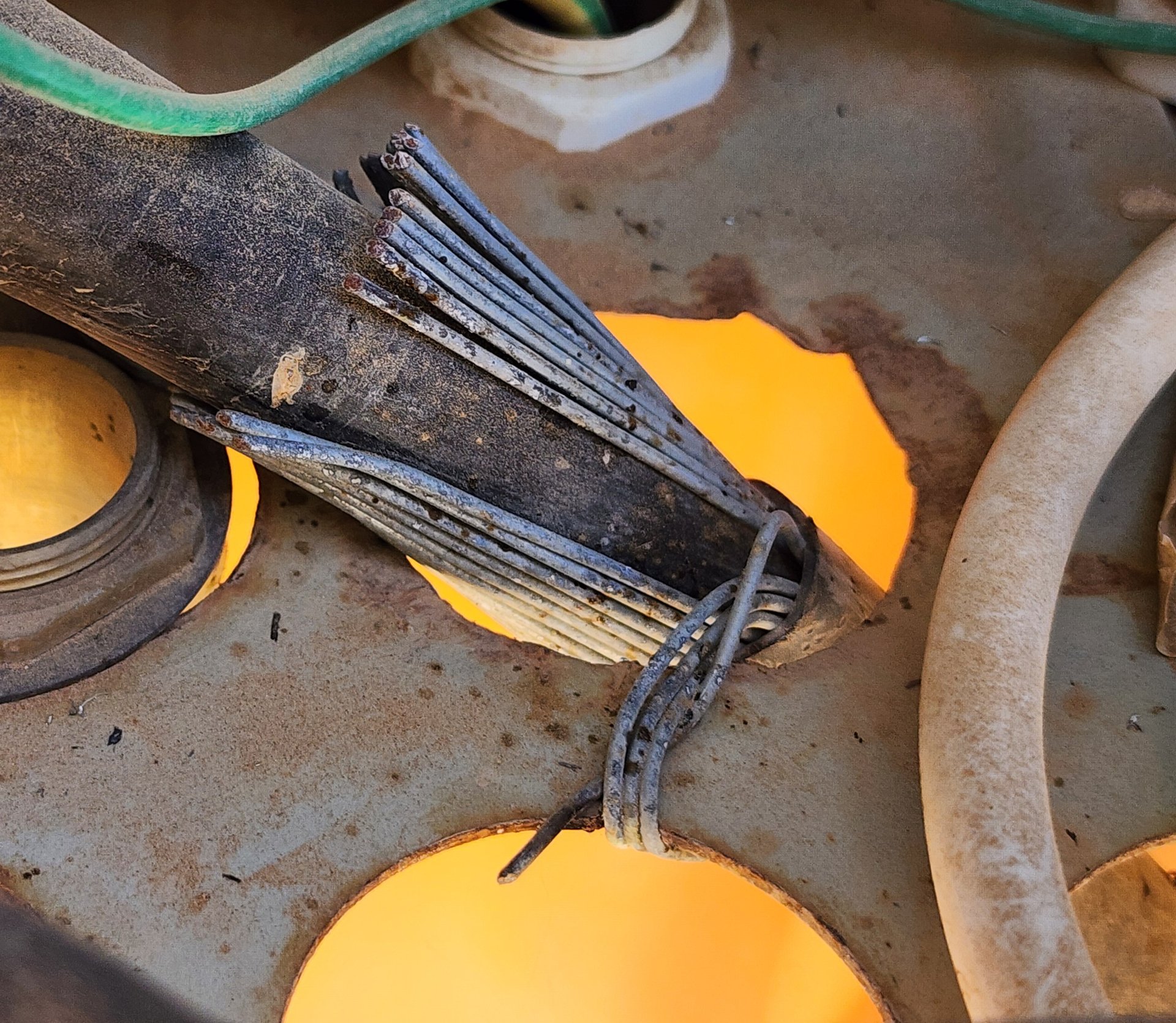

Location: Within SDP, circuit 5/L1 and 7/L2.
Category: Improper Terminations
Equipment: SDP
Occurrences: 4
Imminent Danger: No
Code Source: British Standard
Code Reference: 526: Electrical connections
Action Taken: N/A
SOR Issued To: O&M Provider

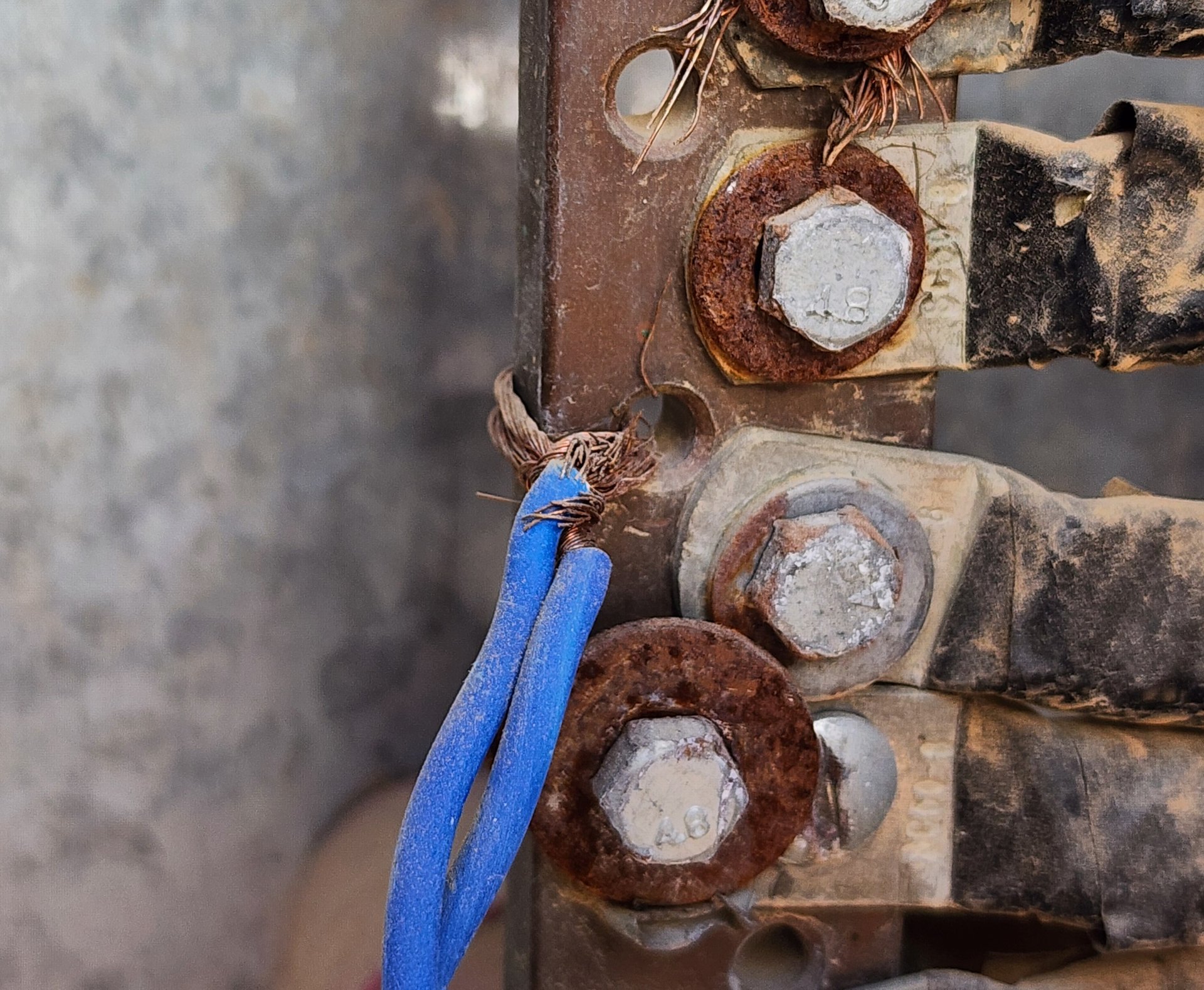

Description: CPC and neutral conductors have been wrapped around the neutral and MET bars to form a connection.

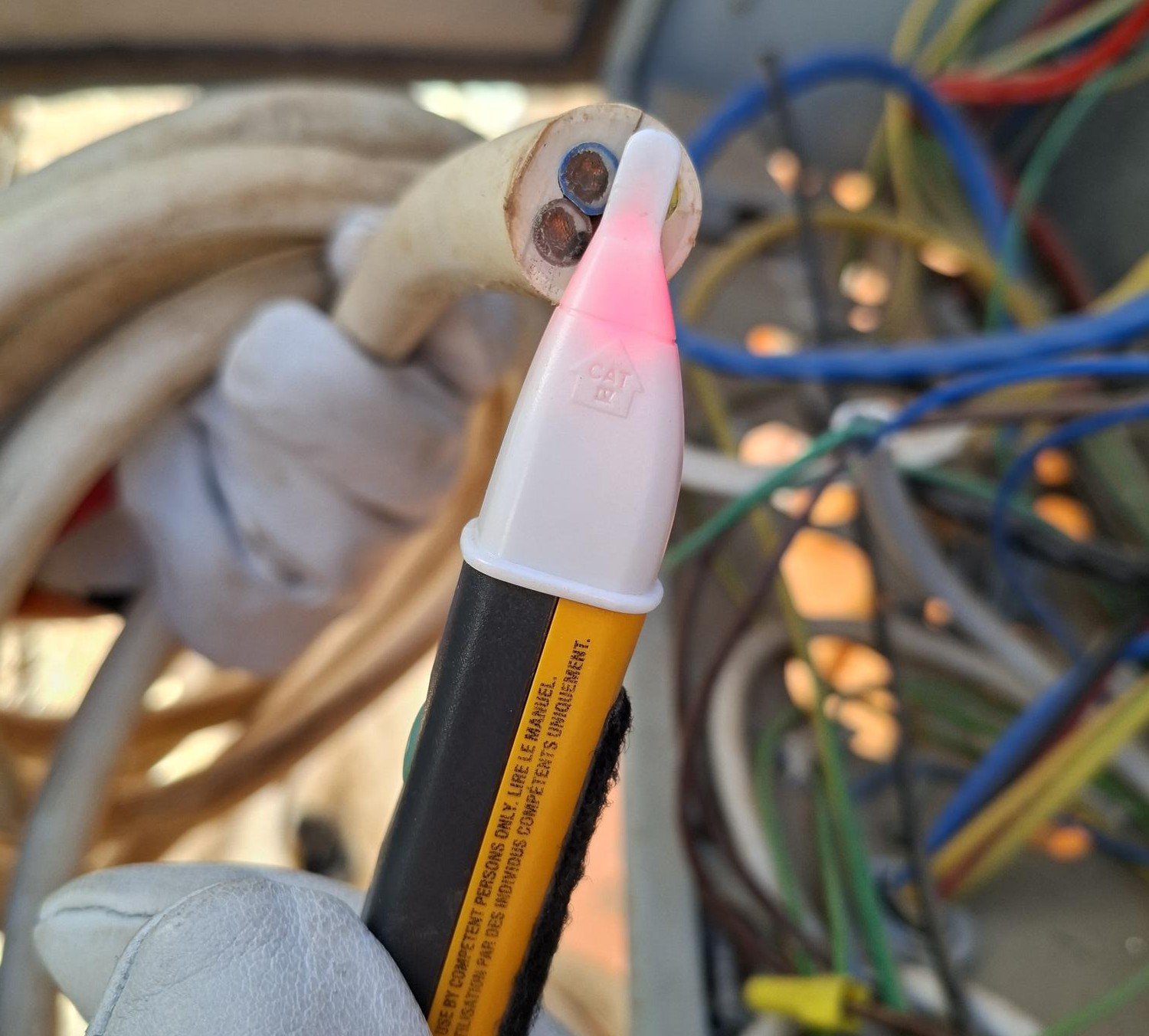

Location: Within SDP, circuit 7/L3.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 1
Imminent Danger: Yes
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: Circuit 7/L3 isolated and ends made safe.
SOR Issued To: Task Force SAFE
Description: Redundant outgoing circuit has live bare ends left exposed. TF Safe made safe on the spot.
Signatures & QC
Inspector 1: Jon Sharp
Inspector 2: Giles Vincent-Edwards
QC: David Forbes (approved 12-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 12-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 12-JUN-2026 | QC Rejected | Pending QC | Jonathan Sharp | |
| 11-JUN-2026 | Pending QC | QC Rejected | David Forbes | Def 5; Occurrences 9 Description only has 8 circuits listed |
| 11-JUN-2026 | Draft | Pending QC | Jonathan Sharp |
