CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-3-N_113_12-06-26_1-6
- Work Order
- TFS-ALQ26-2026-00010
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-3-N
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 12-JUN-2026
- Team
- 113
- Overall Rating
- Fair
- Location
- Located behind gym on the northern perimeter.
Summary of Findings
x 1 SDP. x 1 630A 3P MCCB. x 1 400A 3P MCCB. x 1 250A 3P MCCB. x 1 100A 3P MCCB. All cabling, terminations and earthing arrangements. Earth path is by way of steel wire armouring and 70mm2 ground electrode conductors run in parallel. Ze readings are high but still within the maximum permitted tolerance of 0.8 Ohms.

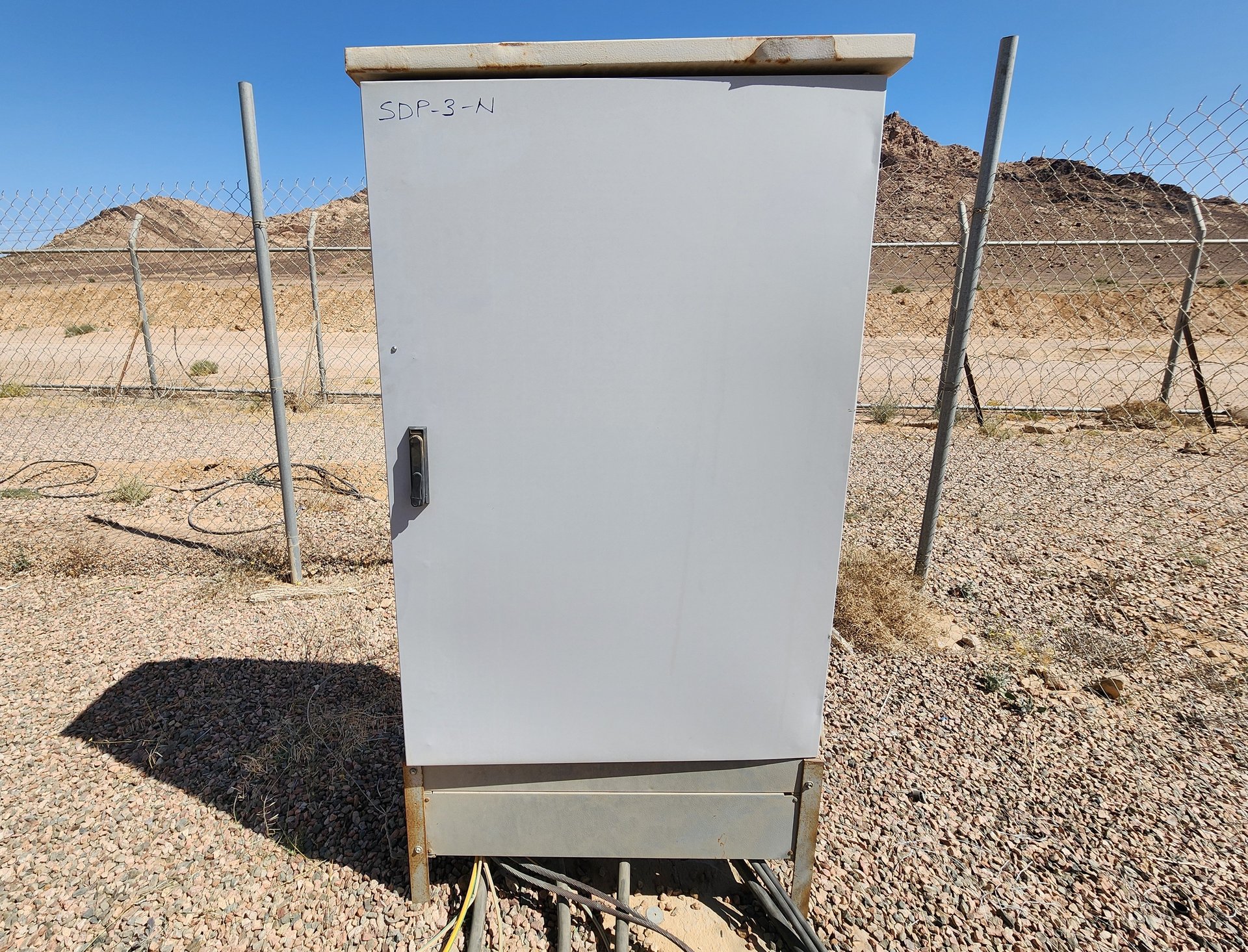

Building Picture
Deficiencies (6)
Location: Located behind gym on the northern perimeter.
Category: Unlisted Equipment
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: SDP-3-N is unlisted.

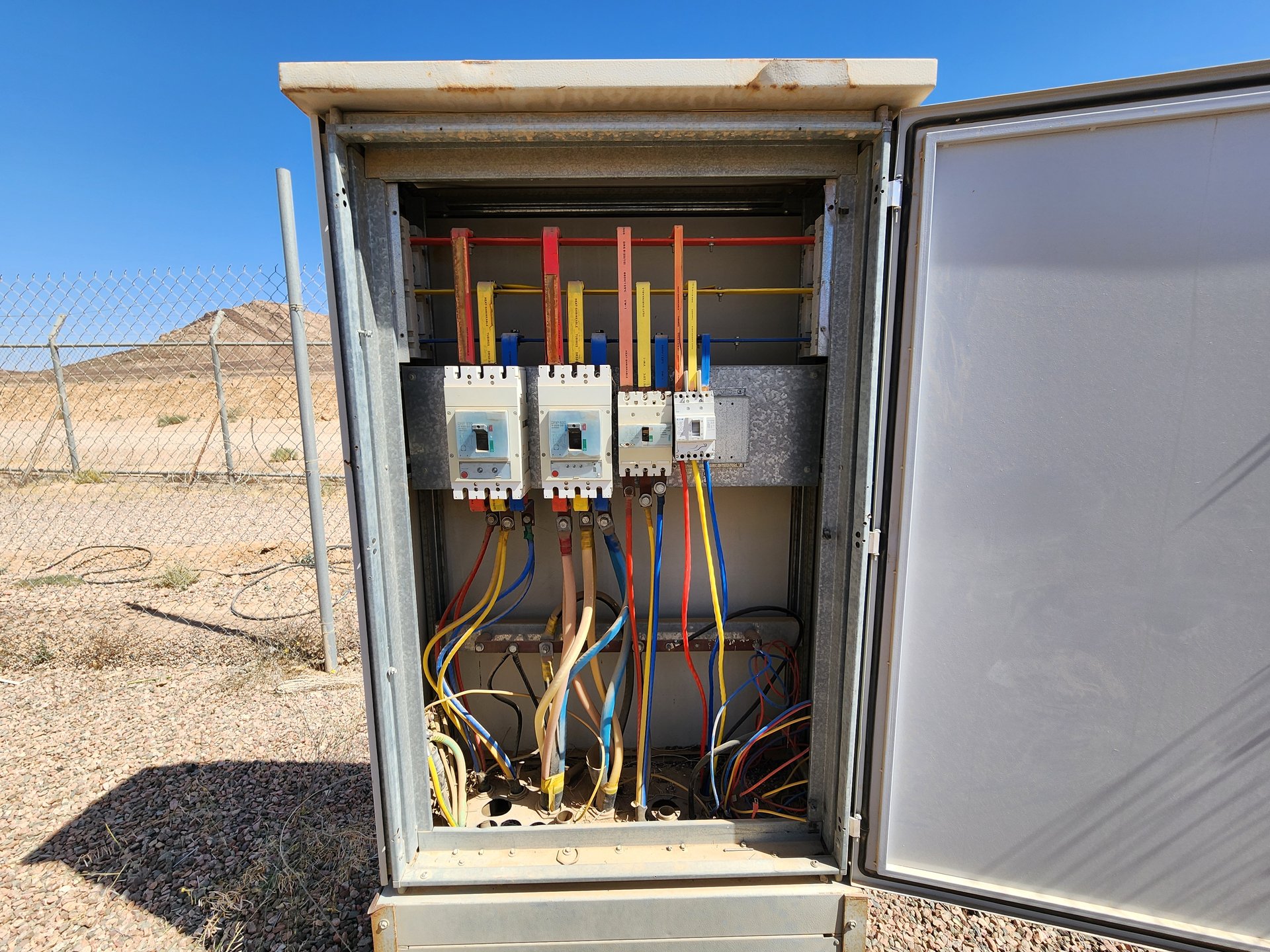

Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

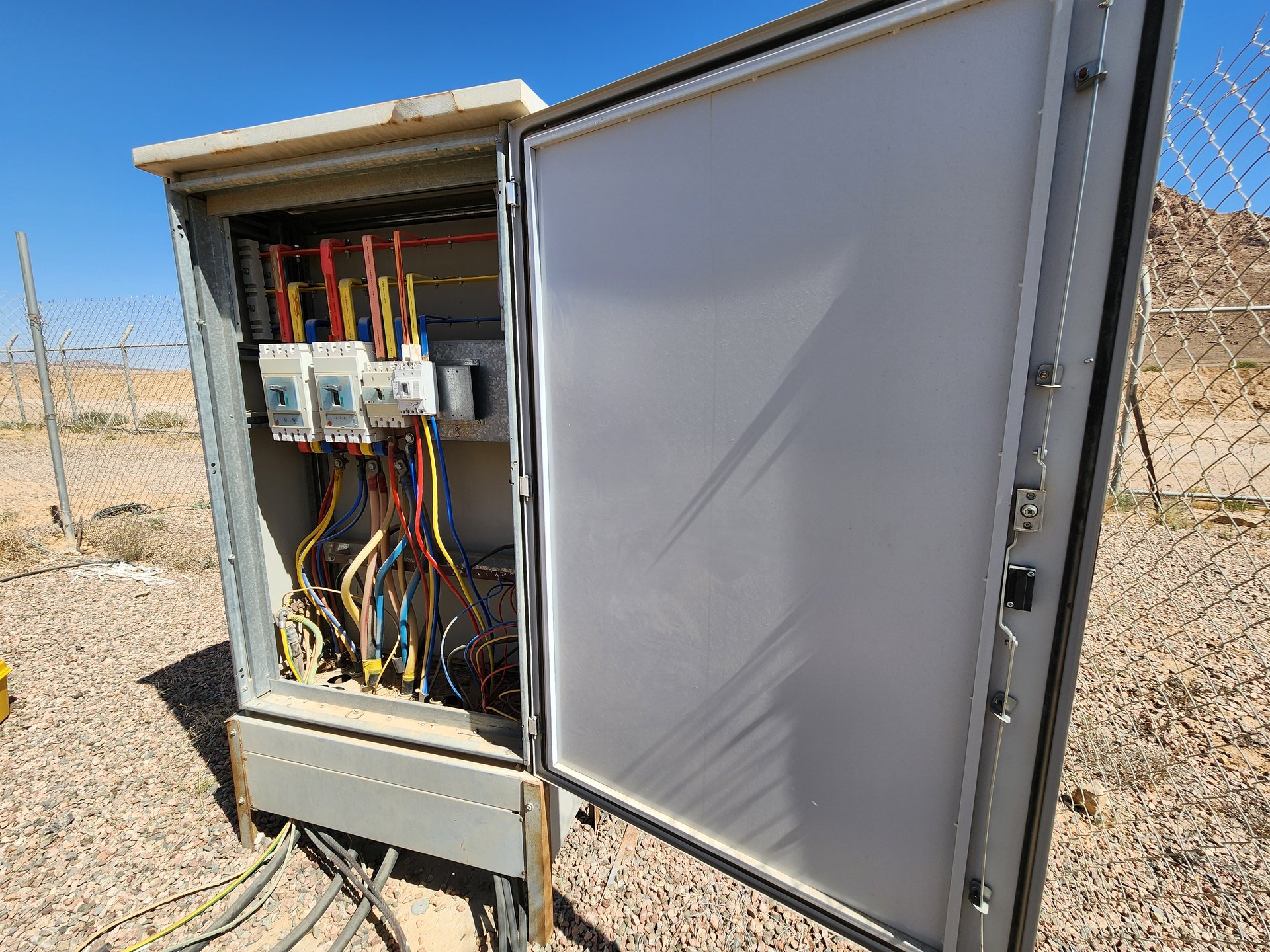

Description: No dead front present within SDP. Access requires the use of a key or a tool.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

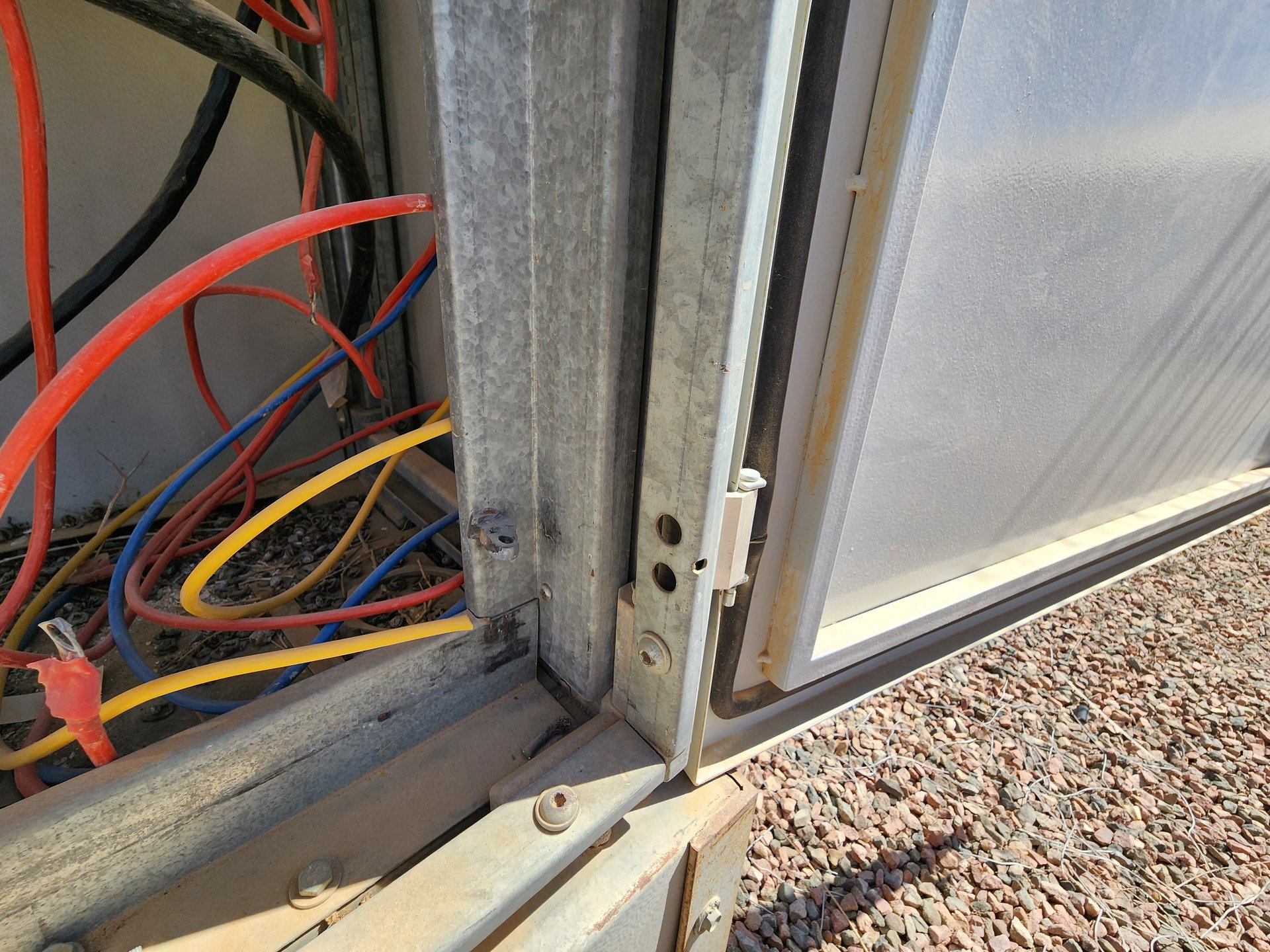

Description: No supplementary bond present to door.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 5
Imminent Danger: No
Code Source: British Standard
Code Reference: 522: Selection and erection of wiring systems in relation to external influences
Action Taken: N/A
SOR Issued To: O&M Provider

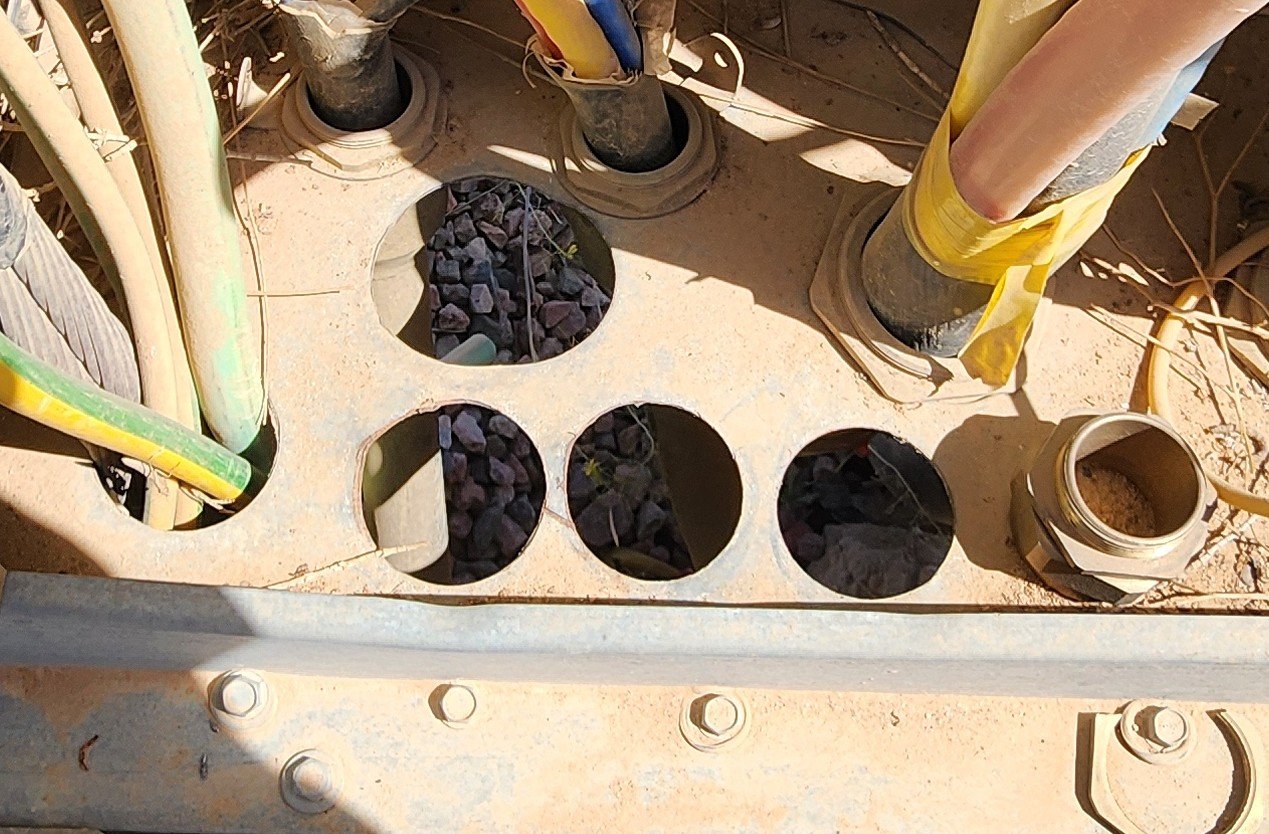

Description: Unused openings compromising integrity of IP rating.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 2
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider

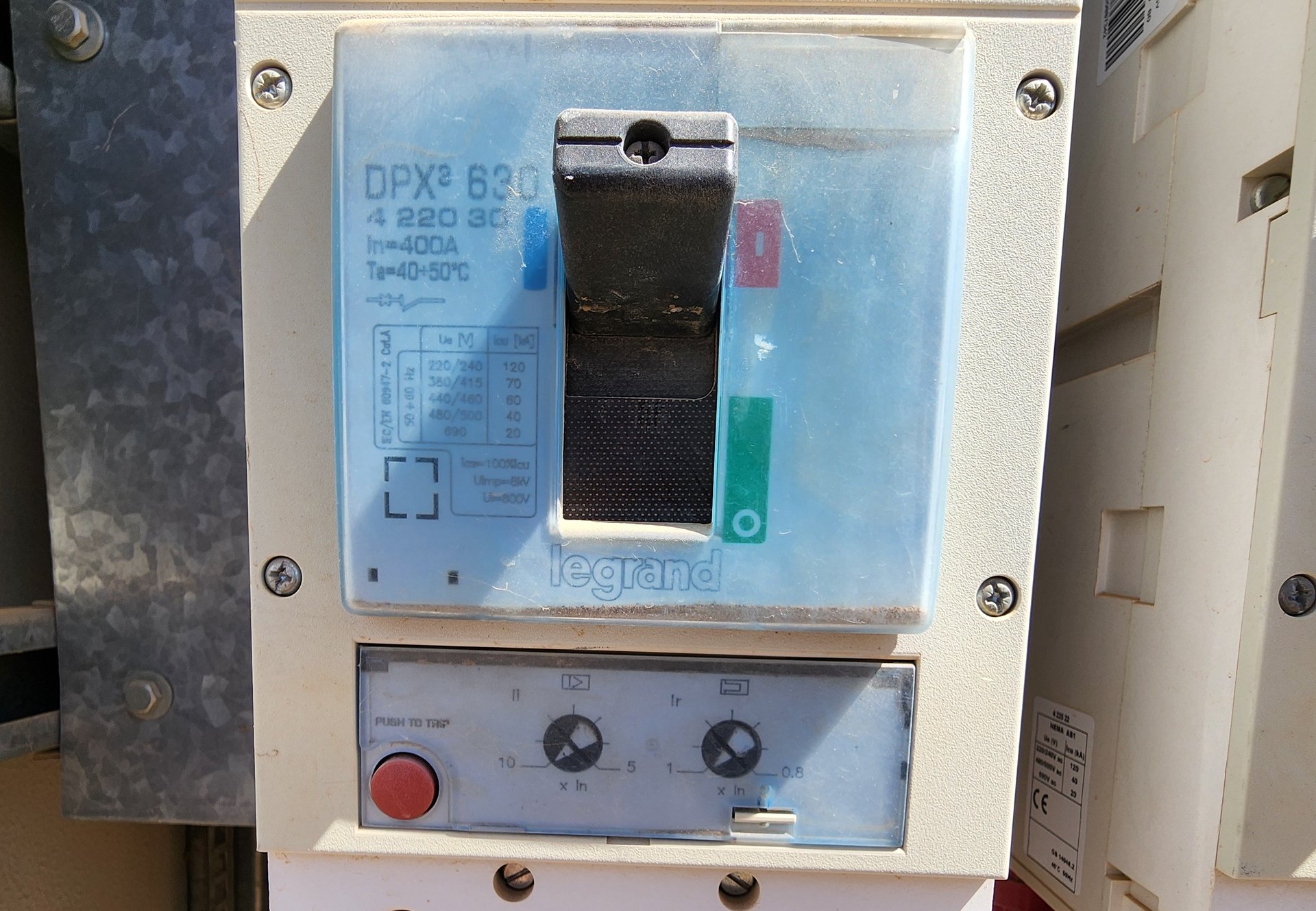

Description: Circuit 1/TP - 35mm2 conductors in parallel fed from 400A MCCB. Circuit 2/TP - 35mm2 conductors fed from 250A MCCB.
Location: Within SDP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 2
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: Task Force SAFE

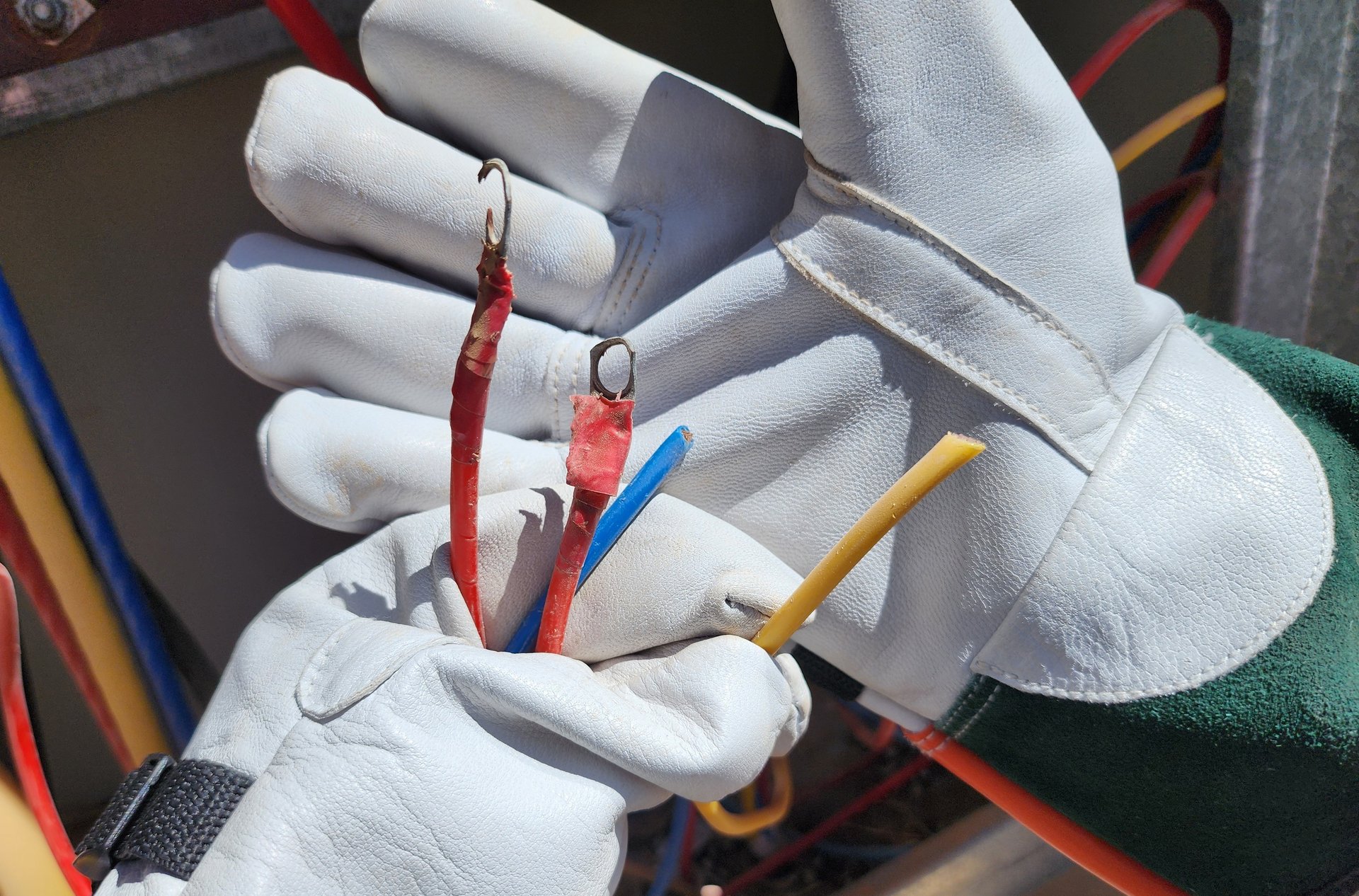

Description: Redundant outgoing circuits have bare ends left exposed.
Signatures & QC
Inspector 1: Jon Sharp
Inspector 2: Giles Vincent-Edwards
QC: David Forbes (approved 12-JUN-2026)
Status History
2
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 12-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 12-JUN-2026 | Draft | Pending QC | - |
