Inspection-Report_TFSAFE_Full_KFAB22_Oiltown-SDP-1_116_01-06-26_1-4
CompleteReport Details
- TAG-ID
- TFSAFE_KFAB22_Oiltown-SDP-1_116_01-06-26_1-4
- Work Order
- TFS-KFAB22-2026-00001
- Site
- KFAB (Jordan) (KFAB22)
- Building
- Oiltown-SDP-1
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 01-JUN-2026
- Team
- 116
- Overall Rating
- Fair
- Location
- Oiltown is adjacent to the airfield, north of Dufftown. SDP-1 is attached to the AMOPS CHU within Oiltown.
Summary of Findings
Items inspected: 1x SDP, all cables.

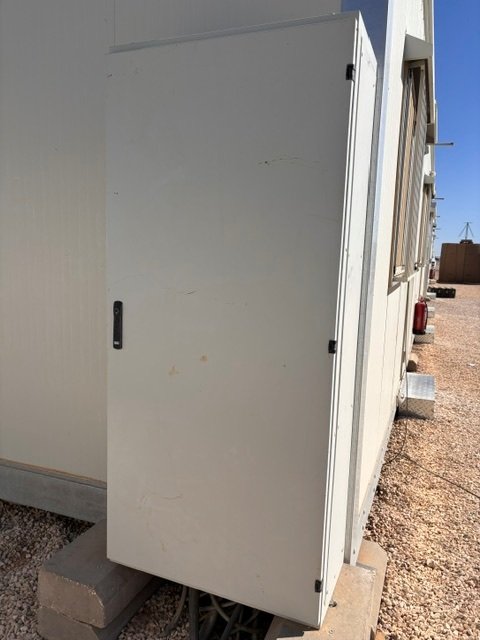

Building Picture
Deficiencies (4)
Location: Within the SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: Yes
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: Mitigated by notifying the O&M provider of the issue.
SOR Issued To: O&M Provider

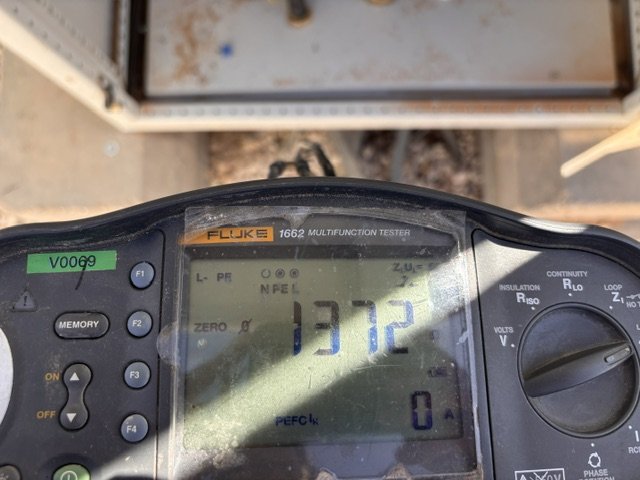

Description: High Zdb reading of 1372 ohms within the SDP.
Location: Within the SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 22
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

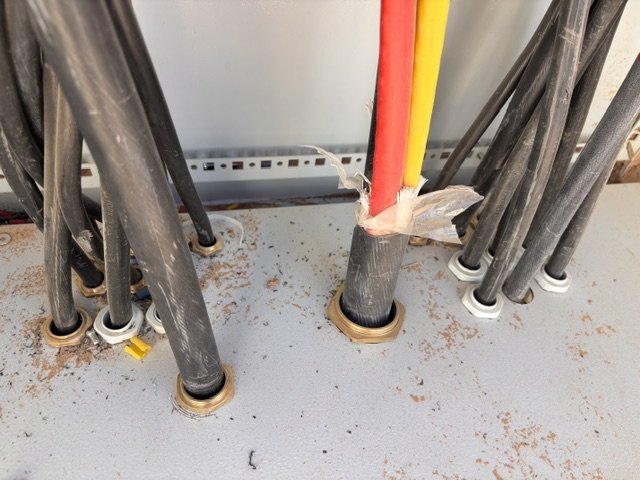

Description: SWA cables are not bonded.
Location: Within the SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 2
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider

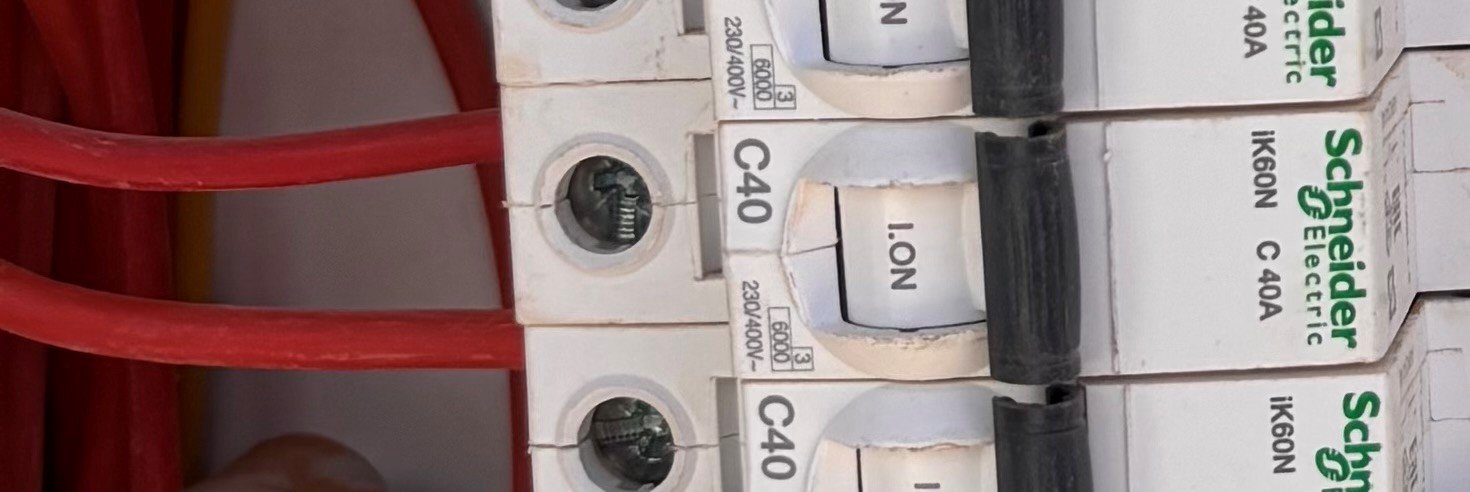

Description: Oversized breakers feeding conductors. (40A breakers feeding 4mm conductors)
Location: Within the SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

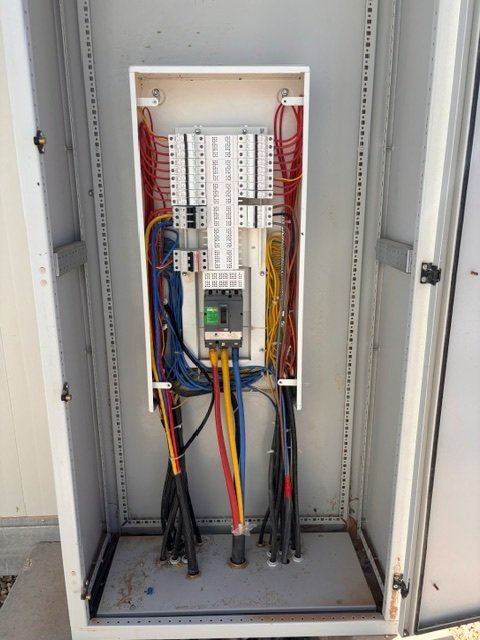

Description: No dead front within panel.
Signatures & QC
Inspector 1: Salomon Munoz
Inspector 2: Jongi Ledbetter
QC: David Forbes (approved 02-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 02-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 02-JUN-2026 | QC Rejected | Pending QC | Salomon Munoz | |
| 02-JUN-2026 | Pending QC | QC Rejected | David Forbes | Please see corrections needed below- Inspection Info Location; Oil town or Oiltown needs corrected to the same. Full stop missing Def 2 Equipment; needs changed to SDP Def 3 SOR Issued To; missing |
| 01-JUN-2026 | Draft | Pending QC | Salomon Munoz |
