Inspection-Report_TFSAFE_Full_ALQ26_SDP-3-1-N_113_13-06-26_1-11
CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-3-1-N_113_13-06-26_1-11
- Work Order
- TFS-ALQ26-2026-00011
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-3-1-N
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 13-JUN-2026
- Team
- 113
- Overall Rating
- Fair
- Location
- Located to the rear of gym on the northern perimeter.
Summary of Findings
x 1 SDP. x 2 100A 3P MCCB's. x 7 60A 3P MCCB's. x 3 30A MCCB's. All cabling, terminations and earthing arrangements. Main earth path is by way of steel wire armouring. 9/TP is a 60A 3P MCCB feeding a single-phase outgoing circuit. Ze readings are high but still within the maximum permitted tolerance of 0.8 Ohms.

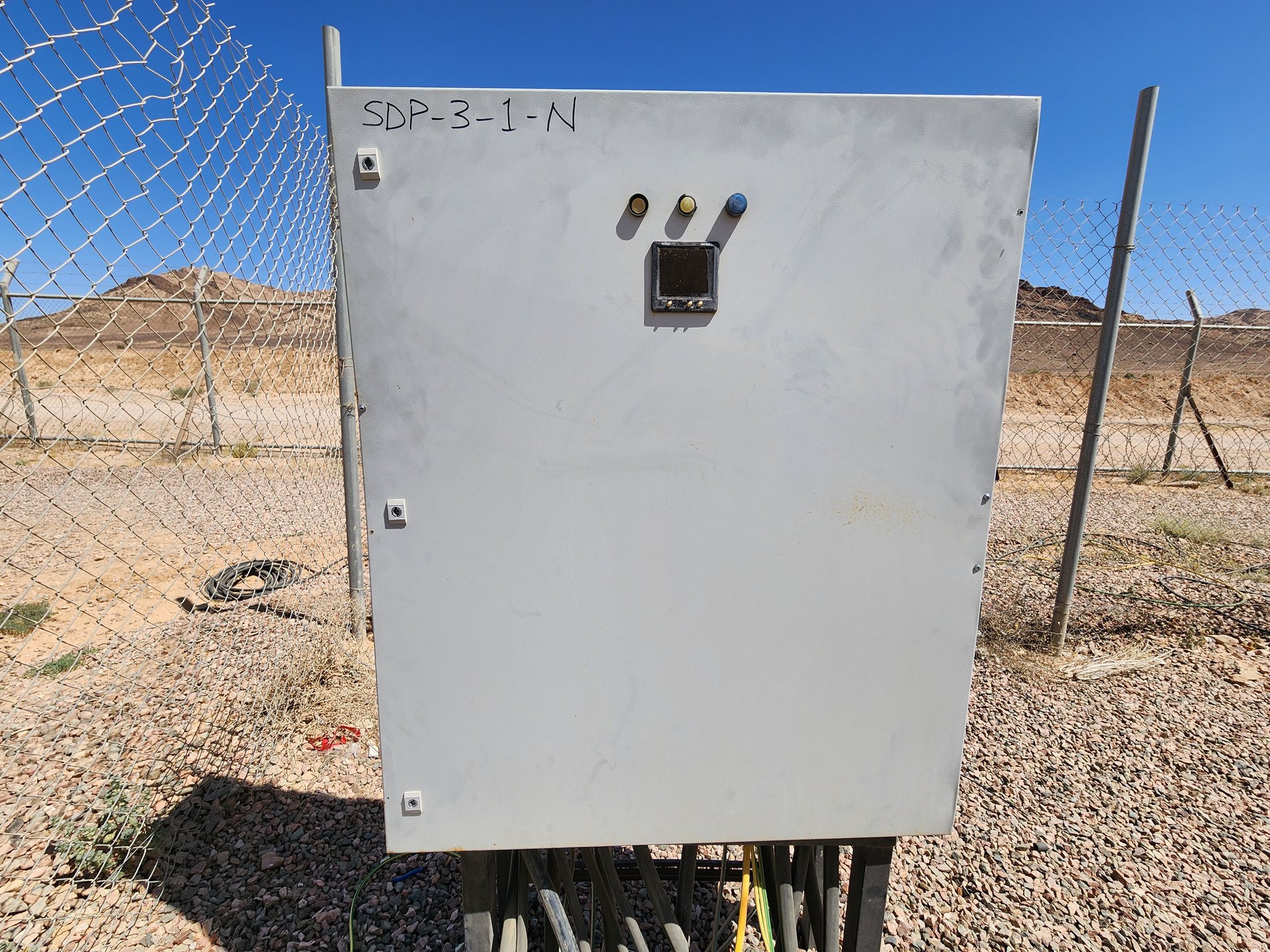

Building Picture
Deficiencies (11)
Location: Located behind gym on the northern perimeter.
Category: Unlisted Equipment
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: SDP-3-1-N is unlisted.
Location: SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 642: Inspection
Action Taken: N/A
SOR Issued To: O&M Provider

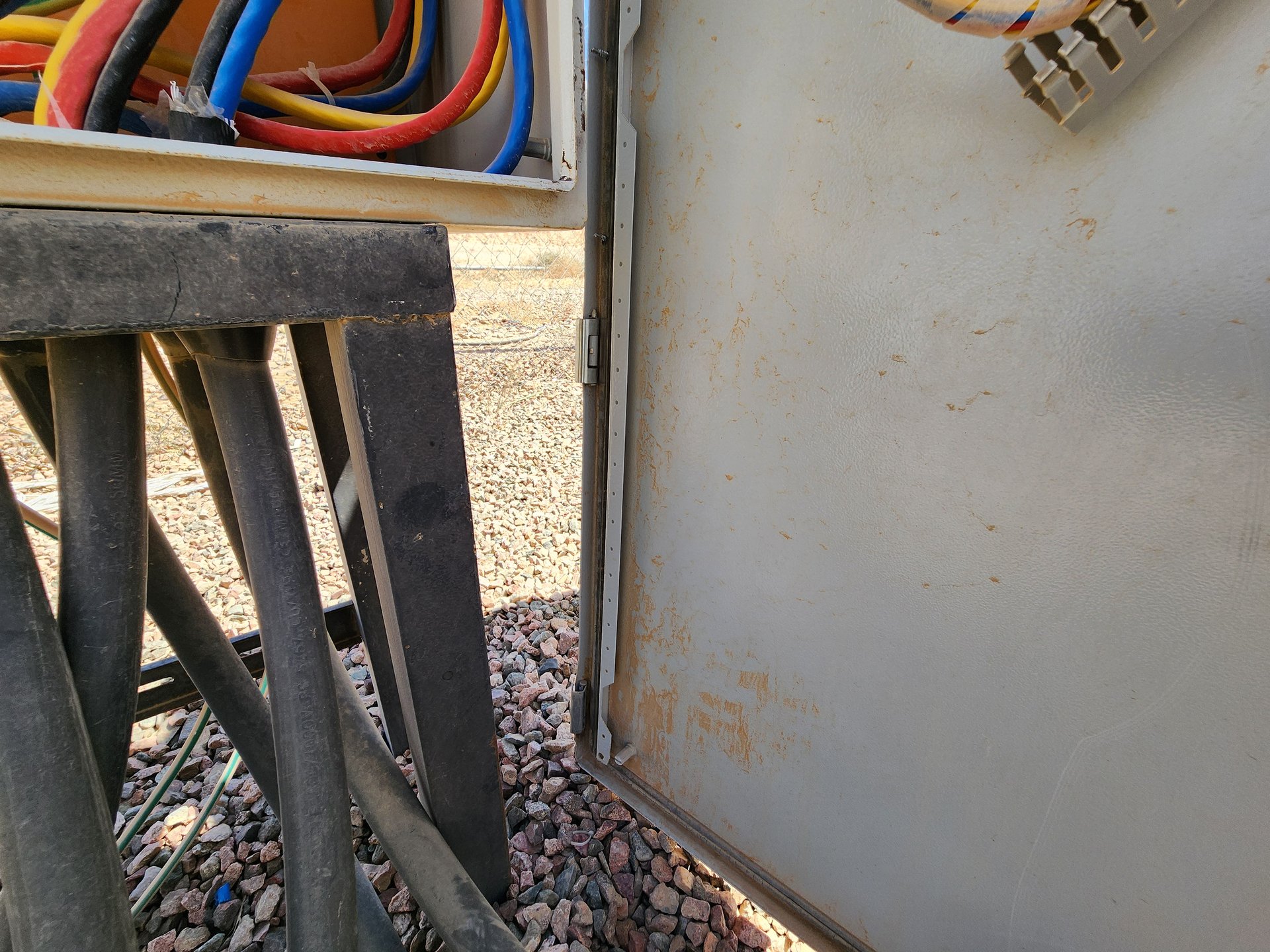

Description: Door to SDP is damaged and fixed into position using self-tapping screws.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

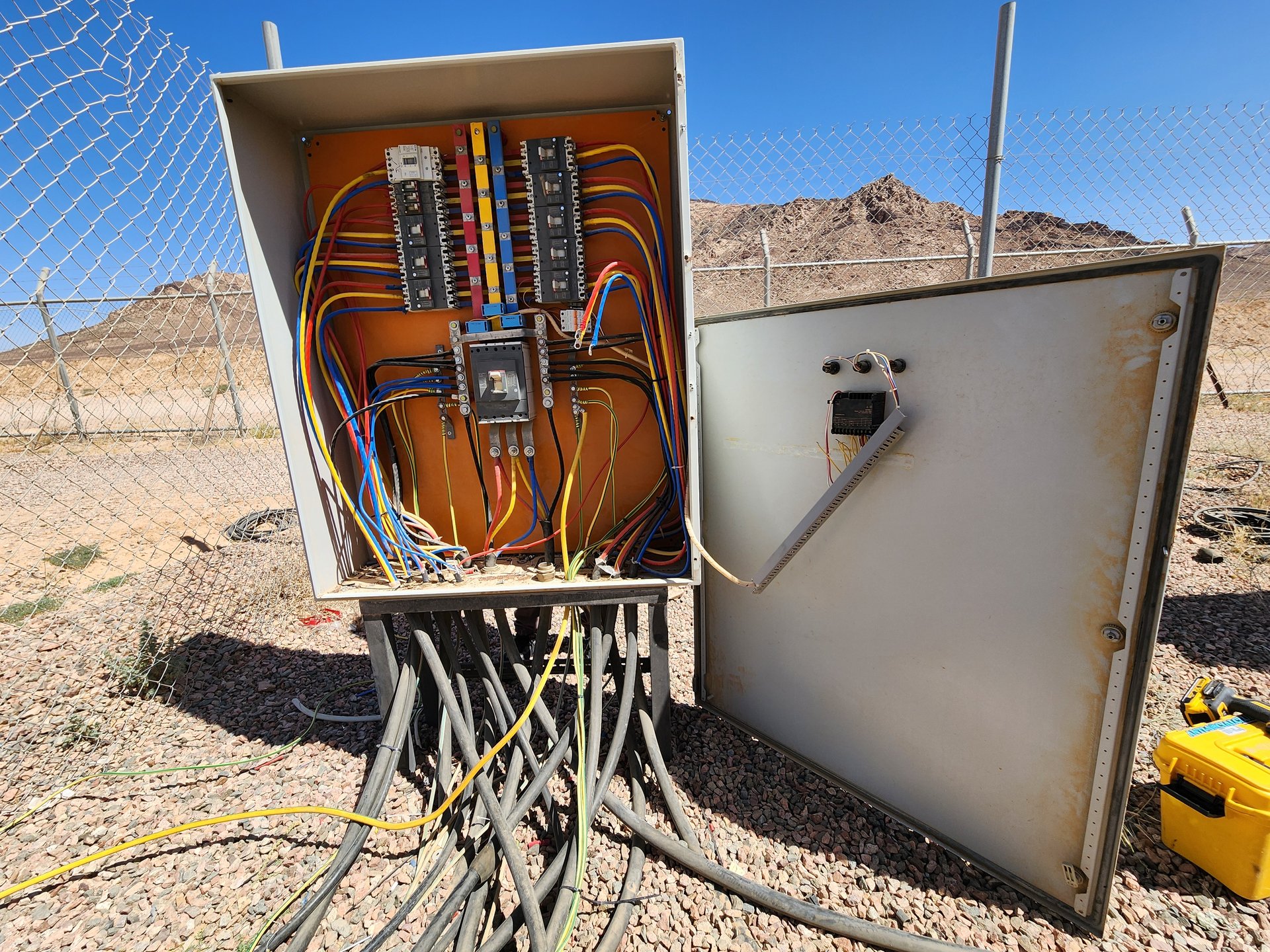

Description: No dead front present within SDP.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: GND
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

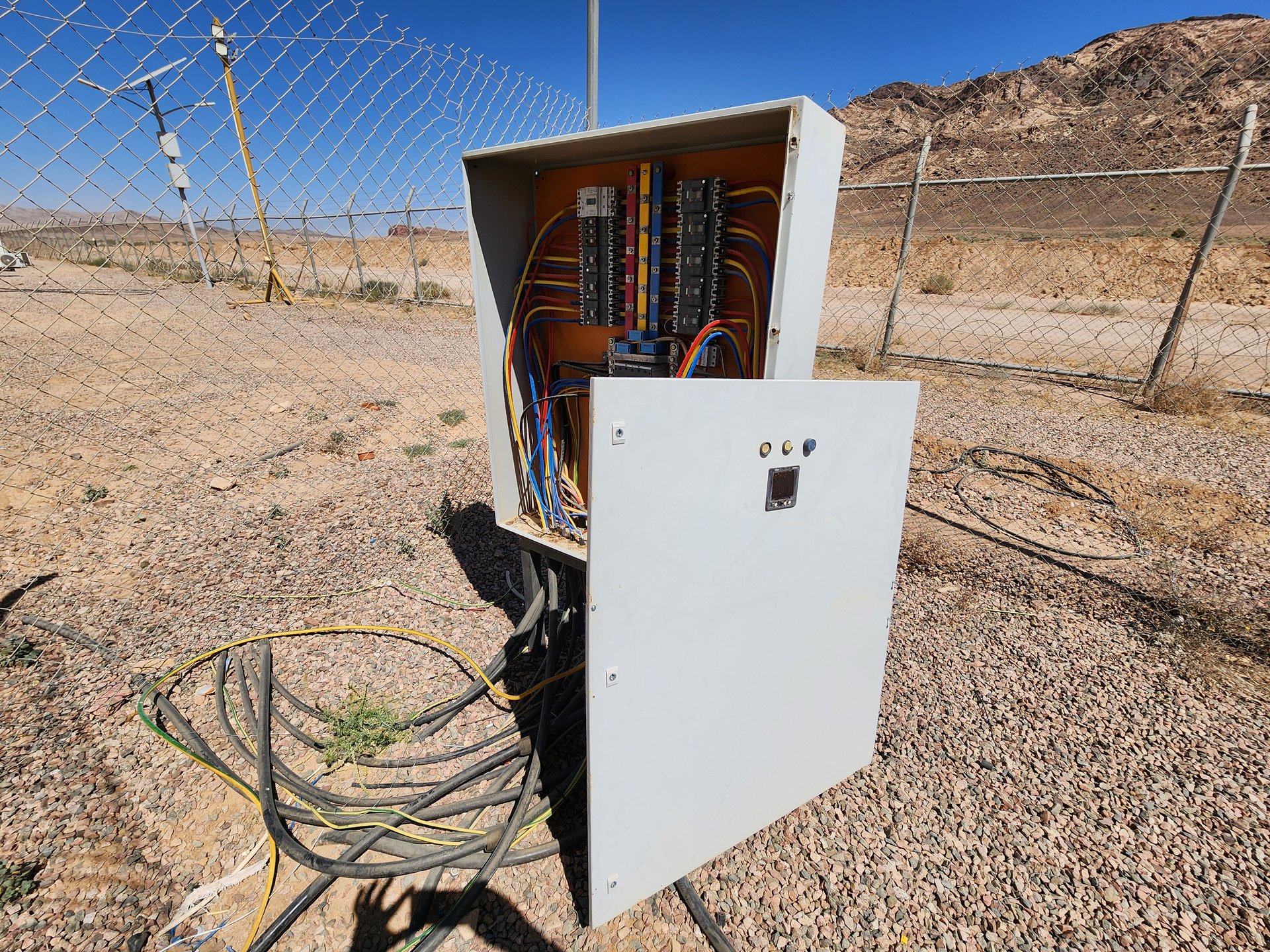

Description: No supplementary bond present to door.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 4
Imminent Danger: Yes
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: Wiring de-energized and stripped out.
SOR Issued To: Task Force SAFE
Description: Containment to internal wiring is damaged, exposing live conductors.
Location: Within SDP, circuit 2/L1.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

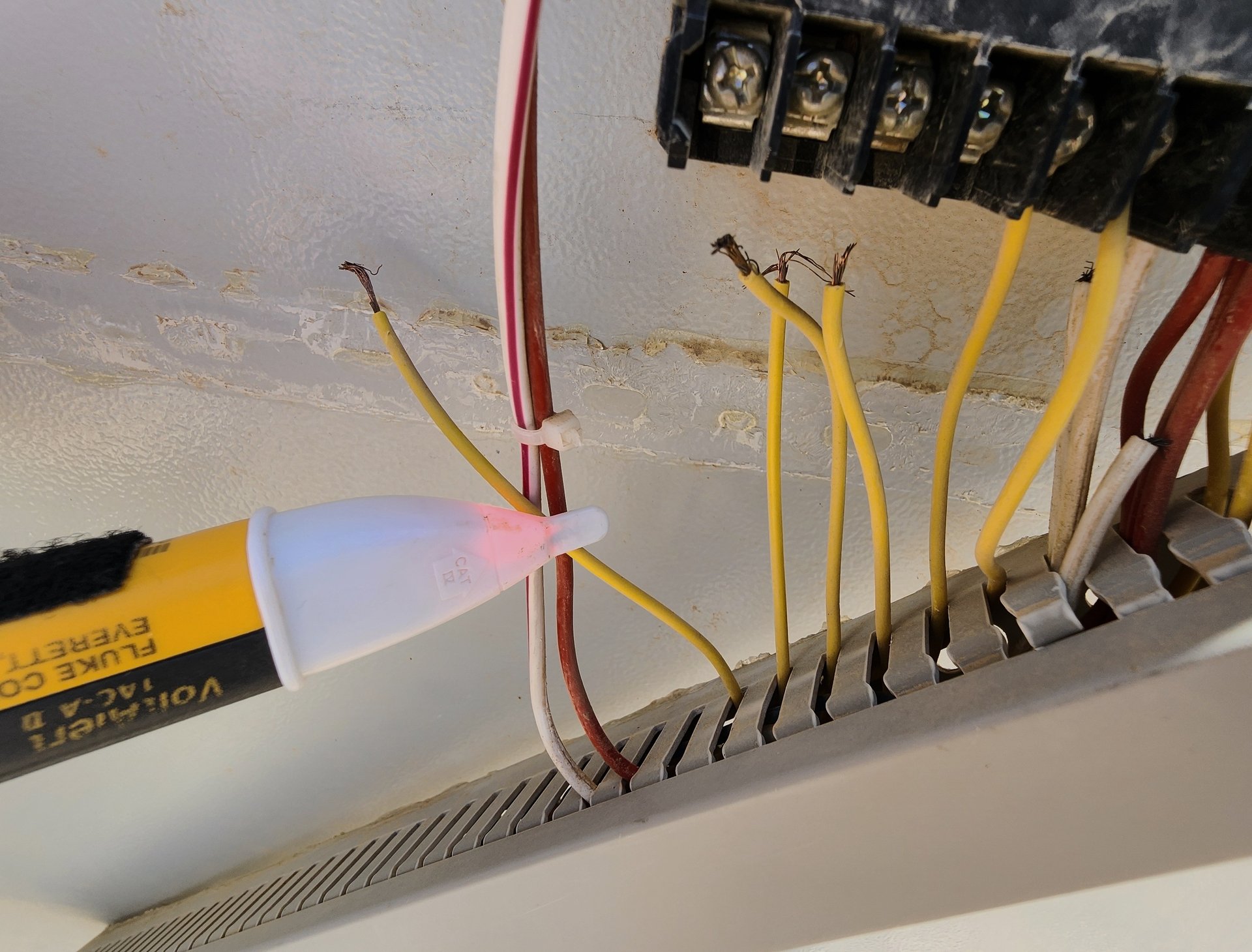

Description: Exposed live end where old wiring has not been safely removed.
Location: Within SDP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 3
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: Task Force SAFE
Description: Redundant outgoing circuit has bare ends left exposed. TF Safe made safe on the spot.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: GND
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Outgoing CPC has strands cut out, reducing cross sectional area.
Location: Within SDP, circuit 1/TP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: O&M Provider

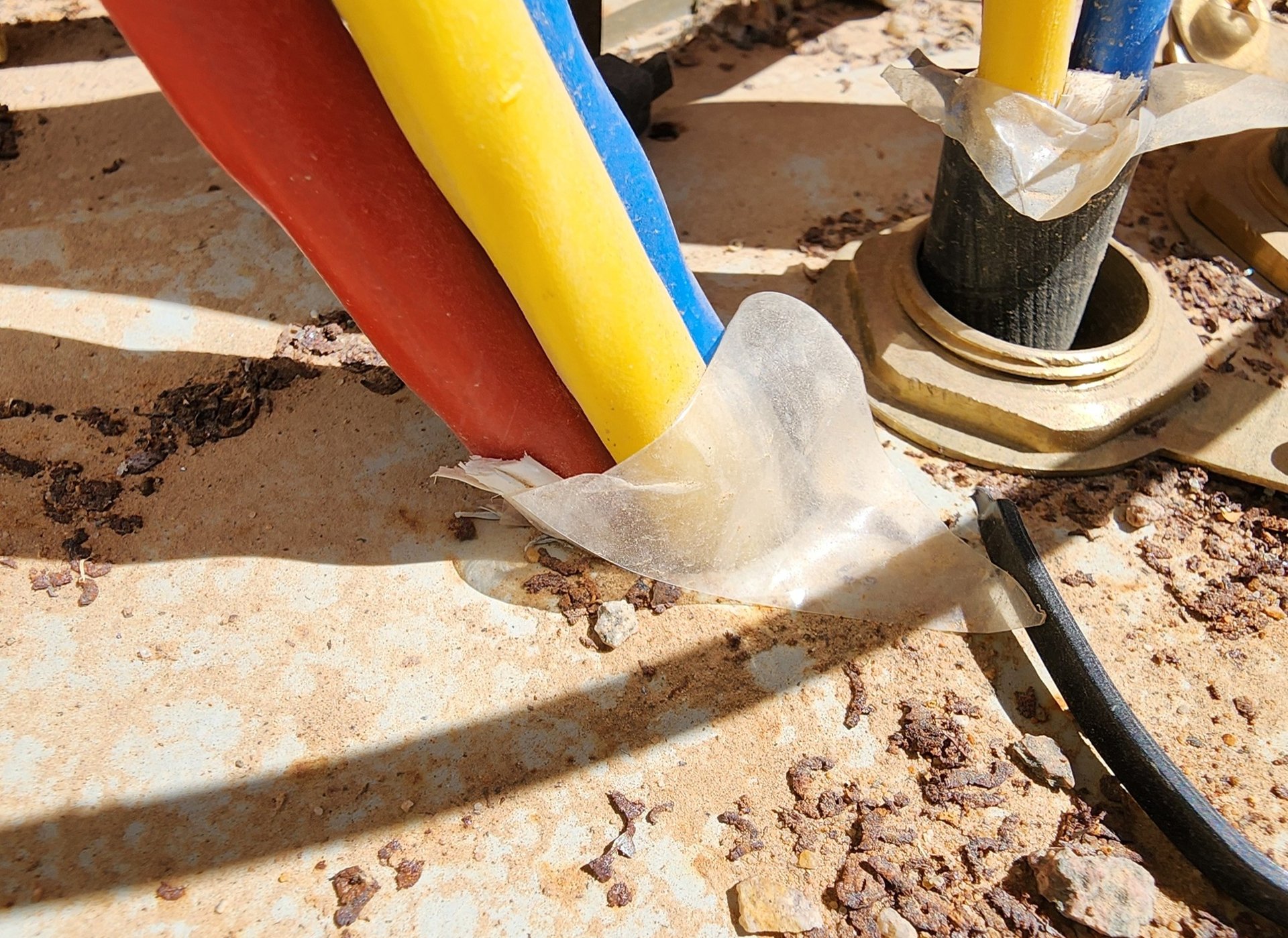

Description: No SWA gland present to circuit 1/TP, providing abrasion protection to conductors.
Location: SDP, circuit 1/TP.
Category: Grounding and Bonding
Equipment: GND
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

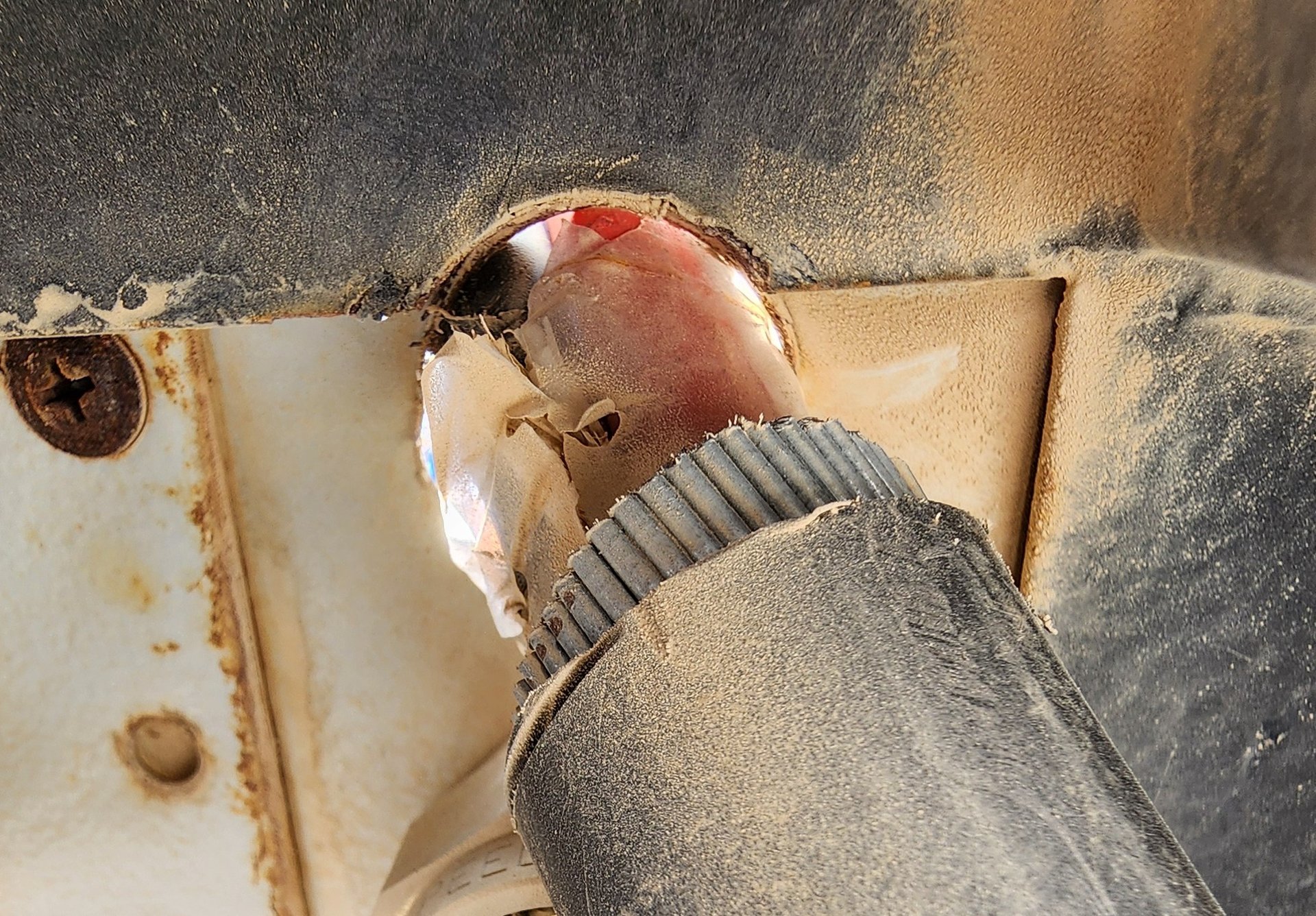

Description: No SWA gland present to circuit 1/TP, providing earthing to steel wire armouring.
Location: SDP, circuit 9/TP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider

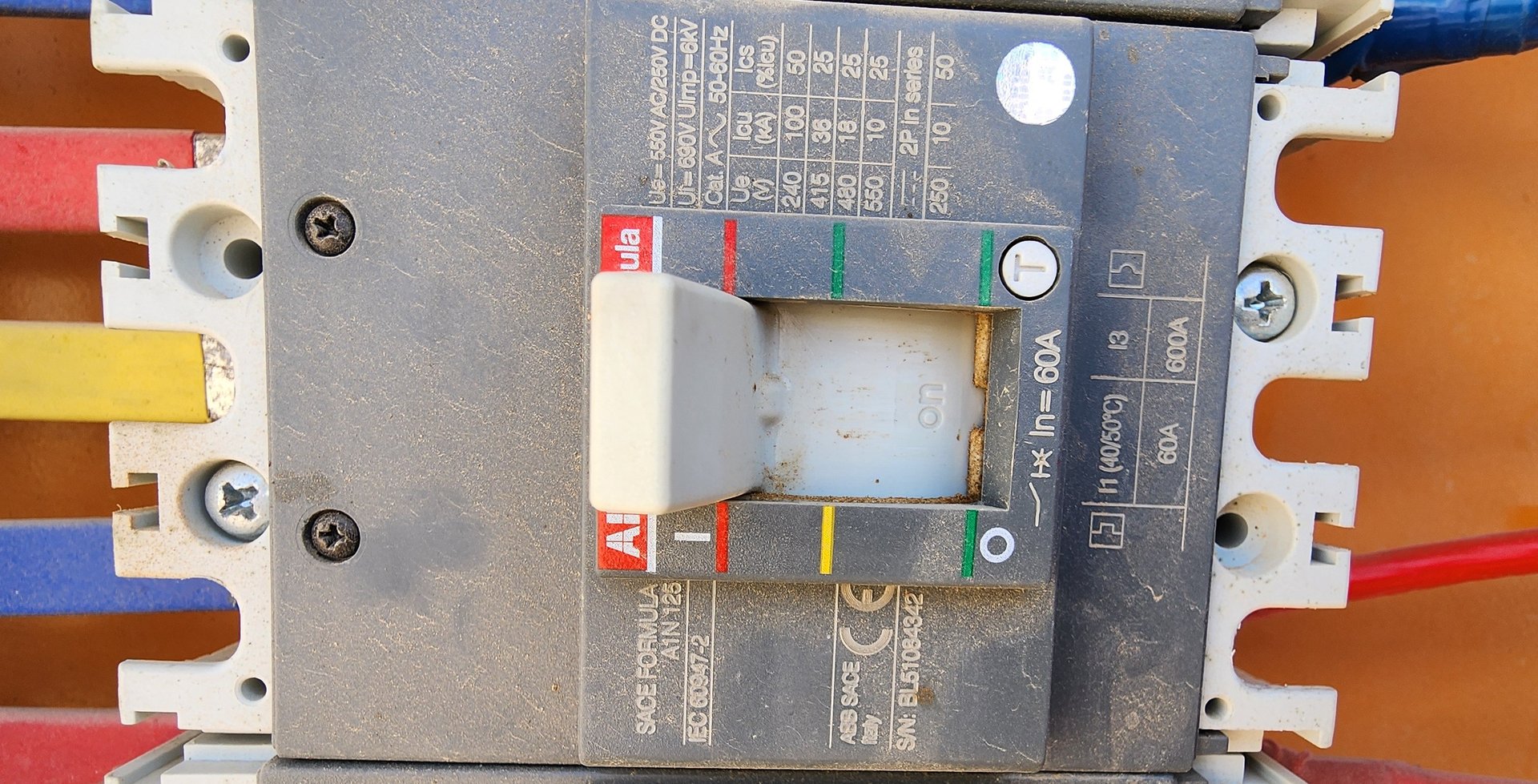

Description: 10mm2 conductor fed from 60A MCCB.
Signatures & QC
Inspector 1: Jonathan Sharp
Inspector 2: Giles Vincent-Edwards
QC: David Forbes (approved 15-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 15-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 15-JUN-2026 | QC Rejected | Pending QC | Jonathan Sharp | |
| 15-JUN-2026 | Pending QC | QC Rejected | David Forbes | Deficiency 5 and 6 Category; Both are the same issue but one is improper use / damaged and the other is poor workmanship |
| 13-JUN-2026 | Draft | Pending QC | Jonathan Sharp |
