Inspection-Report_TFSAFE_Full_ALQ26_SDP-1-W_113_15-06-26_1-6
CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-1-W_113_15-06-26_1-6
- Work Order
- TFS-ALQ26-2026-00012
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-1-W
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 15-JUN-2026
- Team
- 113
- Overall Rating
- Fair
- Location
- Located to the west of camp outside CHU-E25.
Summary of Findings
x 1 SDP. x 3 100A 3P MCCB's. x 6 63A 1P MCCB's. x 21 40A 3P MCCB's. x 10 32A 3P MCCB's. All cabling, terminations and earthing arrangements. Single core conductors run separately through a ferrous gland plate. The risk of eddy currents generating excessive heat is deemed negligible after load test. Ze test readings are within the maximum permitted tolerance of 0.8 Ohms.

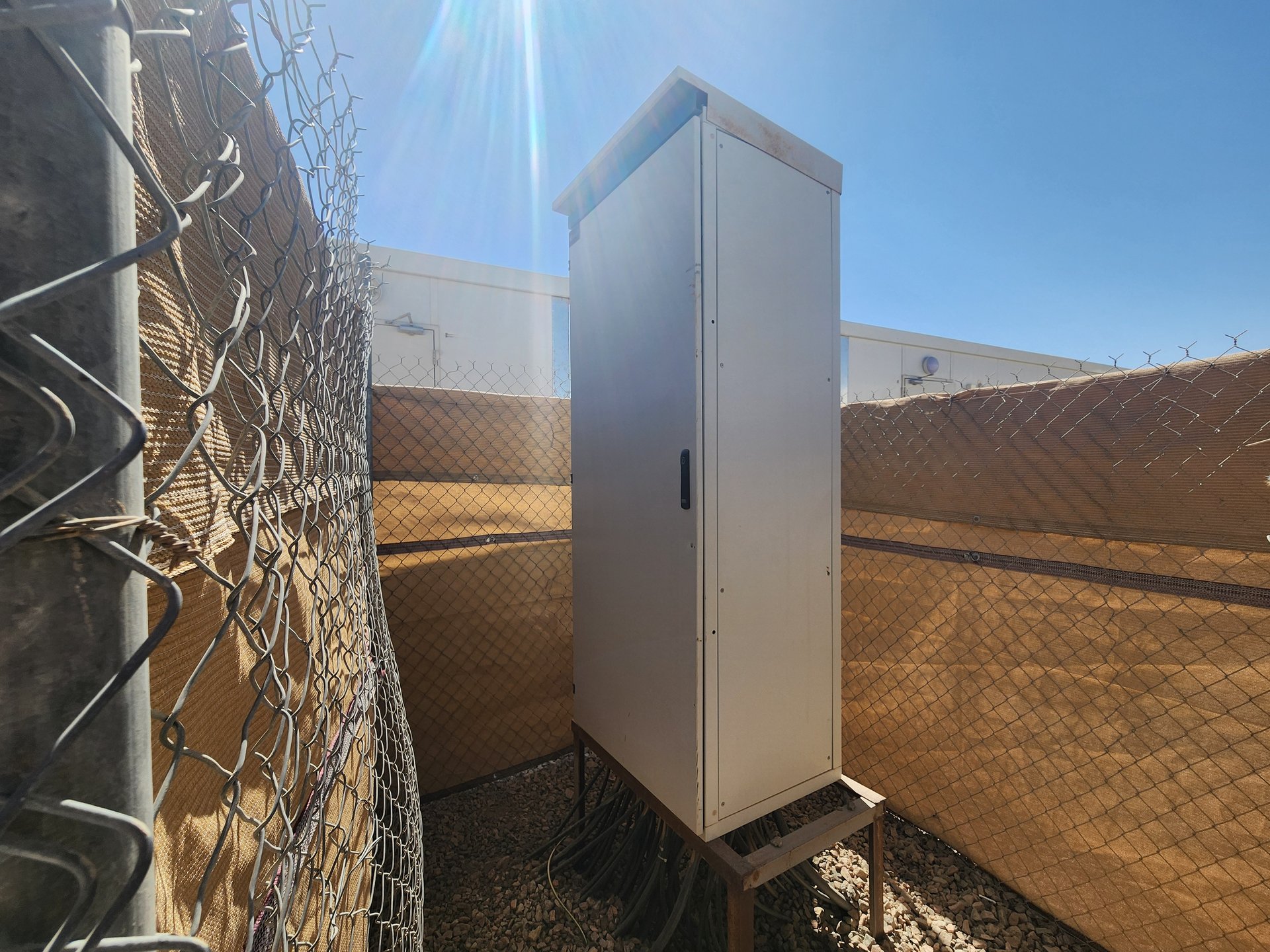

Building Picture
Deficiencies (6)
Location: SDP-1-W
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 642: Inspection
Action Taken: N/A
SOR Issued To: O&M Provider

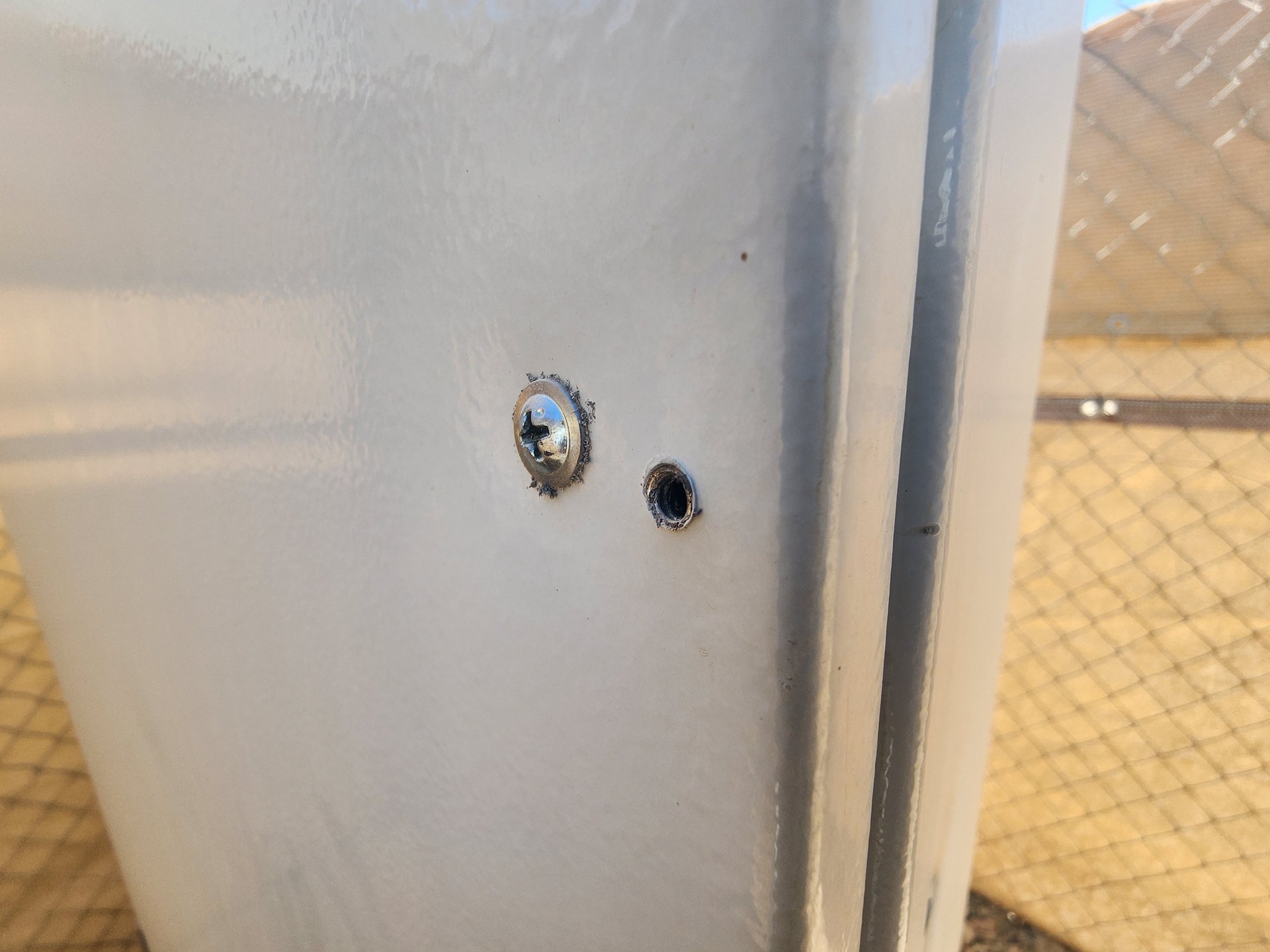

Description: Locking mechanism to door is damaged. Fixed into position with self-tapping screws. Access requires the use of a tool and SDP-1-W is fenced off.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: GND
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

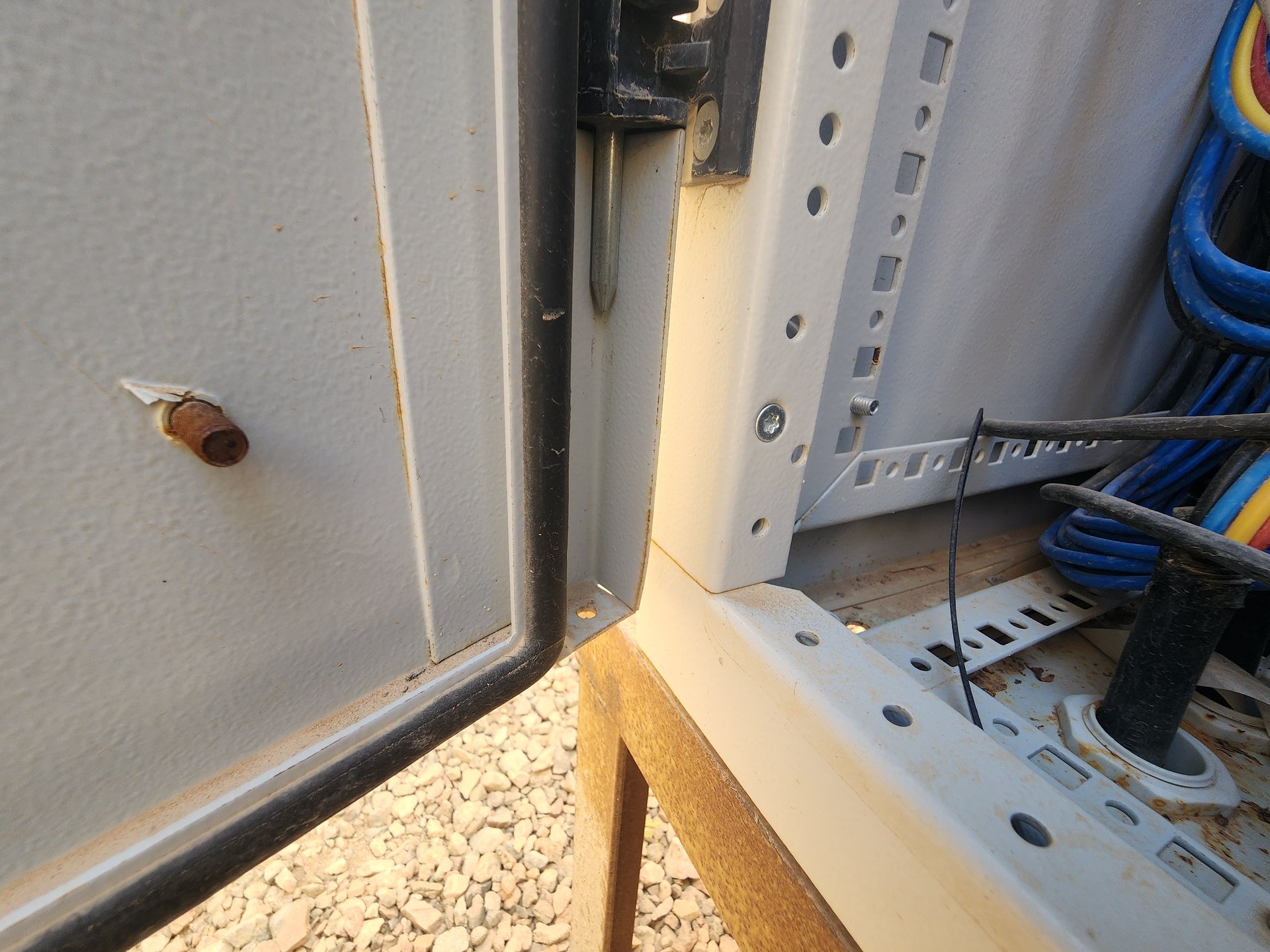

Description: No supplementary bond present to door.
Location: Within SDP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 14
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: O&M Provider

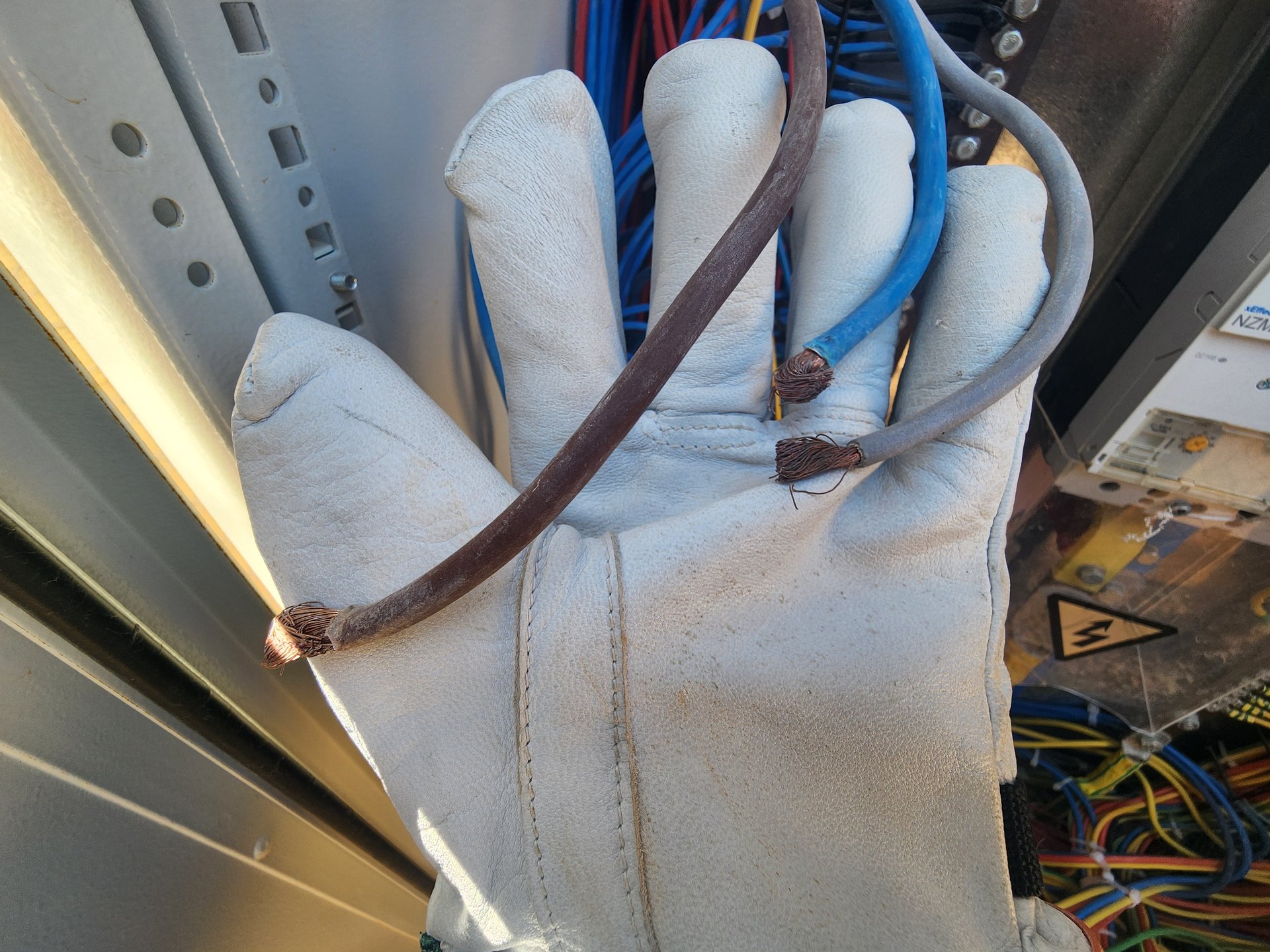

Description: Redundant outgoing circuits have bare ends left exposed.
Location: Within SDP, circuit 12/TP.
Category: Improper Use / Damaged
Equipment: GND
Occurrences: 1
Imminent Danger: Yes
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

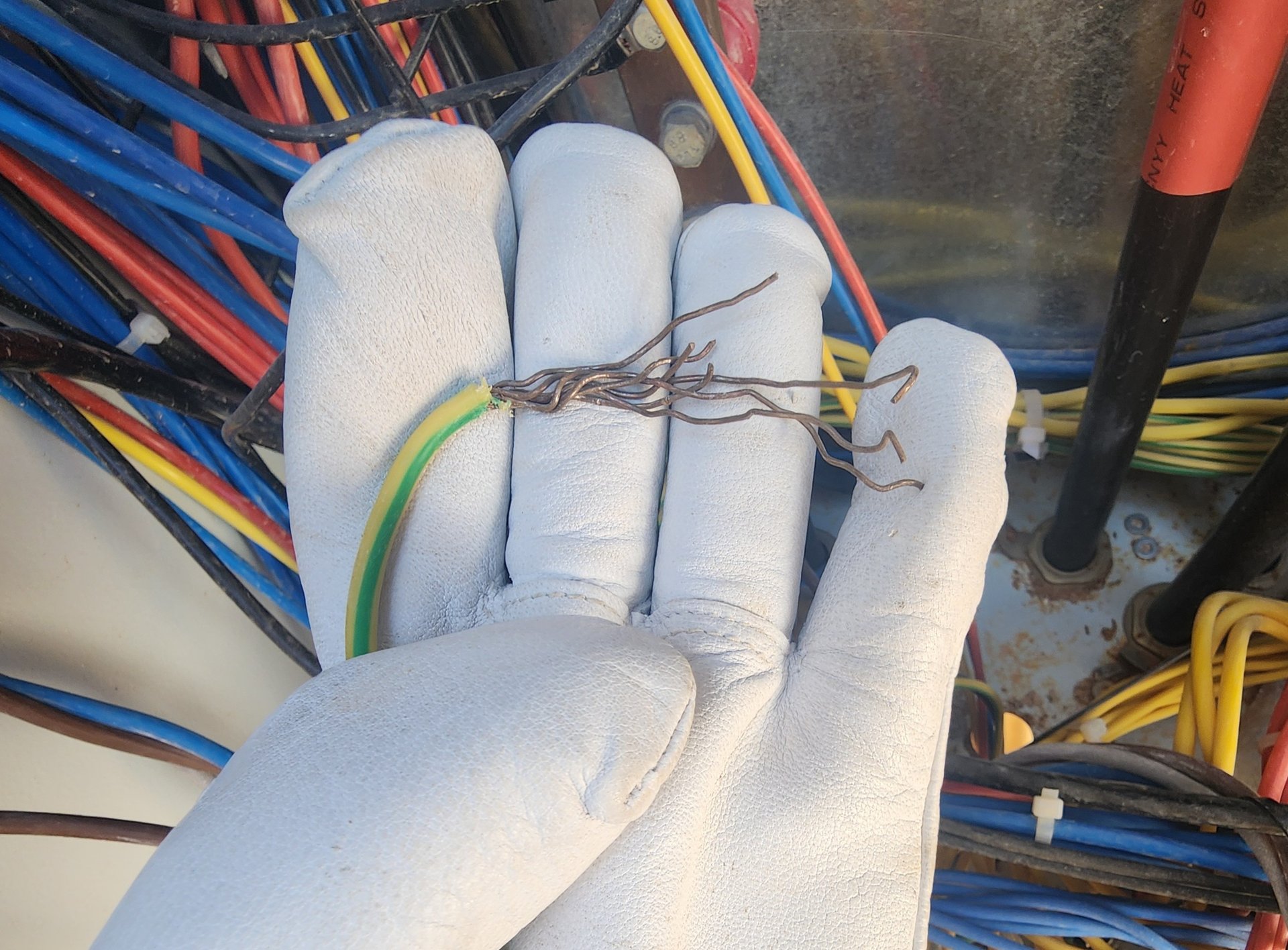

Description: CPC to circuit 12/TP has become disconnected.
Location: Within SDP, circuit 12/TP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: O&M Provider

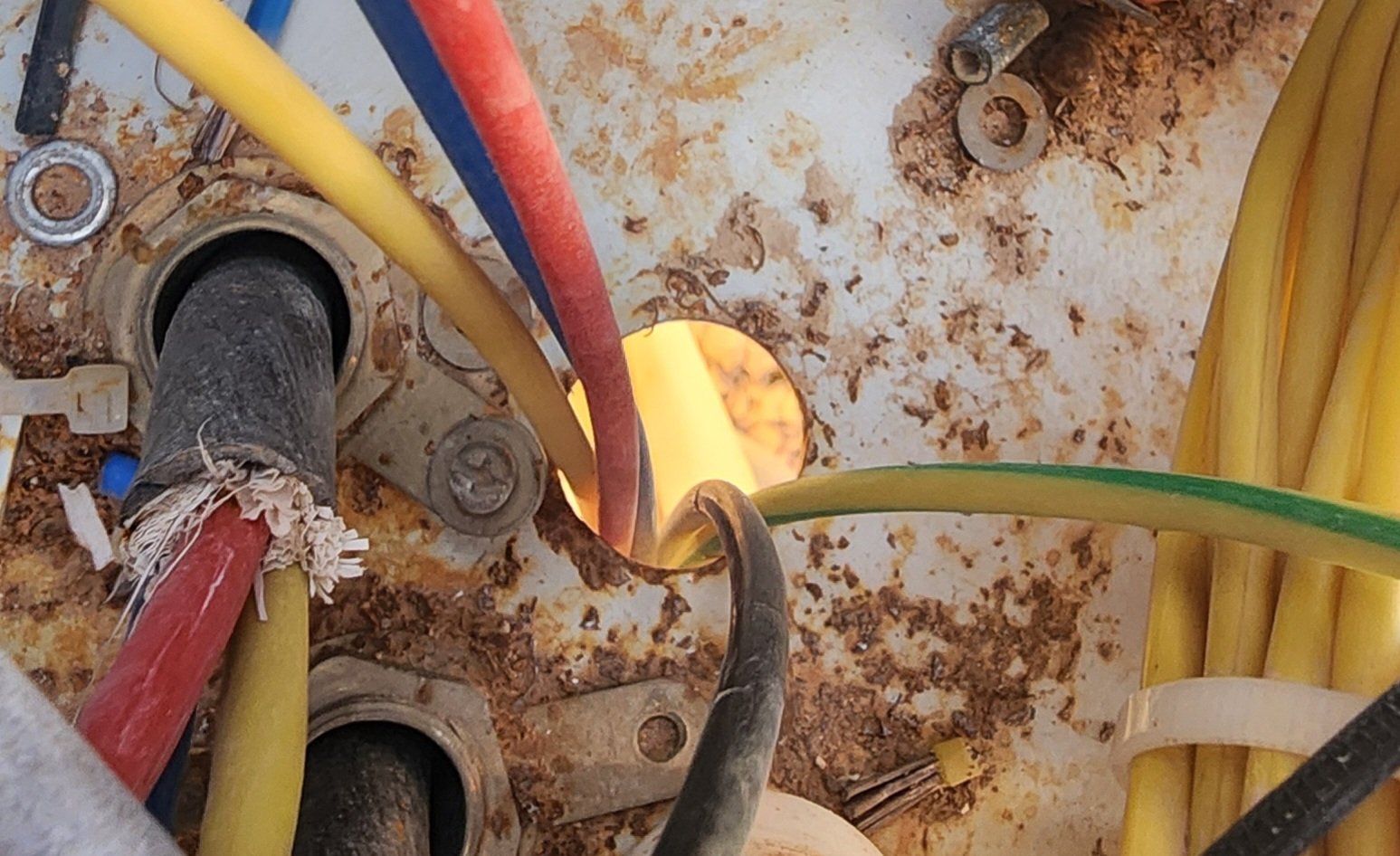

Description: No SWA gland in place to circuit 12/TP, providing abrasion protection.
Location: Within SDP, circuit 7/L2, 24/L1 and 24/L2.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 3
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider

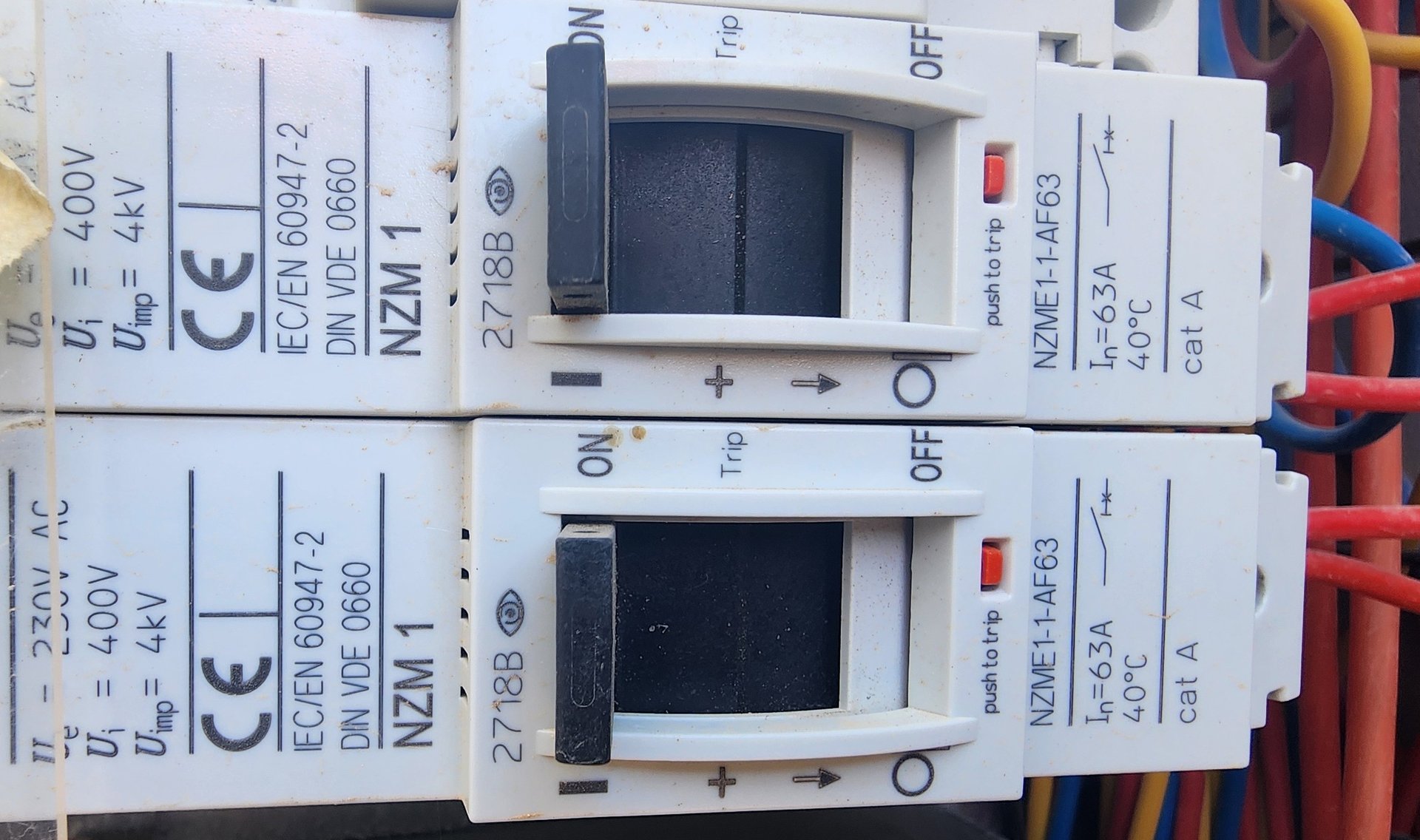

Description: Circuit 7/L2 - 10mm2 three-core SWA fed from 63A 1P MCCB. Circuit 24/L1 and 24/L2 - 6mm2 three-core SWA's fed from 63A 1P MCCB's.
Signatures & QC
Inspector 1: Jon Sharp
Inspector 2: Giles Vincent-Edwards
QC: David Forbes (approved 16-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 16-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 16-JUN-2026 | QC Rejected | Pending QC | - | |
| 15-JUN-2026 | Pending QC | QC Rejected | David Forbes | Deficiency 2 Description; issue we talked about needs corrected |
| 15-JUN-2026 | Draft | Pending QC | - |
