Inspection-Report_TFSAFE_Full_KFAB22_Oiltown-EC-130-OPS-2_116_18-06-26_1-6
CompleteReport Details
- TAG-ID
- TFSAFE_KFAB22_Oiltown-EC-130-OPS-2_116_18-06-26_1-6
- Work Order
- TFS-KFAB22-2026-00018
- Site
- KFAB (Jordan) (KFAB22)
- Building
- Oiltown-EC-130-OPS-2
- Building Type
- OFFICE
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 18-JUN-2026
- Team
- 116
- Overall Rating
- Fair
- Location
- Oiltown is adjacent to the airfield, north of Dufftown. The EC-130 OPS-2 office is within Oiltown.
Summary of Findings
Items inspected: 1x CDP. 3x Internal lights. 3x External lights. 3x Double sockets. 3x Single sockets. 3x 2-gang switches. 6x AC isolators for 3x AC systems. The EC-130 OPS-2 building contains 3 individually separated offices.

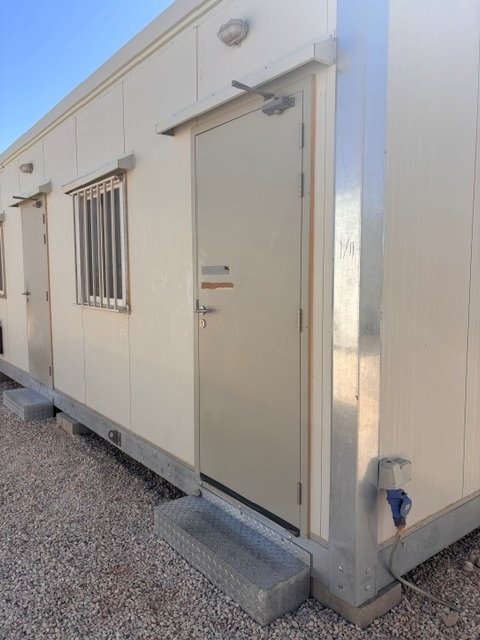

Building Picture
Deficiencies (6)
Location: Within the CDP.
Category: Improper Use / Damaged
Equipment: CDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Type AC RCD used. Type AC RCD is not suitable for this building.
Location: All circuits.
Category: Grounding and Bonding
Equipment: WLT
Occurrences: 6
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: High Zs reading of 1.95 ohms throughout the building.
Location: At light switches.
Category: Grounding and Bonding
Equipment: WLT
Occurrences: 3
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No CPC to light switches.

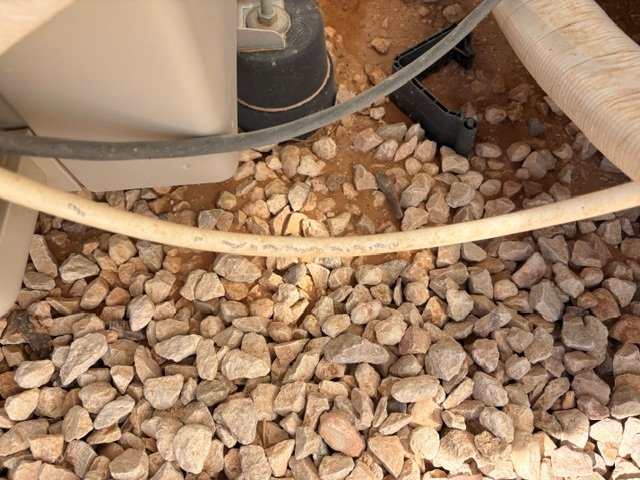

Location: At external AC condensers.
Category: Unlisted Equipment
Equipment: WLT
Occurrences: 3
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Unlisted cables.

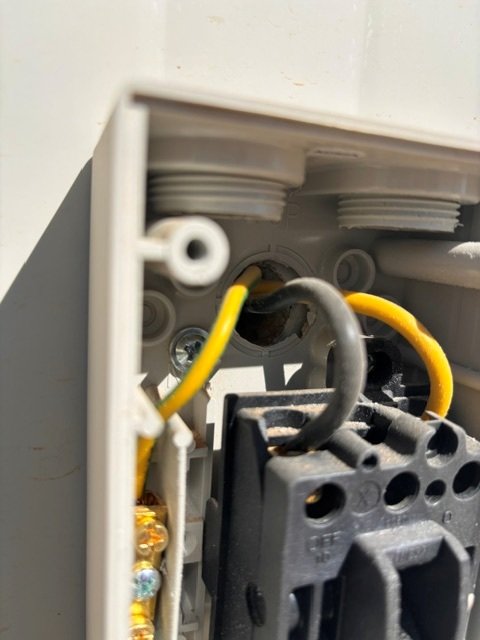

Location: At external AC condensers isolators.
Category: Improper Use / Damaged
Equipment: WLT
Occurrences: 3
Imminent Danger: No
Code Source: British Standard
Code Reference: 522: Selection and erection of wiring systems in relation to external influences
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No mechanical protection for singles passing through the metal wall.

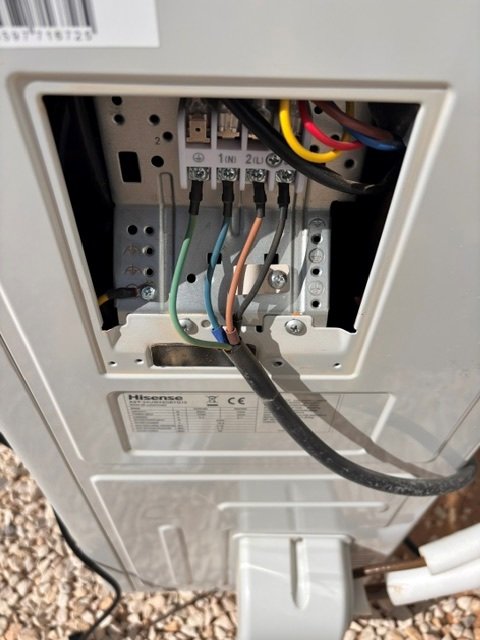

Location: At external AC condensers.
Category: Improper Use / Damaged
Equipment: WLT
Occurrences: 3
Imminent Danger: No
Code Source: British Standard
Code Reference: 522: Selection and erection of wiring systems in relation to external influences
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Cable clips not used: strain on terminations.
Signatures & QC
Inspector 1: Salomon Munoz
Inspector 2: Jongi Ledbetter
QC: David Forbes (approved 19-JUN-2026)
Status History
2
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 19-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 18-JUN-2026 | Draft | Pending QC | Salomon Munoz |
