Inspection-Report_TFSAFE_Full_ALQ26_SDP-3-W_113_19-06-26_1-3
Pending QCReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-3-W_113_19-06-26
- Work Order
- TFS-ALQ26-2026-00016
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-3-W
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 19-JUN-2026
- Team
- 113
- Overall Rating
- Fair
- Location
- Located on the western perimeter, south of gen-pad.
Summary of Findings
x 1 SDP. x 4 32A 3P MCCB's. x 18 40 1P MCCB's. x 1 630A MCCB. All cabling, terminations and earthing arrangements. Single core conductors run separately through a ferrous gland plate. The risk of eddy currents generating excessive heat is deemed to be negligible after load test. Ze readings are within the maximum permitted tolerance of 0.8 Ohms.

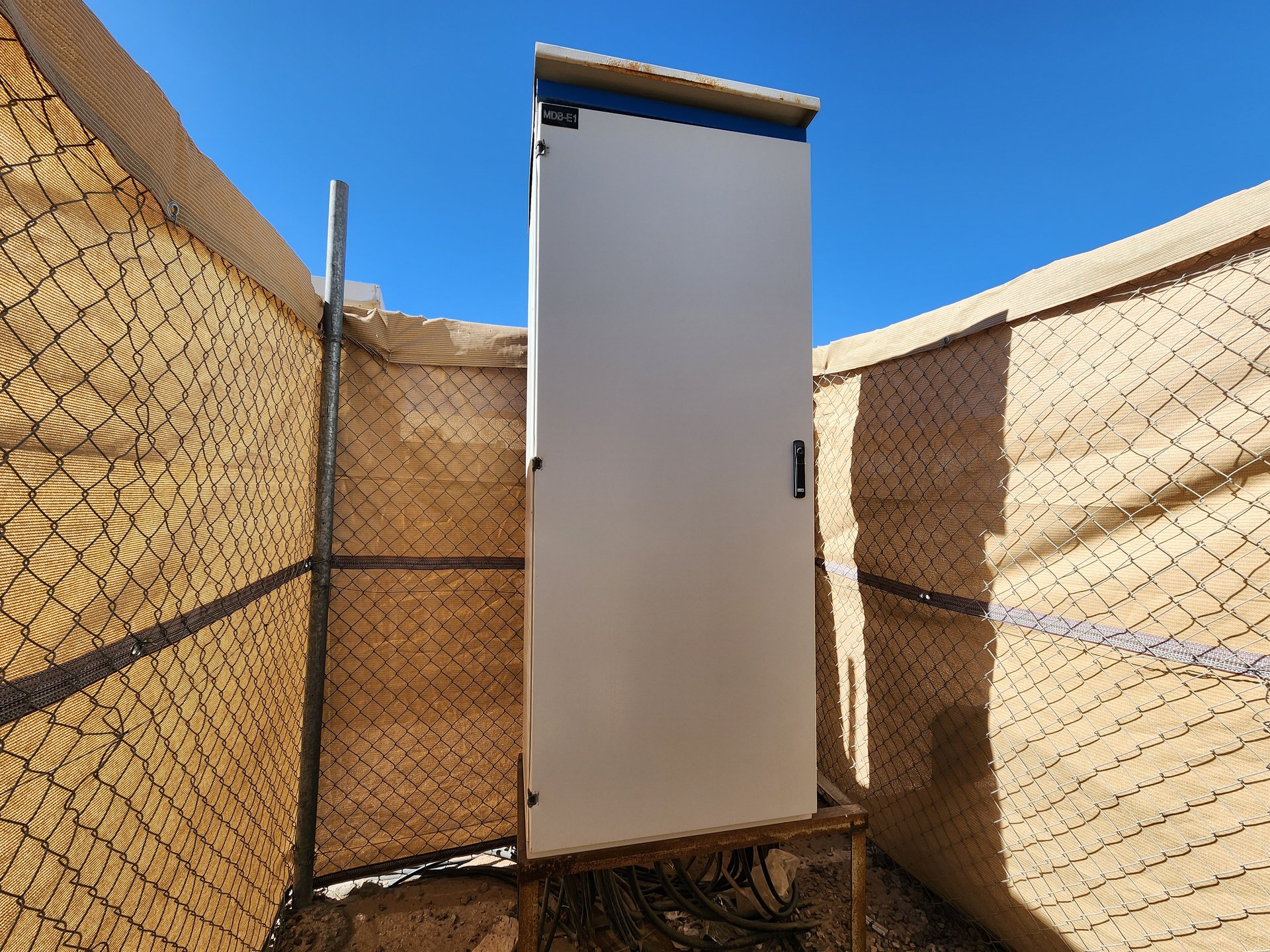

Building Picture
Deficiencies (3)
Location: SDP-3-W.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 642: Inspection
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Locking mechanism to door is damaged. Dead front is fixed securely in place providing a barrier, and SDP-3-W is fenced off.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: GND
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No supplementary bond present to door.

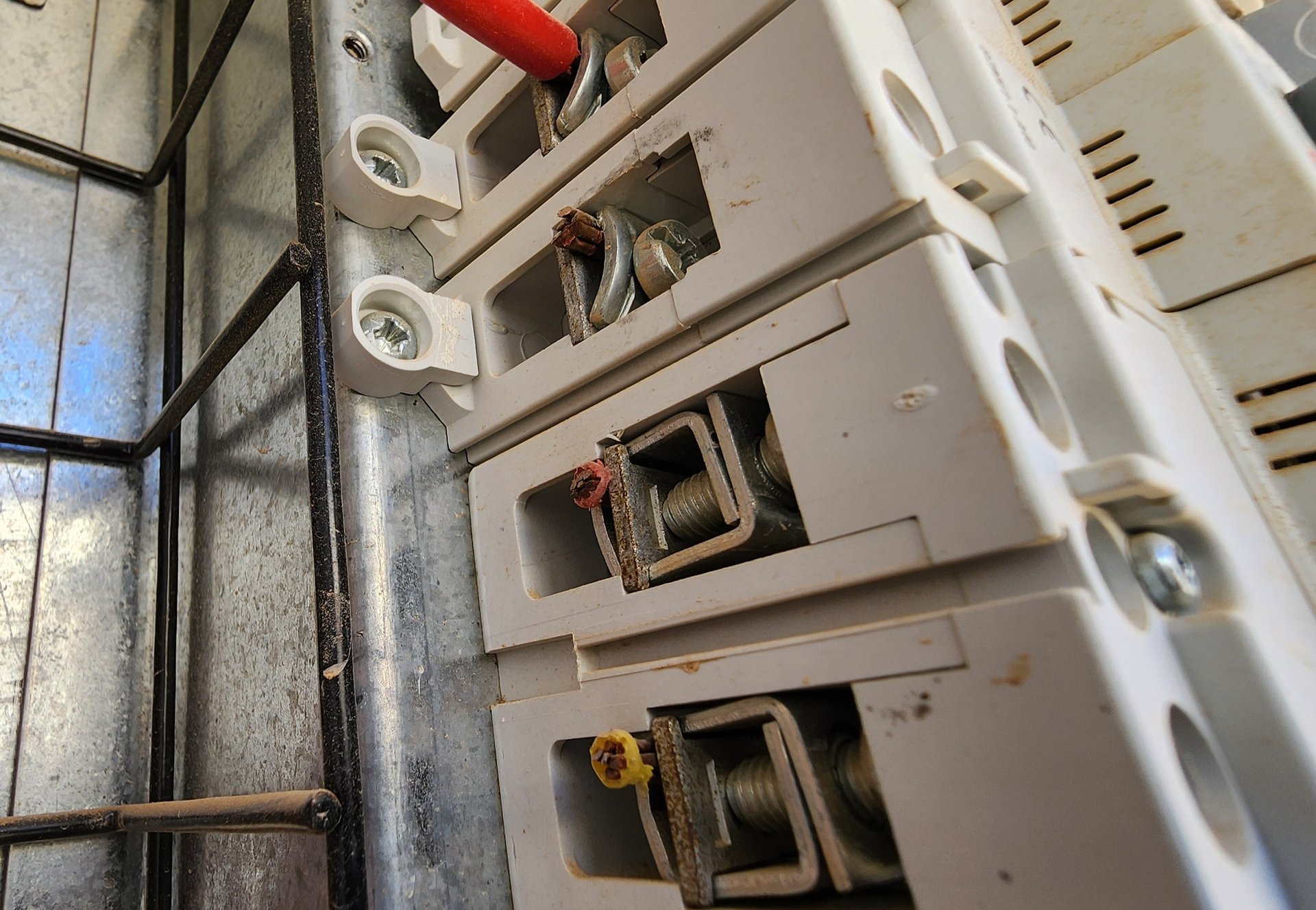

Location: Within SDP, circuit 3/TP, 6/TP, 15/TP and 16/TP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 12
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: Task Force SAFE
Description: Redundant conductors have not been safely removed from protective devices.
Signatures & QC
Inspector 1: Jon Sharp (signed 2026-06-20)
Inspector 2: Giles Vincent-Edwards (signed 2026-06-20)
Status History
3
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 20-JUN-2026 | QC Rejected | Pending QC | Jonathan Sharp | |
| 19-JUN-2026 | Pending QC | QC Rejected | David Forbes | Inspection Info; Location: Located on the western perimeter, south pf gen-pad. Should that be south of gen-pad? |
| 19-JUN-2026 | Draft | Pending QC | Jonathan Sharp |
