Inspection-Report_TFSAFE_Full_KFAB22_Oiltown-LSAU-Female_116_03-06-26_1-6
CompleteReport Details
- TAG-ID
- TFSAFE_KFAB22_Oiltown-LSAU-Female_116_03-06-26_1-6
- Work Order
- TFS-KFAB22-2026-00003
- Site
- KFAB (Jordan) (KFAB22)
- Building
- Oiltown-LSAU-Female
- Building Type
- LSAU
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 03-JUN-2026
- Team
- 116
- Overall Rating
- Fair
- Location
- Oiltown is adjacent to the airfield, north of Dufftown. The Female LSAU is within Oiltown.
Summary of Findings
4x 4’ light fittings. 11x round LED light fittings. 2x 2-gang light switches. 3x 1-gang light switches. 2x Internal AC isolators. 2x External AC isolators. 1x water heater isolators. 1x CDP. 2x external lights.

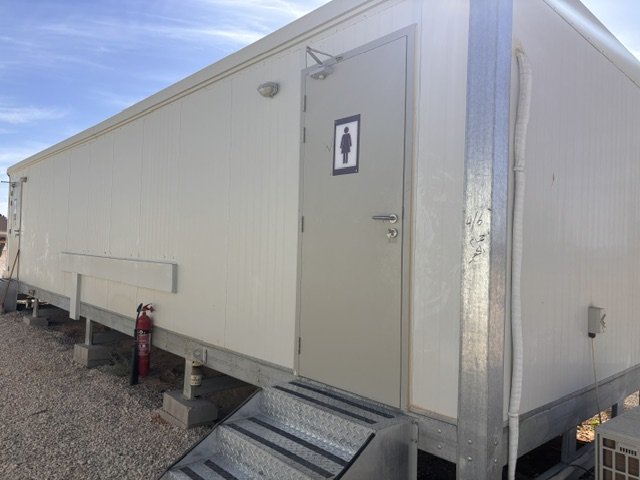

Building Picture
Deficiencies (6)
Location: Within lighting circuit including switches.
Category: Grounding and Bonding
Equipment: LTG
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: No CPC to lighting circuit.
Location: Within the CDP.
Category: Improper Use / Damaged
Equipment: CDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Type AC RCD used. Type AC RCD is not suitable for this building.

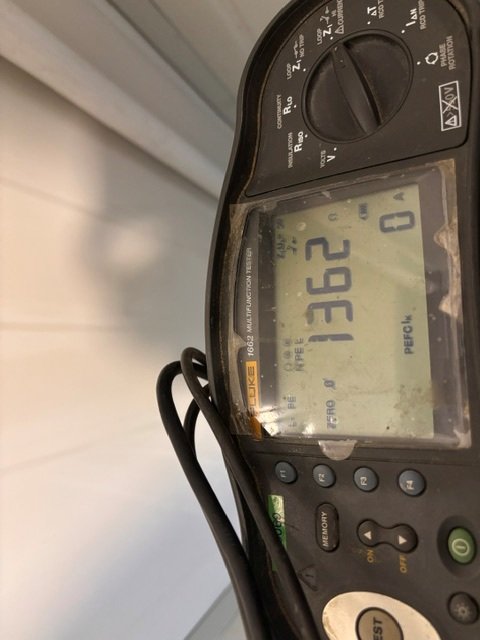

Location: All circuits.
Category: Grounding and Bonding
Equipment: WLT
Occurrences: 6
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: High Zs reading of 1362 ohms throughout the LSAU.
Location: Within external A/C condenser supply cables.
Category: Unlisted Equipment
Equipment: WLT
Occurrences: 2
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Unlisted cables.

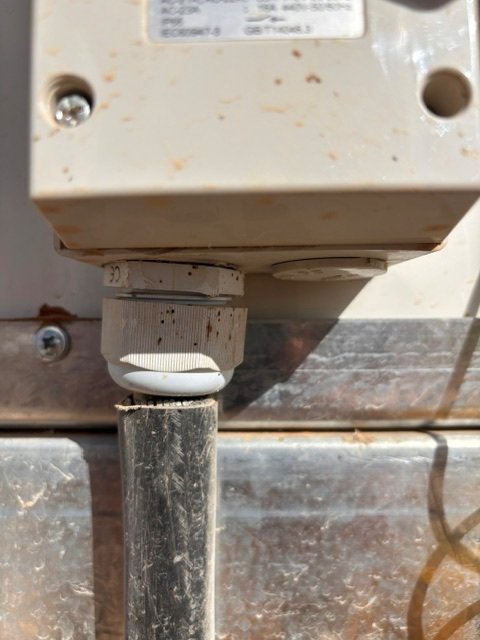

Location: External of building, main isolator.
Category: Grounding and Bonding
Equipment: WLT
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider
Description: SWA cable not bonded to earth.

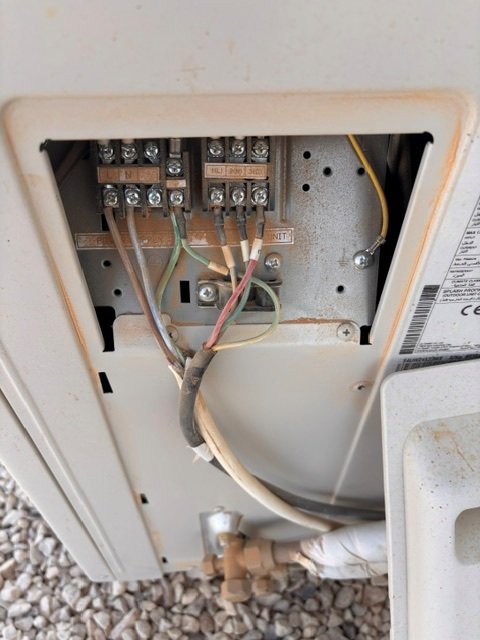

Location: Within external AC condensers.
Category: Improper Use / Damaged
Equipment: WLT
Occurrences: 2
Imminent Danger: No
Code Source: British Standard
Code Reference: 522: Selection and erection of wiring systems in relation to external influences
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Cable clips not used: strain on terminations.
Signatures & QC
Inspector 1: Salomon Munoz
Inspector 2: Jongi Ledbetter
QC: David Forbes (approved 04-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 04-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 04-JUN-2026 | QC Rejected | Pending QC | Salomon Munoz | |
| 04-JUN-2026 | Pending QC | QC Rejected | David Forbes | Inspection Info Location; Male needs changed to female |
| 03-JUN-2026 | Draft | Pending QC | Salomon Munoz |
