Inspection-Report_TFSAFE_Full_KFAB22_Oiltown-Water-Point_116_04-06-26_1-7
CompleteReport Details
- TAG-ID
- TFSAFE_KFAB22_Oiltown-Water-Point_116_04-06-26_1-7
- Work Order
- TFS-KFAB22-2026-00004
- Site
- KFAB (Jordan) (KFAB22)
- Building
- Oiltown-Water-Point
- Building Type
- OTHER
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 04-JUN-2026
- Team
- 116
- Overall Rating
- Fair
- Location
- Oiltown is adjacent to the airfield, north of Dufftown. The Water Point is adjacent to Oiltown.
Summary of Findings
Items inspected: 1x Motor control station. All cables.

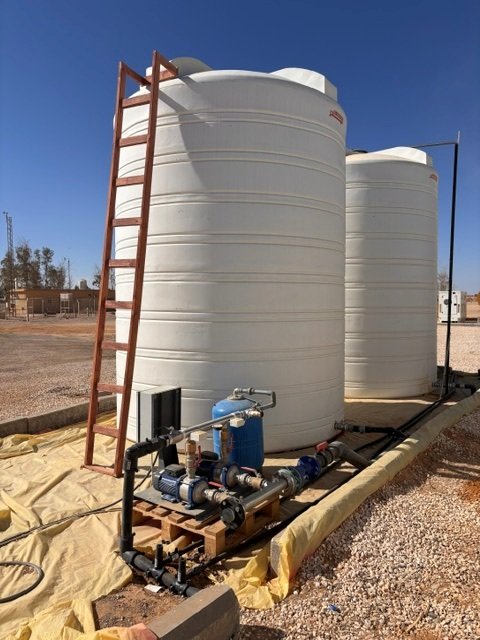

Building Picture
Deficiencies (7)
Location: At motor control station.
Category: Grounding and Bonding
Equipment: PNL
Occurrences: 1
Imminent Danger: Yes
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: Mitigated by notifying O&M provider for repairs.
SOR Issued To: O&M Provider
Description: High Zs reading of 842 ohms at the motor control station.
Location: At motor control station.
Category: Grounding and Bonding
Equipment: WLT
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

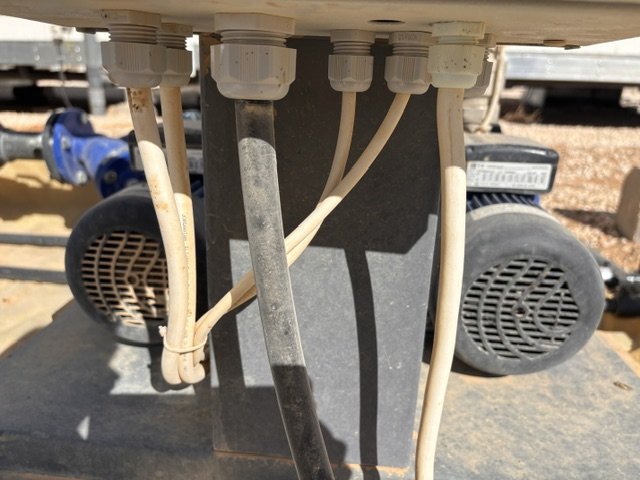

Description: SWA cable not bonded to earth.
Location: At motor control station.
Category: Unlisted Equipment
Equipment: WLT
Occurrences: 5
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: Unlisted cables.
Location: At motor control station.
Category: Improper Terminations
Equipment: WLT
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 526: Electrical connections
Action Taken: N/A
SOR Issued To: O&M Provider

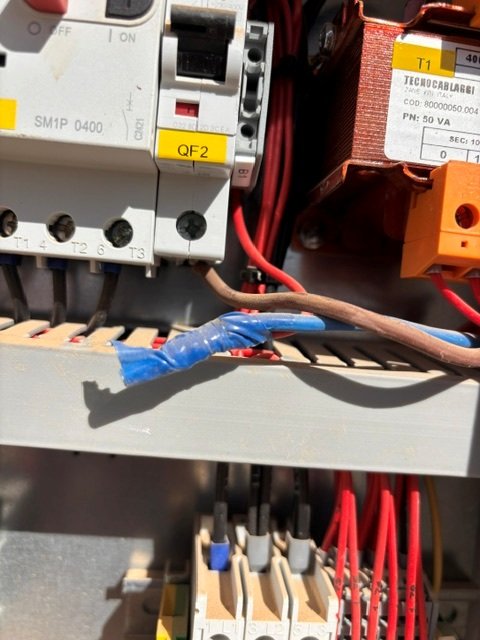

Description: Twist taped connections made.
Location: Within the motor control station.
Category: Grounding and Bonding
Equipment: PNL
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

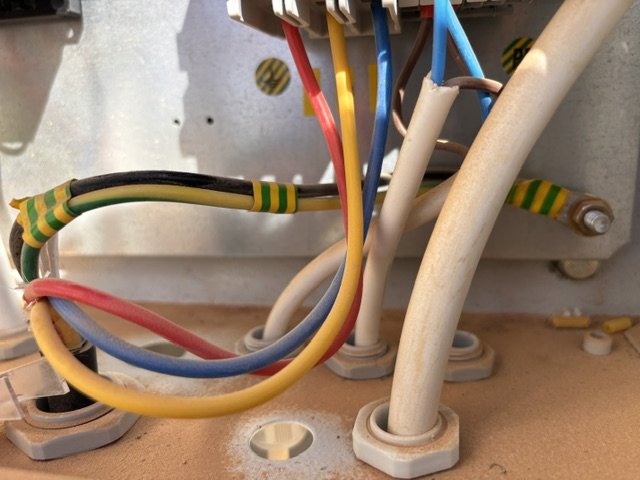

Description: Main earth and neutral terminated at same point.
Location: Within the motor control station.
Category: Improper Use / Damaged
Equipment: PNL
Occurrences: 2
Imminent Danger: No
Code Source: British Standard
Code Reference: 542: Earthing arrangements
Action Taken: N/A
SOR Issued To: O&M Provider

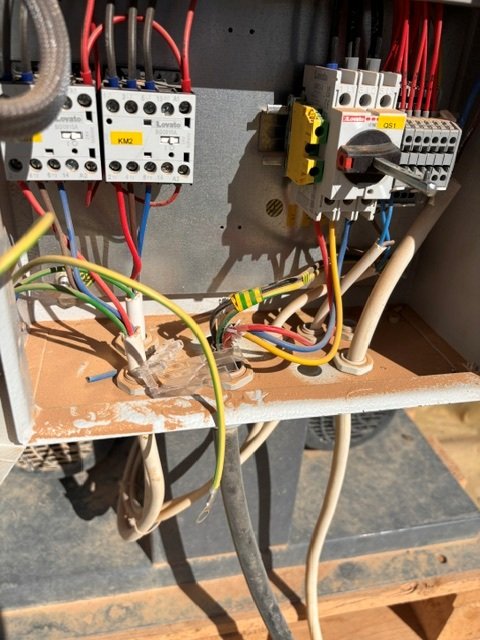

Description: Earth bond left unterminated.
Location: Adjacent to motor control station.
Category: Improper Use / Damaged
Equipment: WLT
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 522: Selection and erection of wiring systems in relation to external influences
Action Taken: N/A
SOR Issued To: O&M Provider

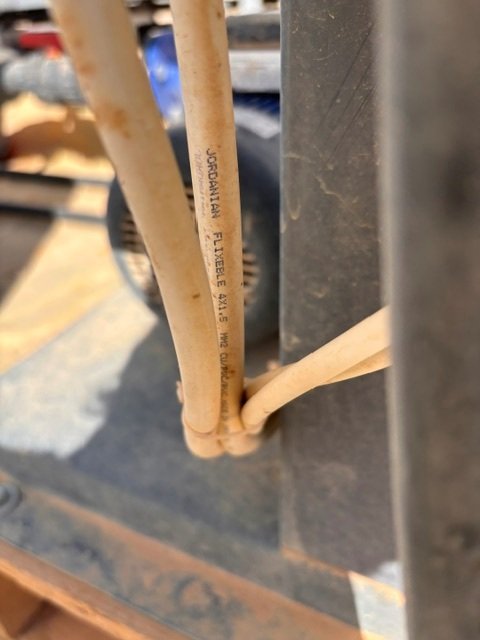

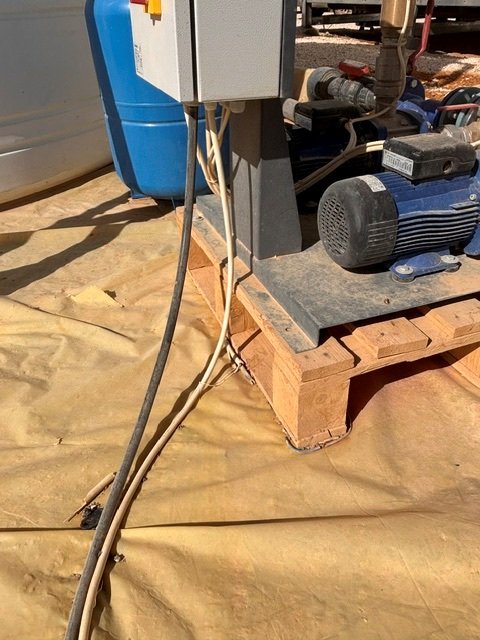

Description: No mechanical protection installed on cable.
Signatures & QC
Inspector 1: Salomon Munoz
Inspector 2: Jongi Ledbetter
QC: David Forbes (approved 06-JUN-2026)
Status History
4
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 06-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 06-JUN-2026 | QC Rejected | Pending QC | Salomon Munoz | |
| 05-JUN-2026 | Pending QC | QC Rejected | David Forbes | Deficiencies locations; motor control station or Motor control station or Motor Control Station each location has a different one. |
| 04-JUN-2026 | Draft | Pending QC | Salomon Munoz |
