Inspection-Report_TFSAFE_Full_ALQ26_SDP-2-1-E_113_10-06-26_1-8
CompleteReport Details
- TAG-ID
- TFSAFE_ALQ26_SDP-2-1-E_113_10-06-26_1-8
- Work Order
- TFS-ALQ26-2026-00008
- Site
- Al Quwayrah (ALQ26)
- Building
- SDP-2-1-E
- Building Type
- SDP
- System Voltage
- 230/400
- Code Standard
- British Standard
Inspection Info
- Phase
- Full Inspection
- Date
- 10-JUN-2026
- Team
- 113
- Overall Rating
- Poor
- Location
- Located behind reefer units on the northeast perimeter.
Summary of Findings
x 1 SDP. x 2 125A 3P MCCB's. x 2 100A 3P MCCB's. x 4 63A 3P MCCB's. x 2 32A 3P MCCB's. x 3 32A 1P MCCB's. x 1 20A 1P MCCB. All cabling, terminations and earthing arrangements. Multiple outgoing circuits have not been crimped. Earth path is by way of steel wire armouring and a 35mm ground electrode conductor.

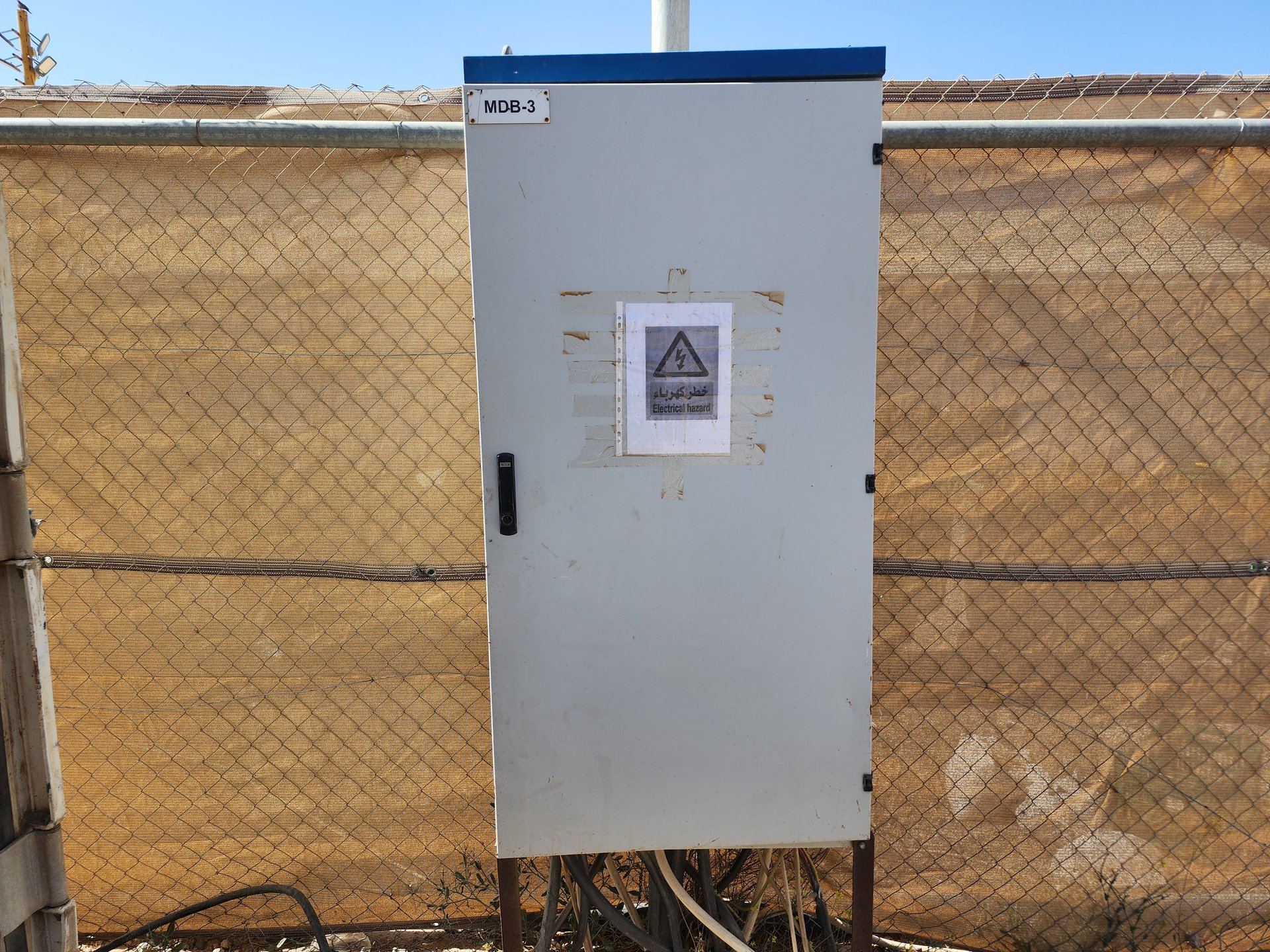

Building Picture
Deficiencies (8)
Location: South of reefer units.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: Yes
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: Makeshift lock installed, signs in place and personnel informed.
SOR Issued To: O&M Provider

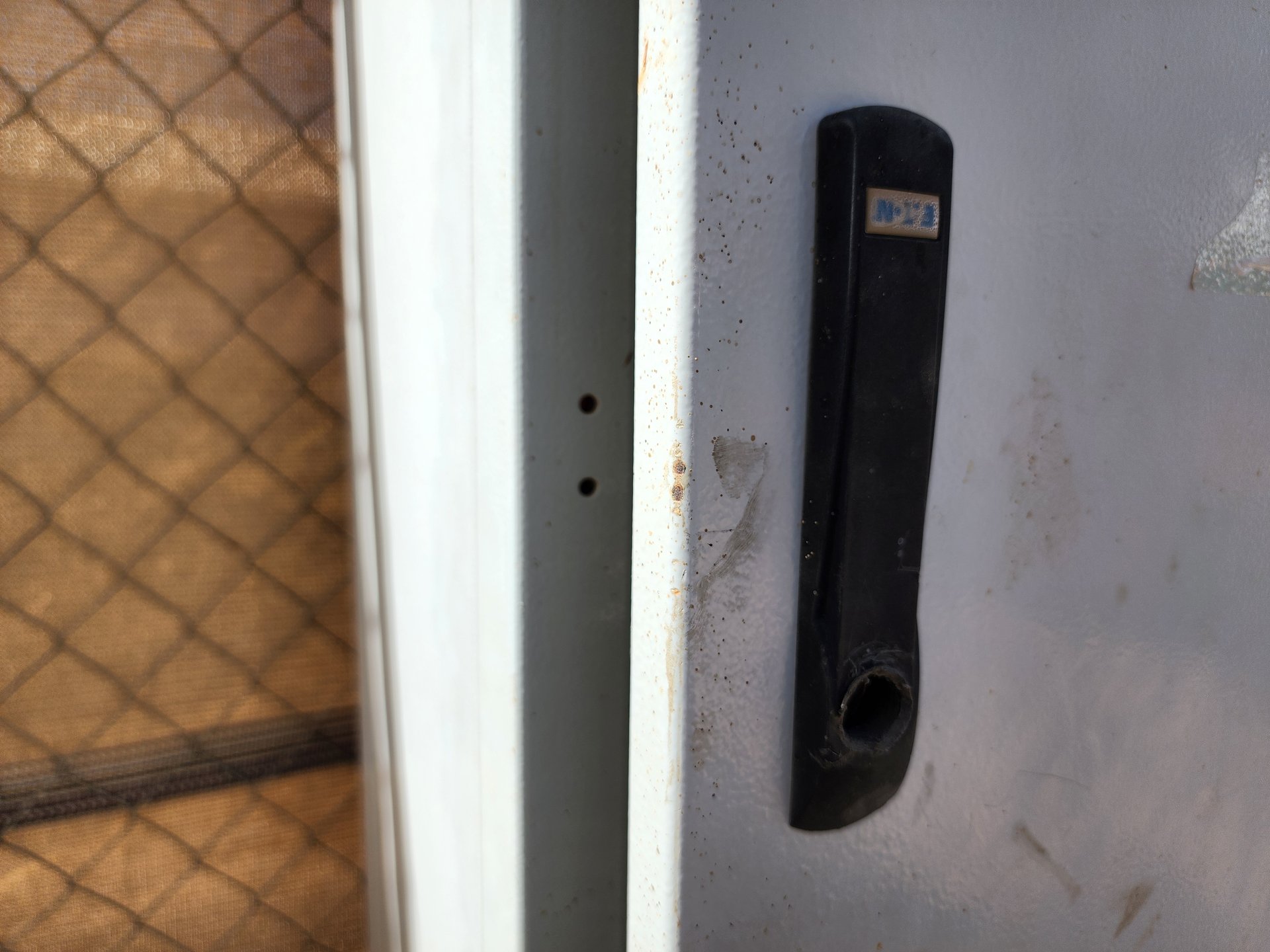

Description: Locking mechanism to SDP is damaged, allowing access to live parts.
Location: South of reefer units.
Category: Unlisted Equipment
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 511: Compliance with standards
Action Taken: N/A
SOR Issued To: O&M Provider
Description: SDP-2-1-E is unlisted.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

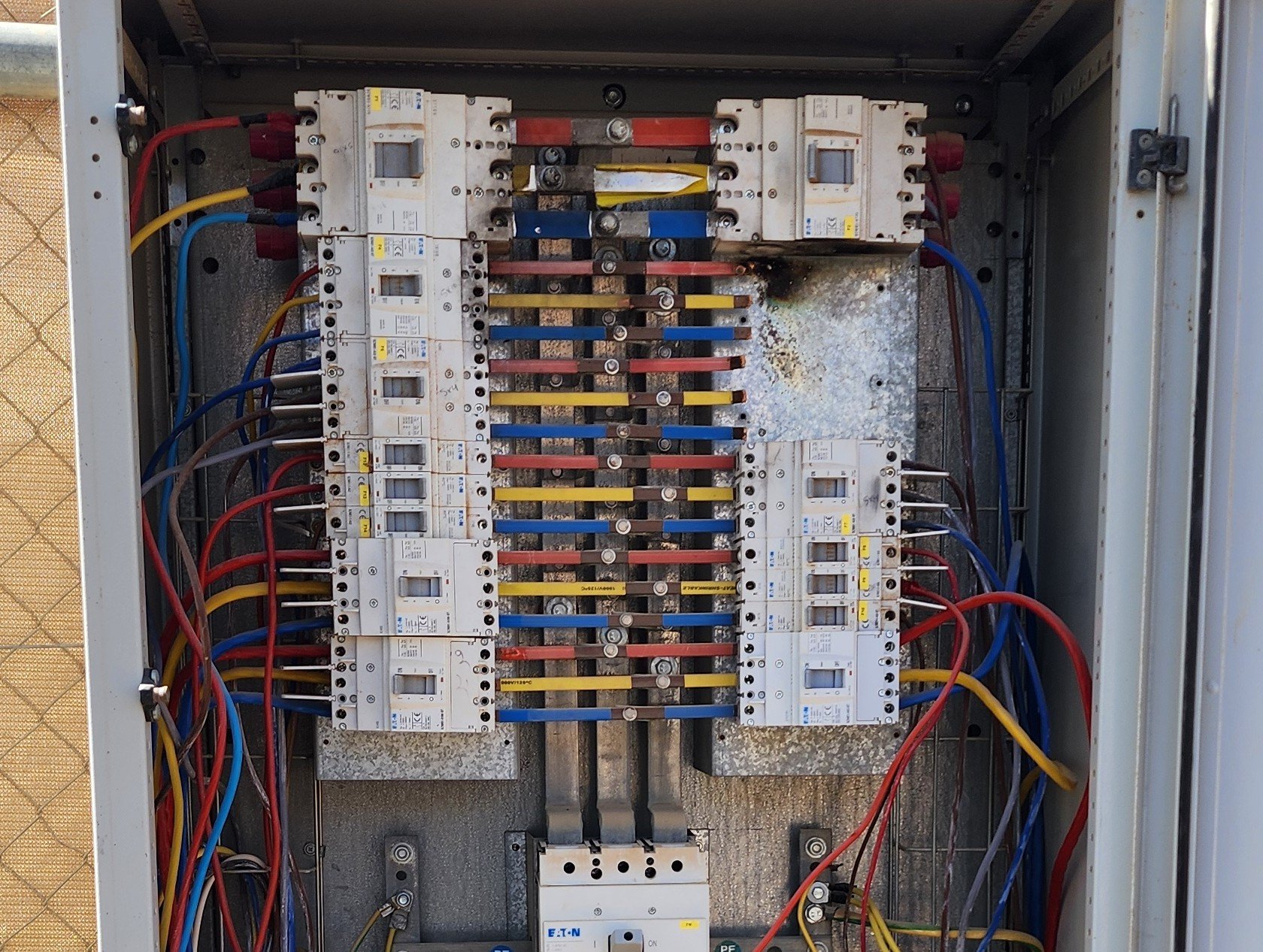

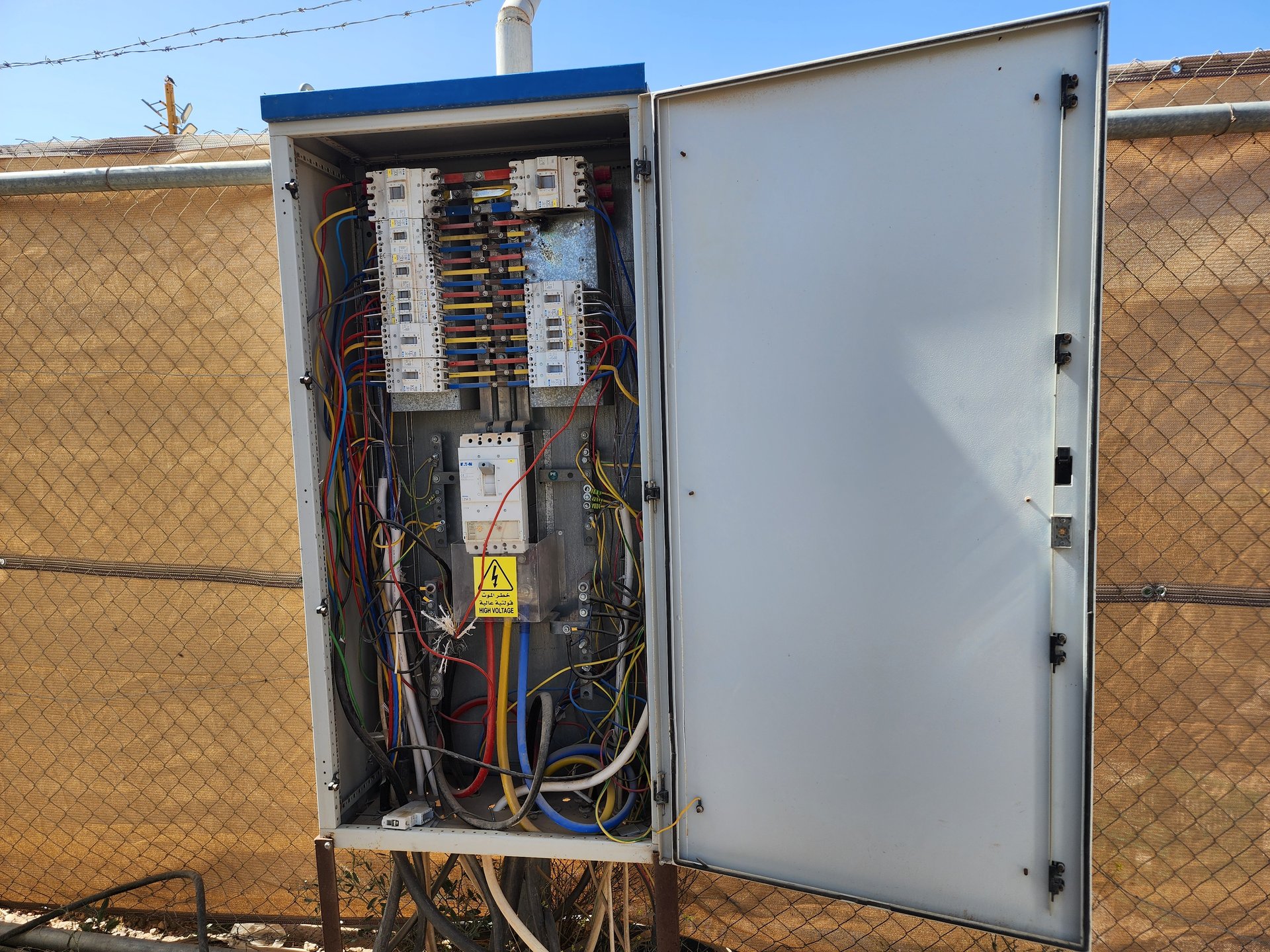

Description: Dead front is missing, allowing access to live parts.
Location: Within SDP.
Category: Grounding and Bonding
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 132: Protection against electric shock
Action Taken: N/A
SOR Issued To: O&M Provider

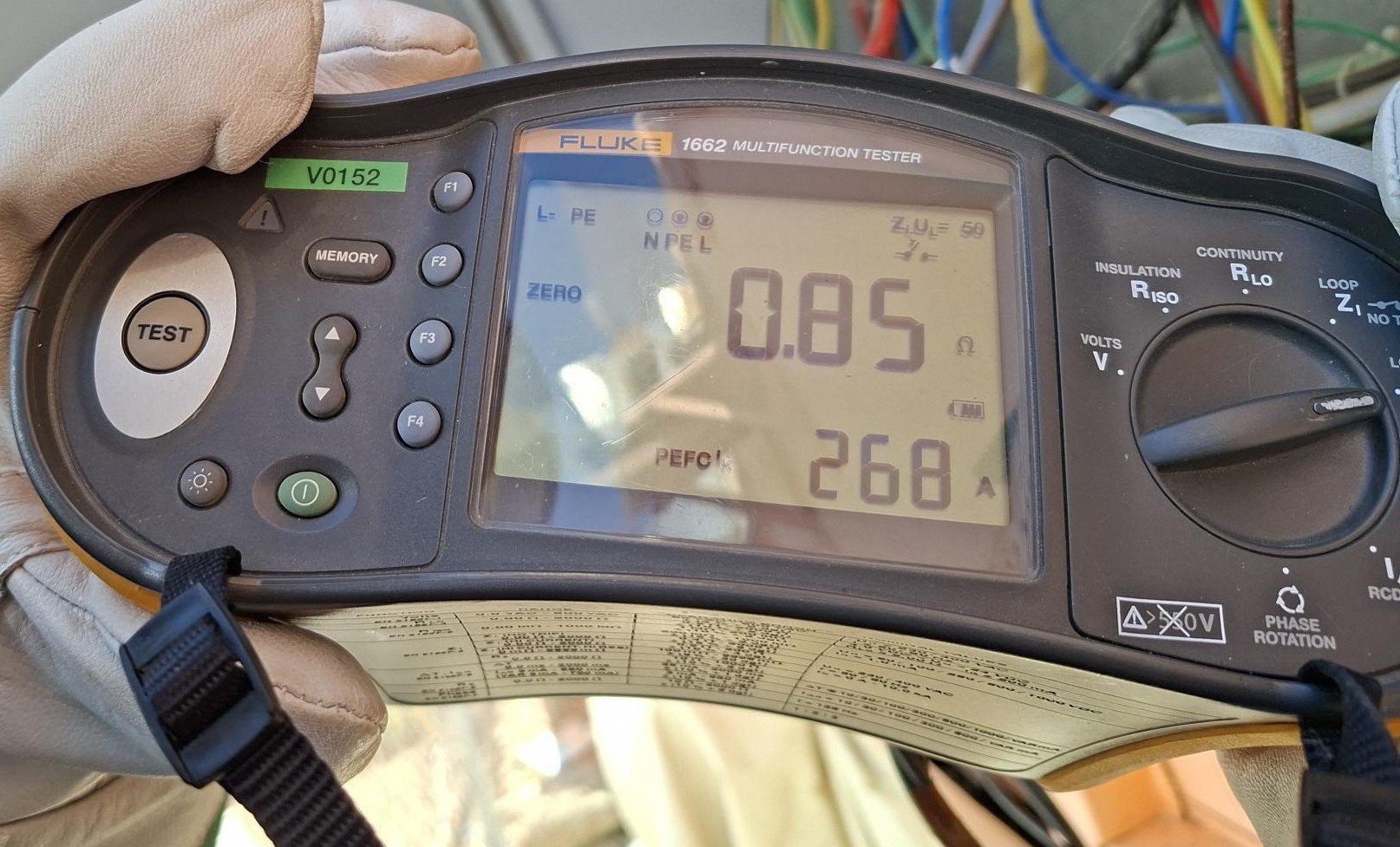

Description: Ze reading of 0.85 Ohms exceeds the maximum permitted tolerance of 0.8 Ohms.
Location: Outgoing circuits 12/TP, bottom of SDP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 1
Imminent Danger: No
Code Source: British Standard
Code Reference: 642: Inspection
Action Taken: N/A
SOR Issued To: O&M Provider

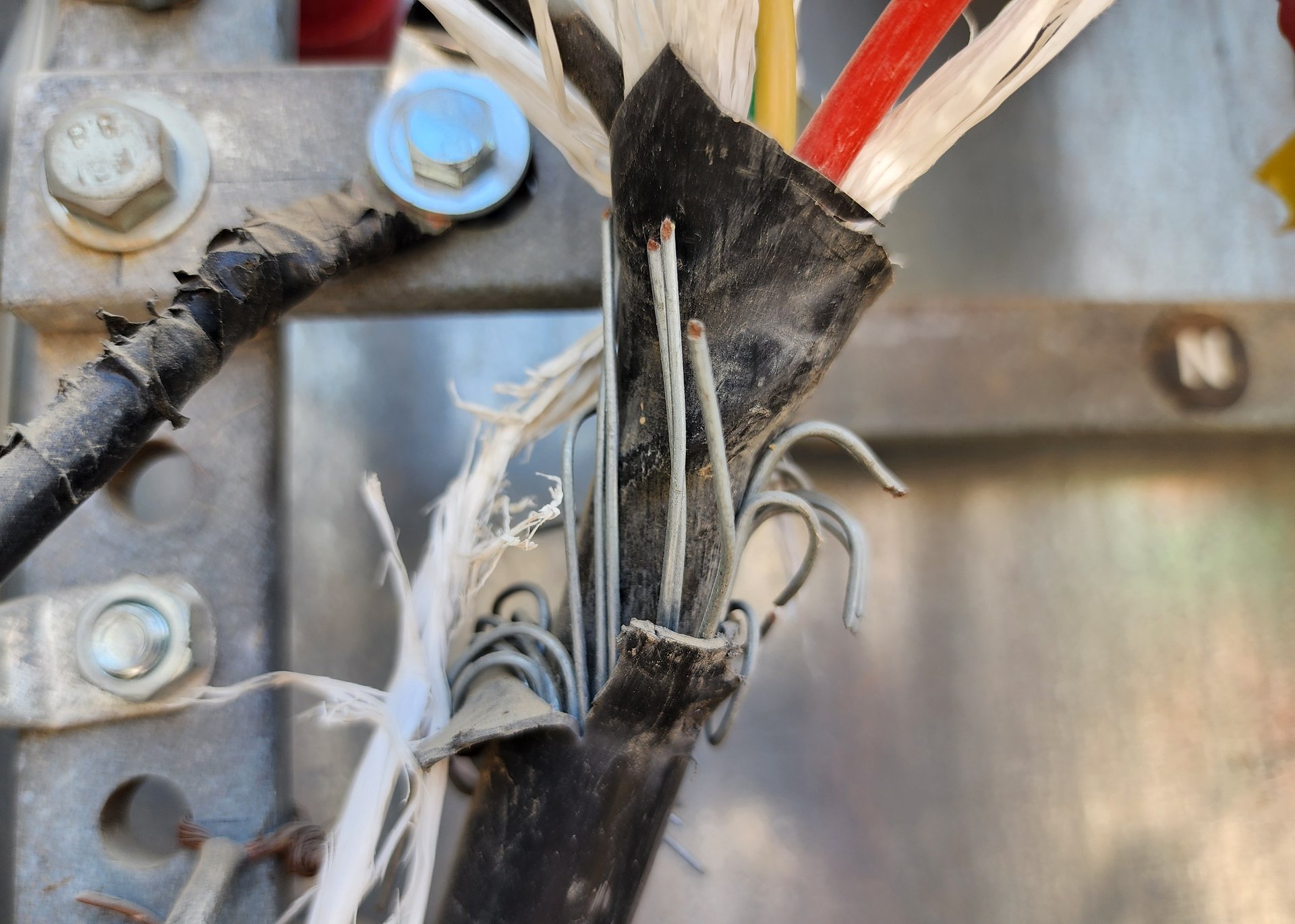

Description: Exposed 3 phase single insulated conductors to outgoing circuit 12/TP.
Location: Within SDP.
Category: Improper Use / Damaged
Equipment: SDP
Occurrences: 6
Imminent Danger: No
Code Source: British Standard
Code Reference: Appx 4: Current carrying capacities and voltage drop for cables
Action Taken: N/A
SOR Issued To: O&M Provider

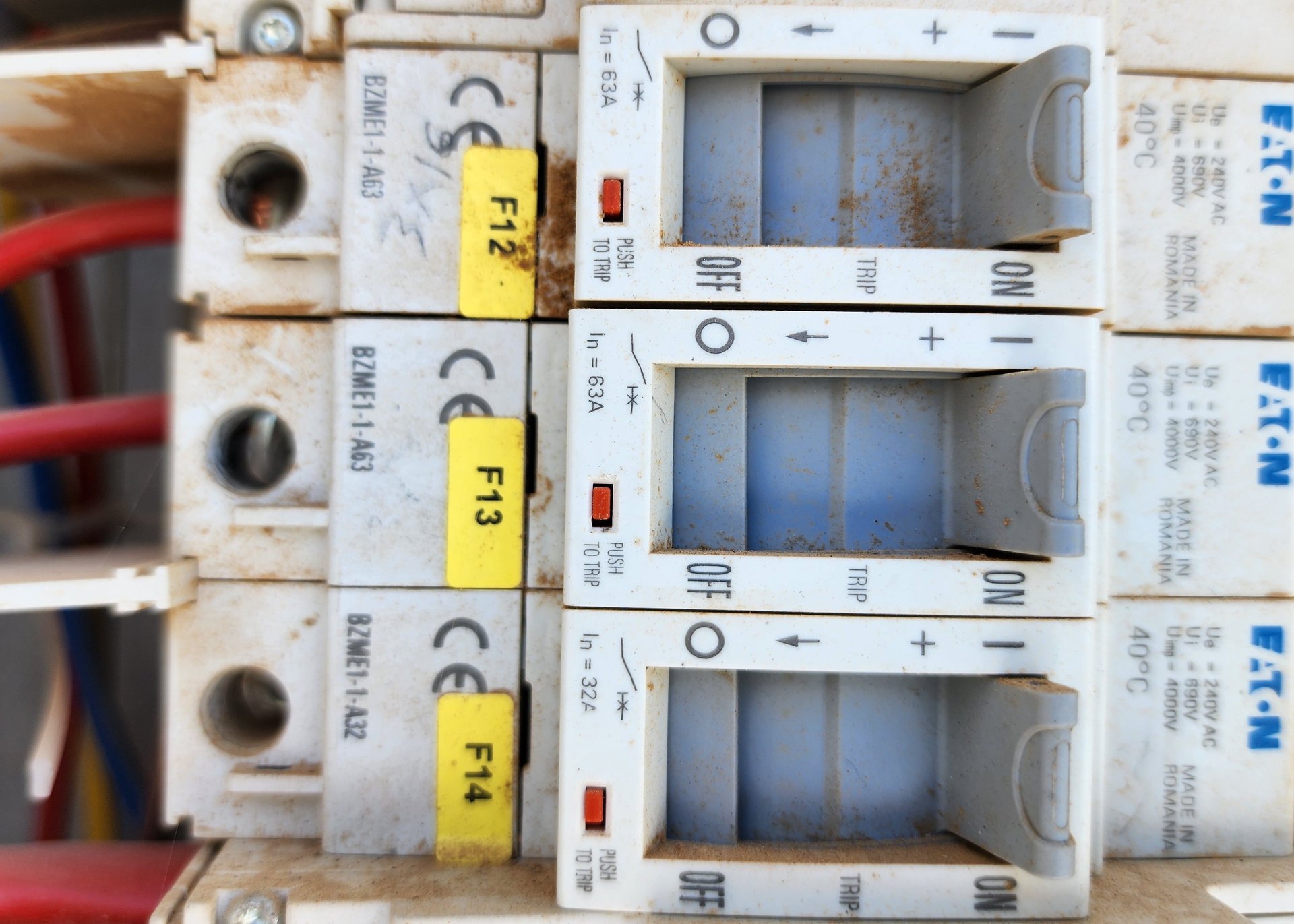

Description: Circuit 1/TP - 16mm2 conductors fed from 125A MCCB. Circuit 2/TP - 10mm2 conductors fed from 63A MCCB. Circuit 4/L1 - 10mm2 conductors fed from 63A MCCB. Circuit 4/L2 - 10mm2 conductors fed from 63A MCCB. Circuit 4/L3 - 2.5mm2 conductors fed from 32A MCCB. Circuit 7/TP - 10mm2 conductors fed from 125A MCCB.
Location: Within SDP, circuits 4/L3 and 11/L3.
Category: Improper Terminations
Equipment: SDP
Occurrences: 4
Imminent Danger: No
Code Source: British Standard
Code Reference: 526: Electrical connections
Action Taken: N/A
SOR Issued To: O&M Provider

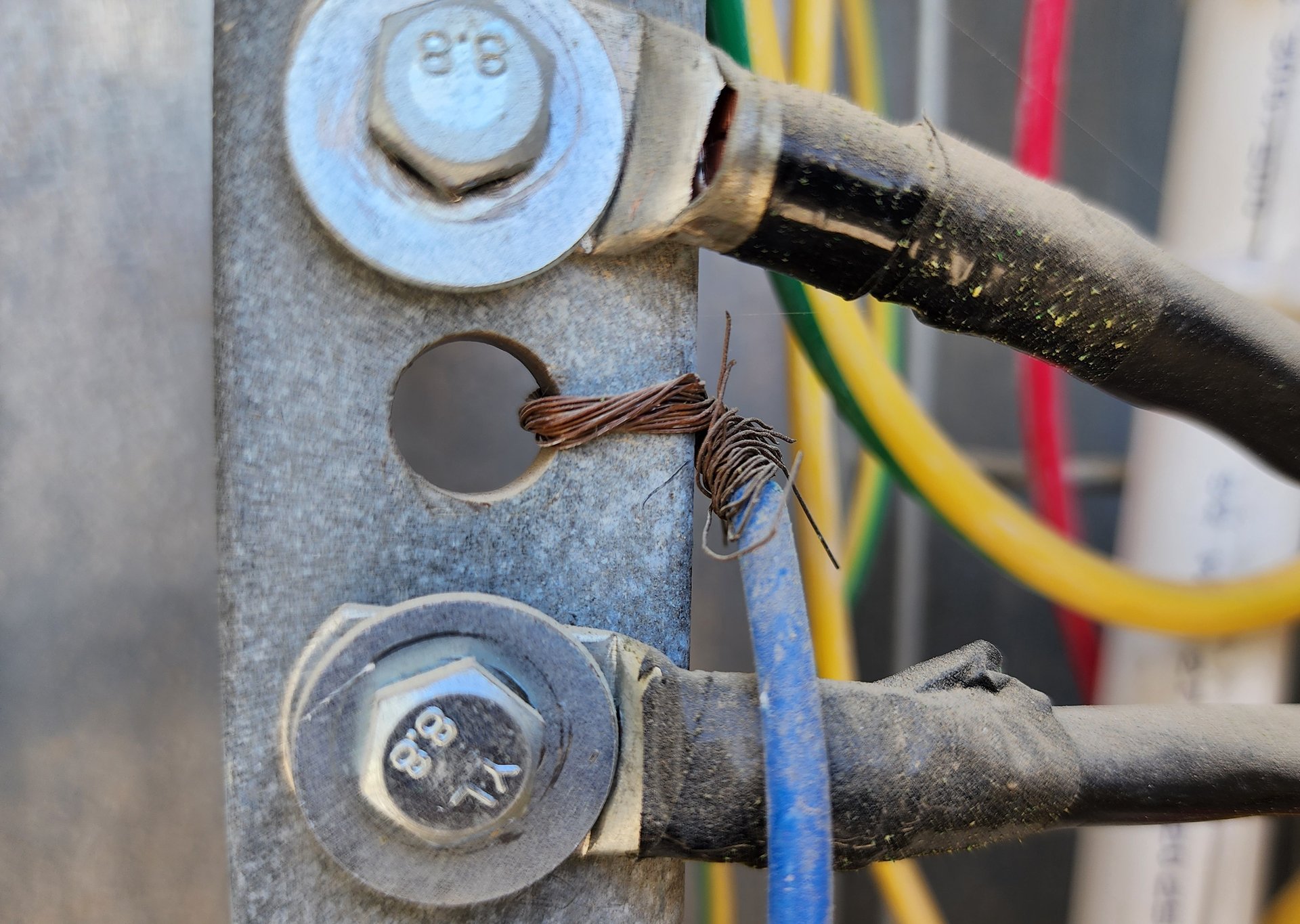

Description: Neutral and CPC conductors have been twisted around the neutral and MET bars to form a connection.
Location: Outgoing circuits 5/TP, 11/L3 and 12/TP.
Category: Poor Workmanship
Equipment: SDP
Occurrences: 3
Imminent Danger: No
Code Source: British Standard
Code Reference: 510: Common rules
Action Taken: N/A
SOR Issued To: O&M Provider

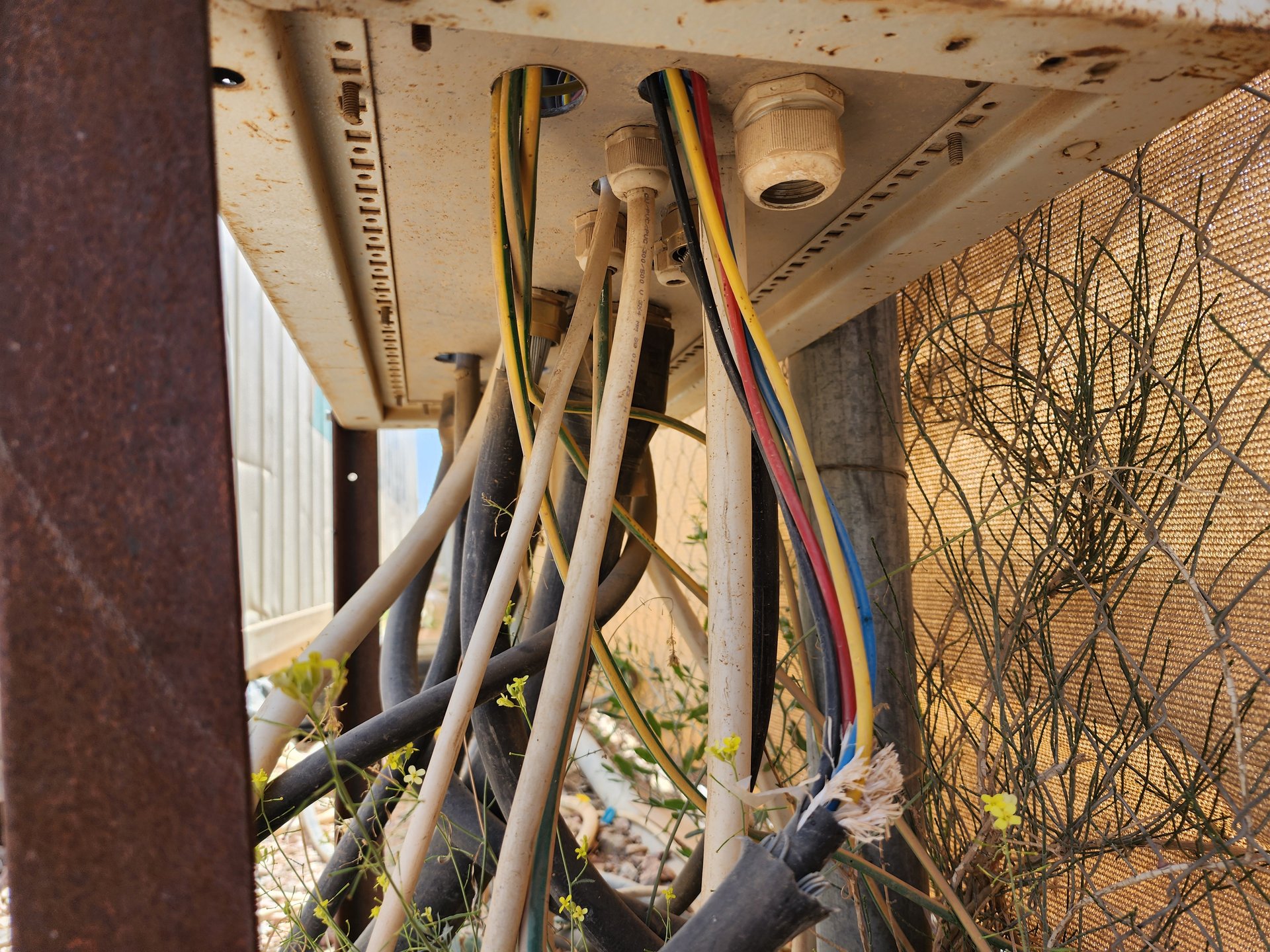

Description: Outgoing circuits 5/TP, 11/L3 and 12/TP have not been glanded.
Signatures & QC
Inspector 1: Jon Sharp
Inspector 2: Giles Vincent-Edwards
QC: David Forbes (approved 12-JUN-2026)
Status History
6
| Date | From | To | Changed By | Notes |
|---|---|---|---|---|
| 12-JUN-2026 | Pending QC | QC Approved | David Forbes | |
| 12-JUN-2026 | QC Rejected | Pending QC | Jonathan Sharp | |
| 11-JUN-2026 | Pending QC | QC Rejected | David Forbes | Deficiency 4; Description; needs changed from Ze reading of 0.85 Ohms exceeds maximum the maximum permitted tolerance of 0.8 Ohms. to Ze reading of 0.85 Ohms exceeds the maximum permitted tolerance of 0.8 Ohms. |
| 11-JUN-2026 | QC Rejected | Pending QC | Jonathan Sharp | |
| 10-JUN-2026 | Pending QC | QC Rejected | David Forbes | Deficiency 4; Description needs corrected to; Ze reading of 0.62 Ohms exceeds the maximum permitted tolerance of 0.8 Ohms. The reading is 0.62 but you have the max as 0.8 is this the right max reading? |
| 10-JUN-2026 | Draft | Pending QC | - |
